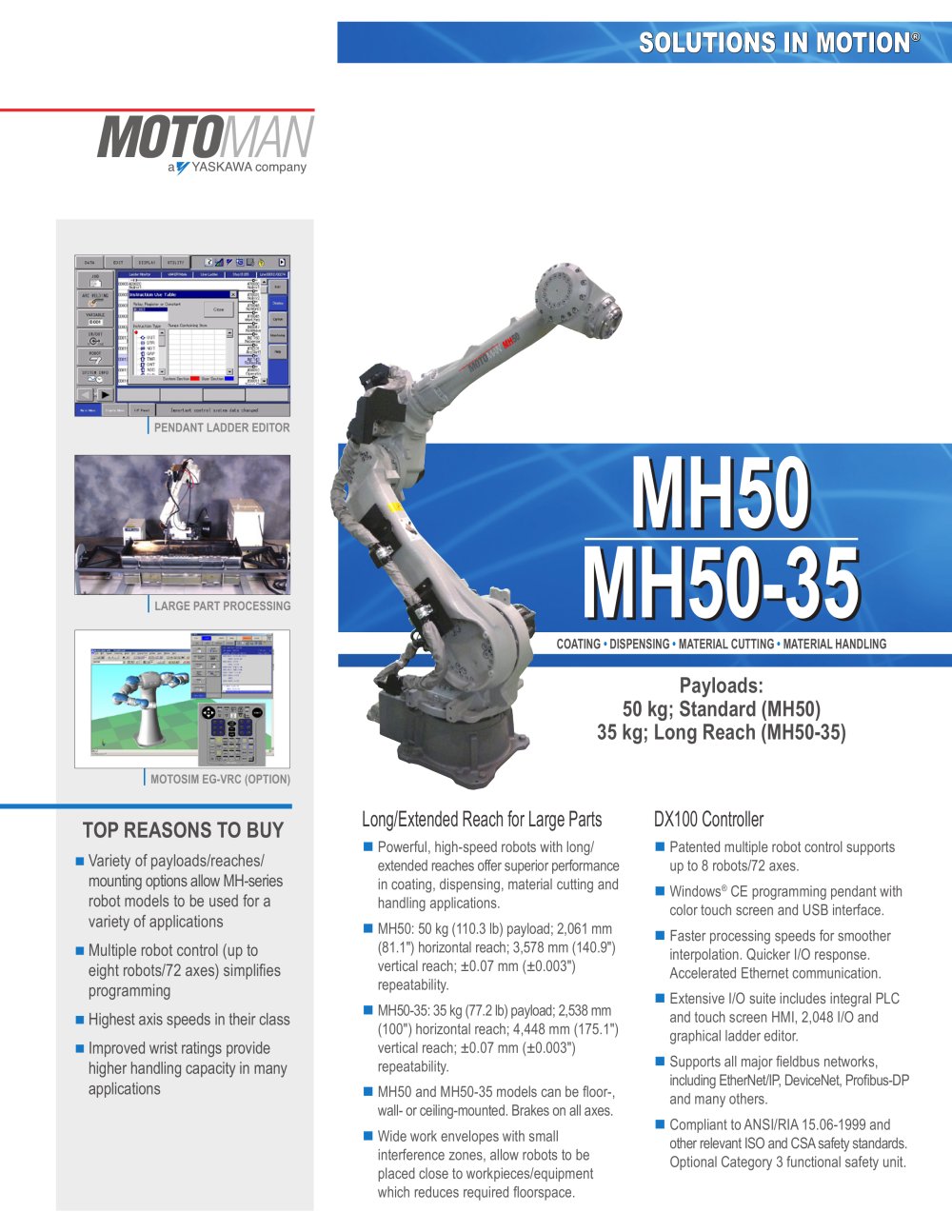

Payloads: 50 kg; Standard (MH50) 35 kg; Long Reach (MH50-35) COATING • DISPENSING • MATERIAL CUTTING • MATERIAL handlingSOLUTIONS IN MOTION® TOP REASONS TO BUY n Variety of payloads/reaches/mounting options allow MH-series robot models to be used for a variety of applications n Multiple robot control (up to eight robots/72 axes) simplifies programming n Highest axis speeds in their class n Improved wrist ratings provide higher handling capacity in many applications DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. n Windows® CE programming pendant with color touch screen and USB interface. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. Long/Extended Reach for Large Parts n Powerful, high-speed robots with long/ extended reaches offer superior performance in coating, dispensing, material cutting and handling applications. n MH50: 50 kg (110.3 lb) payload; 2,061 mm (81.1") horizontal reach; 3,578 mm (140.9") vertical reach; ±0.07 mm (±0.003") repeatability. n MH50-35: 35 kg (77.2 lb) payload; 2,538 mm (100") horizontal reach; 4,448 mm (175.1") vertical reach; ±0.07 mm (±0.003") repeatability. n MH50 and MH50-35 models can be floor-, wall- or ceiling-mounted. Brakes on all axes. n Wide work envelopes with small interference zones, allow robots to be placed close to workpieces/equipment which reduces required floorspace. PENDANT LADDER EDITOR LARGE PART PROCESSING MOTOSIM EG-VRC (OPTION) MH50-35 MH50
