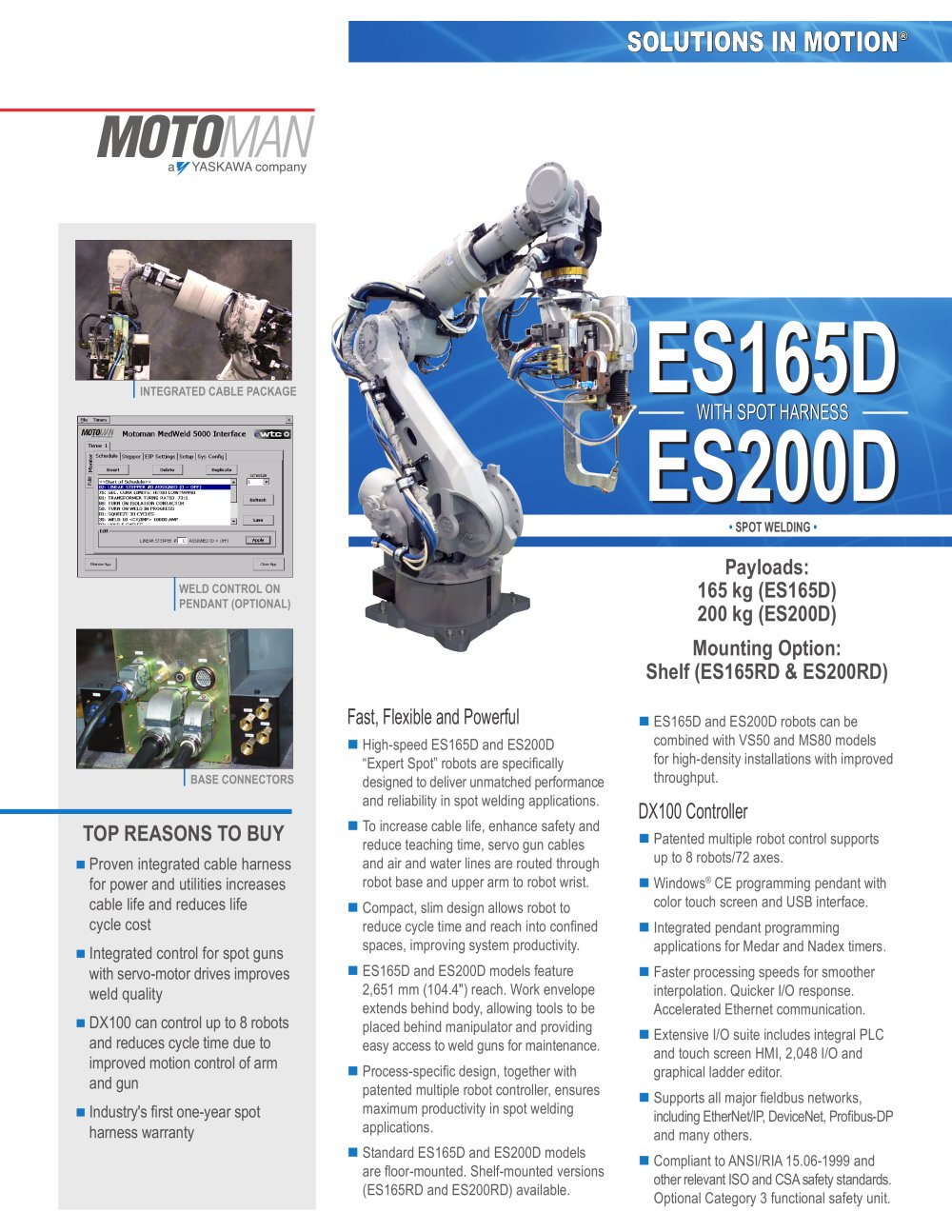

ES200D • SPOT WELDING •SOLUTIONS IN MOTION® Fast, Flexible and Powerful n High-speed ES165D and ES200D “Expert Spot” robots are specifically designed to deliver unmatched performance and reliability in spot welding applications. n To increase cable life, enhance safety and reduce teaching time, servo gun cables and air and water lines are routed through robot base and upper arm to robot wrist. n Compact, slim design allows robot to reduce cycle time and reach into confined spaces, improving system productivity. n ES165D and ES200D models feature 2,651 mm (104.4") reach. Work envelope extends behind body, allowing tools to be placed behind manipulator and providing easy access to weld guns for maintenance. n Process-specific design, together with patented multiple robot controller, ensures maximum productivity in spot welding applications. n Standard ES165D and ES200D models are floor-mounted. Shelf-mounted versions (ES165RD and ES200RD) available. Payloads: 165 kg (ES165D) 200 kg (ES200D) Mounting Option: Shelf (ES165RD & ES200RD) Top Reasons toto buy n Proven integrated cable harness for power and utilities increases cable life and reduces life cycle cost n Integrated control for spot guns with servo-motor drives improves weld quality n DX100 can control up to 8 robots and reduces cycle time due to improved motion control of arm and gun n Industry's first one-year spot harness warranty n ES165D and ES200D robots can be combined with VS50 and MS80 models for high-density installations with improved throughput. DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. n Windows® CE programming pendant with color touch screen and USB interface. n Integrated pendant programming applications for Medar and Nadex timers. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. BA SE CONNECTORS INTEGRATED CABLE PACKAGE WELD CONTROL ON PENDANT (OPTIONAL) ES165D ES165DWITH WITH SPOT HARNESS
