EASYLOAD EASYLOAD

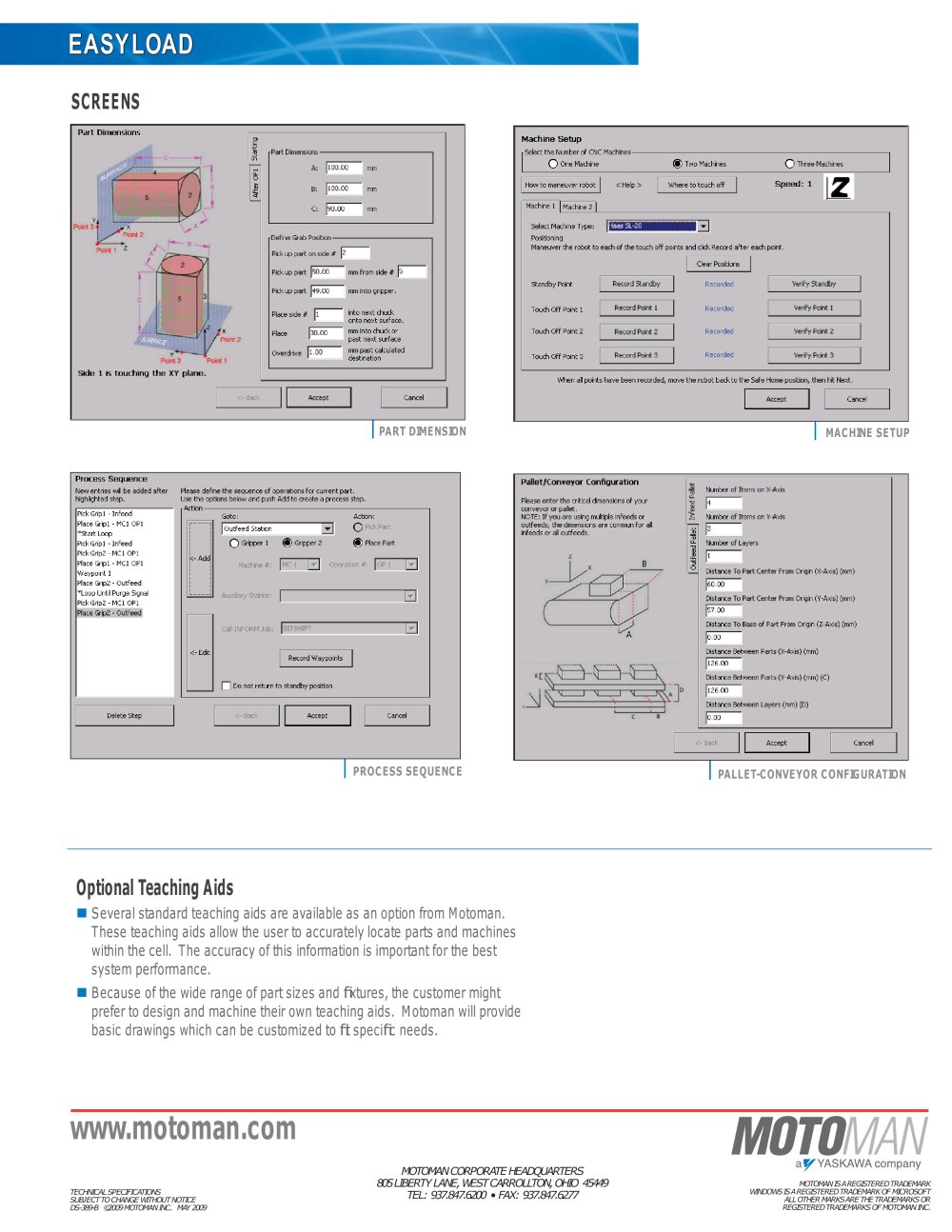

SCREENS PART DIMENSION PROCESS SEQUENCE MACHINE SETUP PALLET-CONVEYOR CONFIGURATION Optional Teaching Aids Several standard teaching aids are available as an option from Motoman. These teaching aids allow the user to accurately locate parts and machines within the cell. The accuracy of this information is important for the best system performance. Because of the wide range of part sizes and xtures, the customer might prefer to design and machine their own teaching aids. Motoman will provide basic drawings which can be customized to t speci c needs.

Motoman EasyLoad Machine Tending Software - 14474 www.motoman.com

MOTOMAN CORPORATE HEADQUARTERS805 LIBERTY LANE, WEST CARROLLTON, OHIO 45449TEL: 937.847.6200 ? FAX: 937.847.6277 TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-389-B ©2009 MOTOMAN INC. MAY 2009MOTOMAN IS A REGISTERED TRADEMARKWINDOWS IS A REGISTERED TRADEMARK OF MICROSOFTALL OTHER MARKS ARE THE TRADEMARKS OR REGISTERED TRADEMARKS OF MOTOMAN INC.
