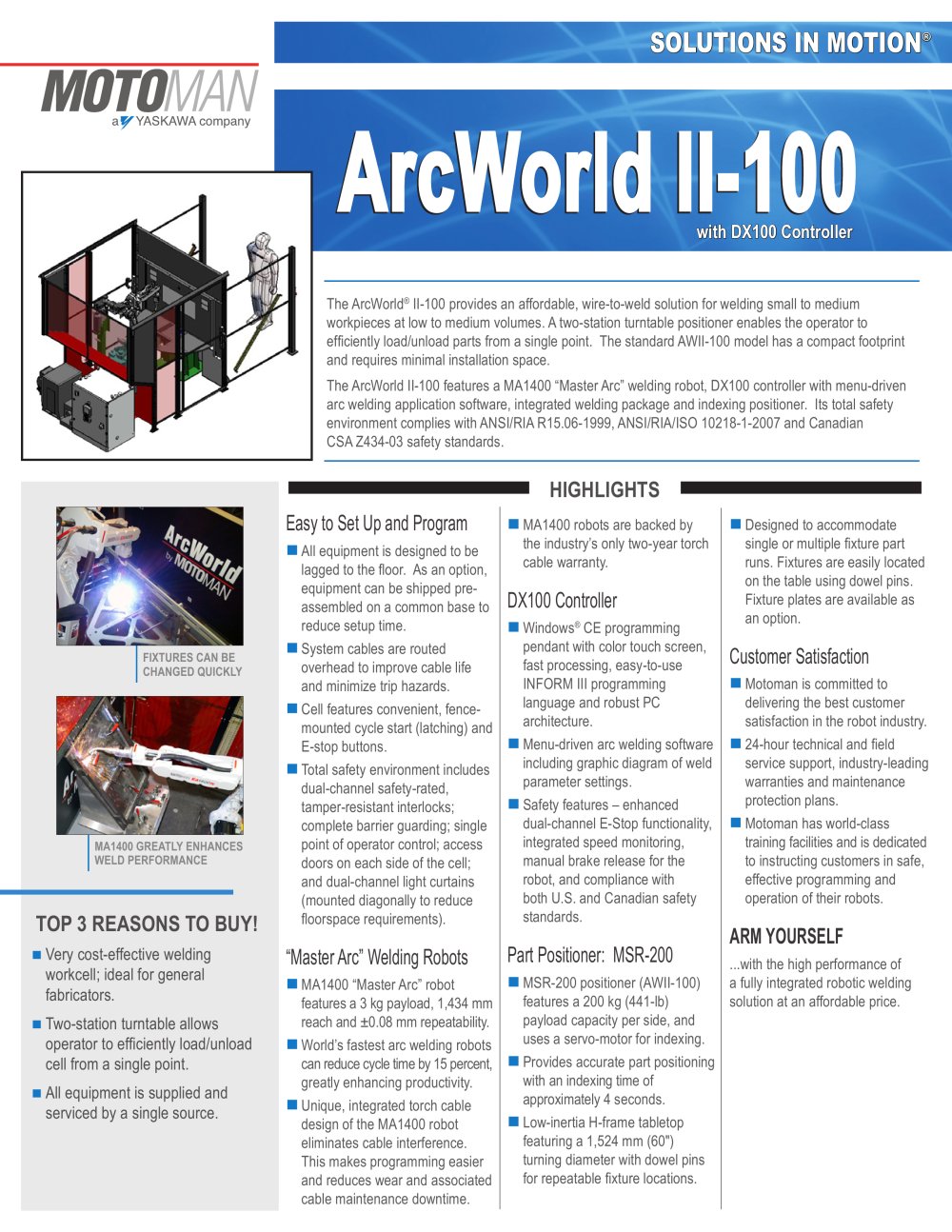

Motoman ArcWorld II-100 with DX100 Controller - 14474 ArcWorld II-100 ArcWorld II-100

with DX100 Controller

The ArcWorld
® II-100 provides an affordable, wire-to-weld solution for welding small to medium workpieces at low to medium volumes. A two-station turntable positioner enables the operator to efficiently load/unload parts from a single point. The standard AWII-100 model has a compact footprint and requires minimal installation space. The ArcWorld II-100 features a MA1400 “Master Arc” welding robot, DX100 controller with menu-driven arc welding application software, integrated welding package and indexing positioner. Its total safety environment complies with ANSI/RIA R15.06-1999, ANSI/RIA/ISO 10218-1-2007 and Canadian CSA Z434-03 safety standards.

HIGHLIGHTS TOP 3 REASONS TO BUY! Easy to Set Up and Program

MA1400 robots are backed by the industry’s only two-year torch cable warranty. Designed to accommodate single or multiple fixture part runs. Fixtures are easily located on the table using dowel pins. Fixture plates are available as an option. All equipment is designed to be lagged to the floor. As an option, equipment can be shipped pre- assembled on a common base to reduce setup time.

DX100 Controller

Windows
® CE programming pendant with color touch screen, fast processing, easy-to-use INFORM III programming language and robust PC architecture.
FIXTURES CAN BE CHANGED QUICKLY System cables are routed overhead to improve cable life and minimize trip hazards.

Customer Satisfaction

Motoman is committed to delivering the best customer satisfaction in the robot industry. Cell features convenient, fence-mounted cycle start (latching) and E-stop buttons. Menu-driven arc welding software including graphic diagram of weld parameter settings. 24-hour technical and field service support, industry-leading warranties and maintenance protection plans. Total safety environment includes dual-channel safety-rated, tamper-resistant interlocks; complete barrier guarding; single point of operator control; access doors on each side of the cell; and dual-channel light curtains (mounted diagonally to reduce floorspace requirements). Safety features – enhanced dual-channel E-Stop functionality, integrated speed monitoring, manual brake release for the robot, and compliance with both U.S. and Canadian safety standards. Motoman has world-class training facilities and is dedicated to instructing customers in safe, effective programming and operation of their robots.
MA1400 GREATLY ENHANCES WELD PERFORMANCE

ARM YOURSELF

Very cost-effective welding workcell; ideal for general fabricators.

“Master Arc” Welding Robots Part Positioner: MSR-200

...with the high performance of a fully integrated robotic welding solution at an affordable price. MA1400 “Master Arc” robot features a 3 kg payload, 1,434 mm reach and ±0.08 mm repeatability. MSR-200 positioner (AWII-100) features a 200 kg (441-lb) payload capacity per side, and uses a servo-motor for indexing.

Two-station turntable allows operator to efficiently load/unload cell from a single point.

World’s fastest arc welding robots can reduce cycle time by 15 percent, greatly enhancing productivity. Provides accurate part positioning with an indexing time of approximately 4 seconds.

All equipment is supplied and serviced by a single source.

Unique, integrated torch cable design of the MA1400 robot eliminates cable interference. This makes programming easier and reduces wear and associated cable maintenance downtime. Low-inertia H-frame tabletop featuring a 1,524 mm (60") turning diameter with dowel pins for repeatable fixture locations.
