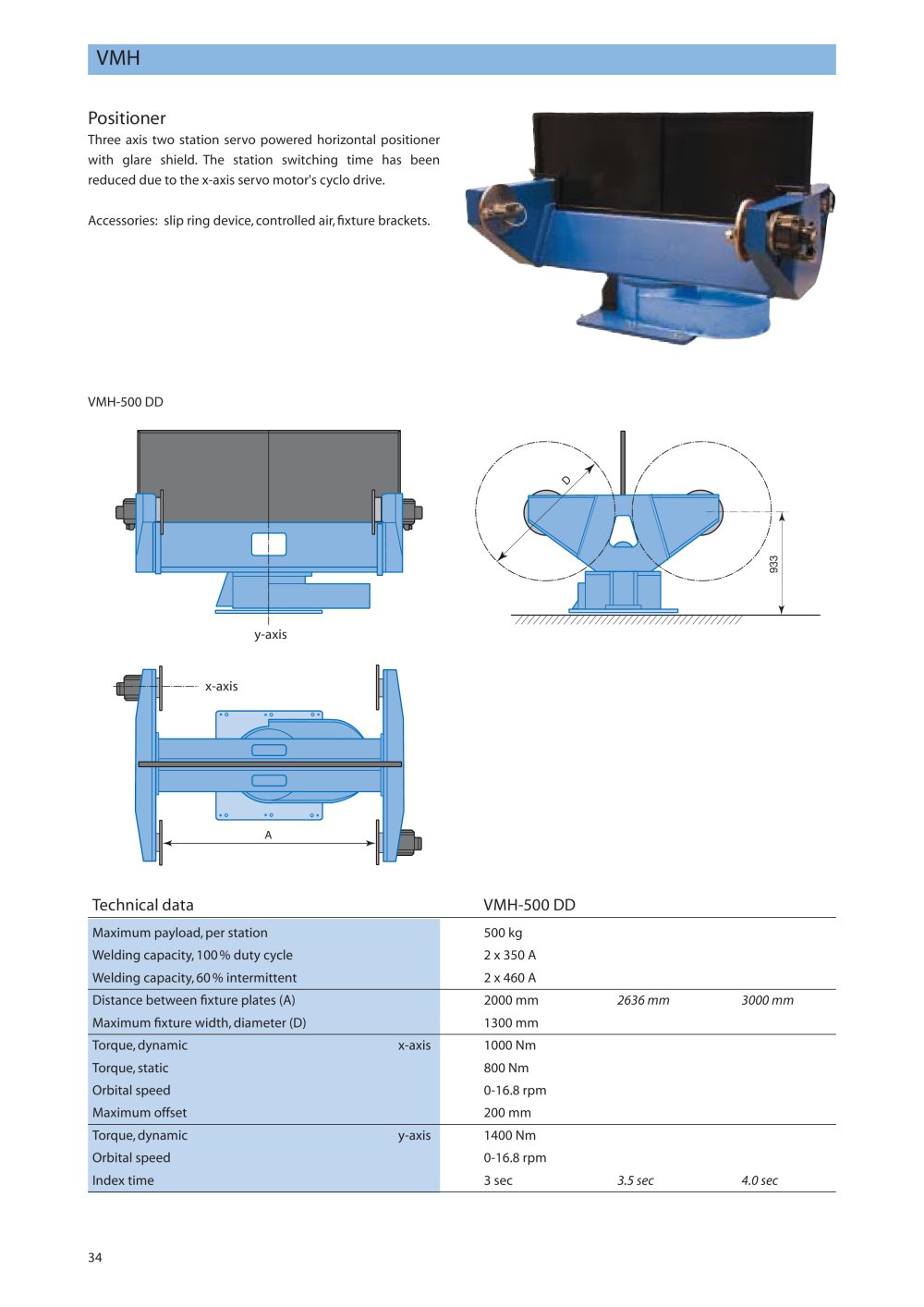

VMH

Positioner

Three axis two station servo powered horizontal positioner with glare shield. The station switching time has been reduced due to the x-axis servo motor's cyclo drive.Accessories: slip ring device, controlled air, fi xture brackets. VMH-500 DD
D 933 x-axisy-axis
A 3.5 sec 4.0 sec

Technical data VMH-500 DD

2636 mm 3000 mm Maximum payload, per station 500 kgWelding capacity, 100 % duty cycle 2 x 350 A Welding capacity, 60 % intermittent 2 x 460 A Distance between fi xture plates (A) 2000 mm Maximum fi xture width, diameter (D) 1300 mmTorque, dynamic x-axis 1000 NmTorque, static 800 Nm Orbital speed 0-16.8 rpm Maximum offset 200 mm Torque, dynamic y-axis 1400 Nm Orbital speed 0-16.8 rpm Index time 3 sec 34
