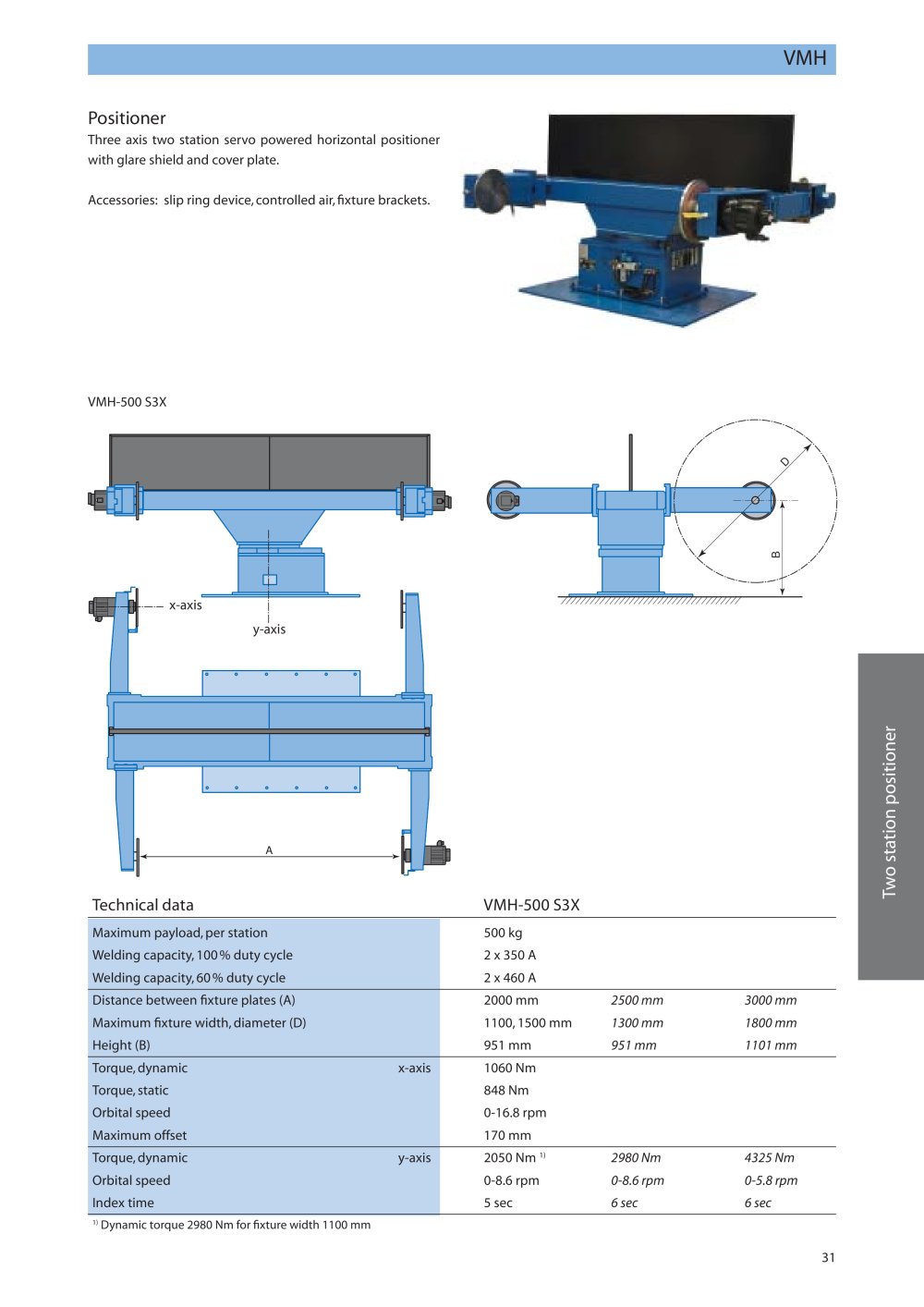

VMH

Positioner

Three axis two station servo powered horizontal positioner with glare shield and cover plate.Accessories: slip ring device, controlled air, fi xture brackets. y-axisx-axis VMH-500 S3X
D B A

Technical data VMH-500 S3X

Two station positioner 2500 mm 3000 mm Maximum fi xture width, diameter (D) 1100, 1500 mm Maximum payload, per station 500 kgWelding capacity, 100 % duty cycle 2 x 350 A Welding capacity, 60 % duty cycle 2 x 460 A Distance between fi xture plates (A) 2000 mm 1300 mm 1800 mm Height (B) 951 mm 951 mm 1101 mm Torque, dynamic x-axis 1060 Nm Torque, static 848 Nm Orbital speed 0-16.8 rpm Maximum offset 170 mm Torque, dynamic y-axis 2050 Nm
1) 2980 Nm 4325 Nm Orbital speed 0-8.6 rpm 0-8.6 rpm 0-5.8 rpm Index time 5 sec 6 sec 6 sec
1) Dynamic torque 2980 Nm for fi xture width 1100 mm 31
