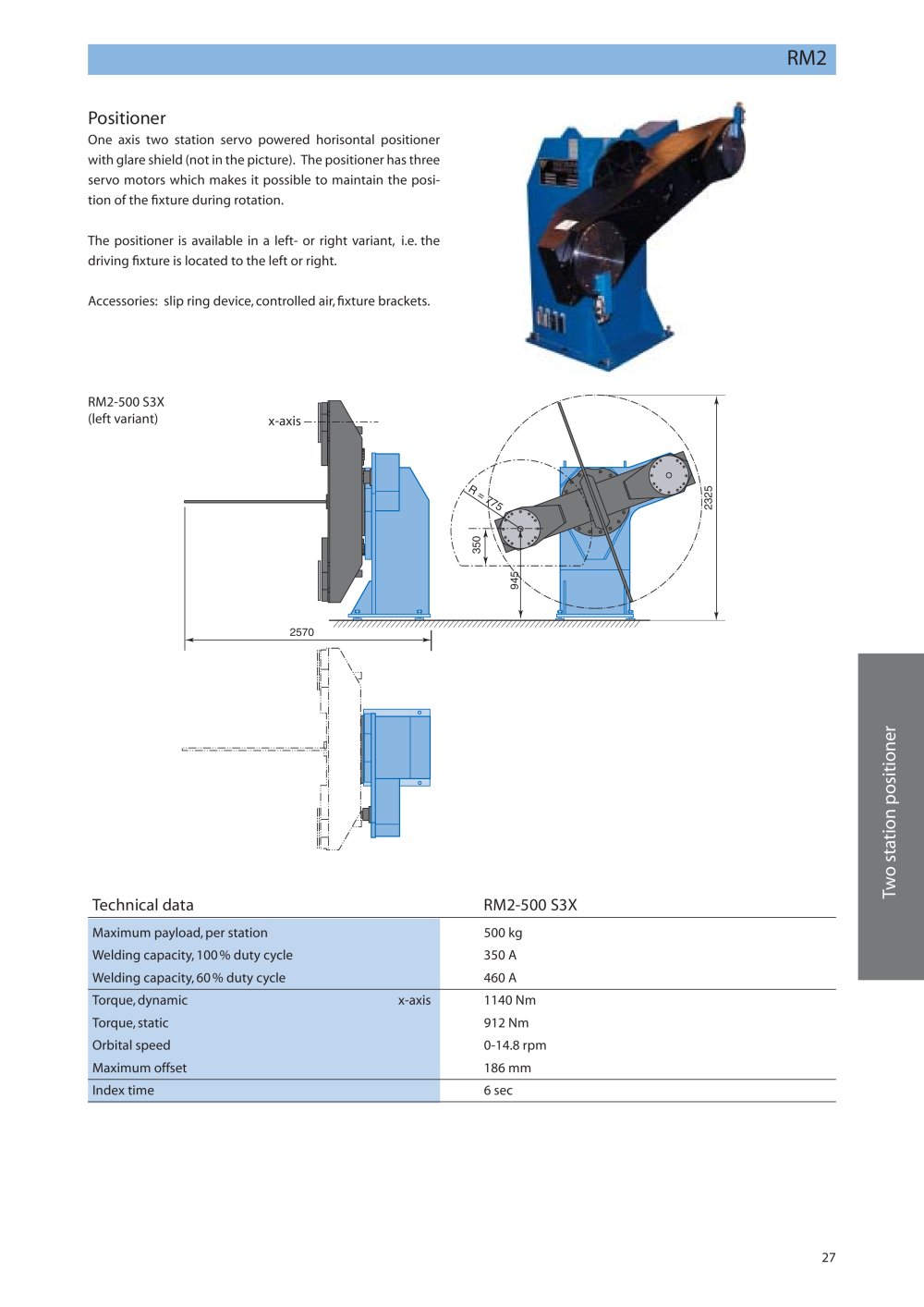

RM2 Positioner

One axis two station servo powered horisontal positioner with glare shield (not in the picture). The positioner has three servo motors which makes it possible to maintain the posi- tion of the fi xture during rotation.The positioner is available in a left- or right variant, i.e. the driving fi xture is located to the left or right.Accessories: slip ring device, controlled air, fi xture brackets.x-axis

R = 775

2325 350 945

2570

Technical data RM2-500 S3X

Two station positioner

Maximum payload, per station 500 kgWelding capacity, 100 % duty cycle 350 A Welding capacity, 60 % duty cycle 460 A Torque, dynamic x-axis 1140 Nm Torque, static 912 Nm Orbital speed 0-14.8 rpmMaximum offset 186 mm Index time 6 sec RM2-500 S3X (left variant) 27
