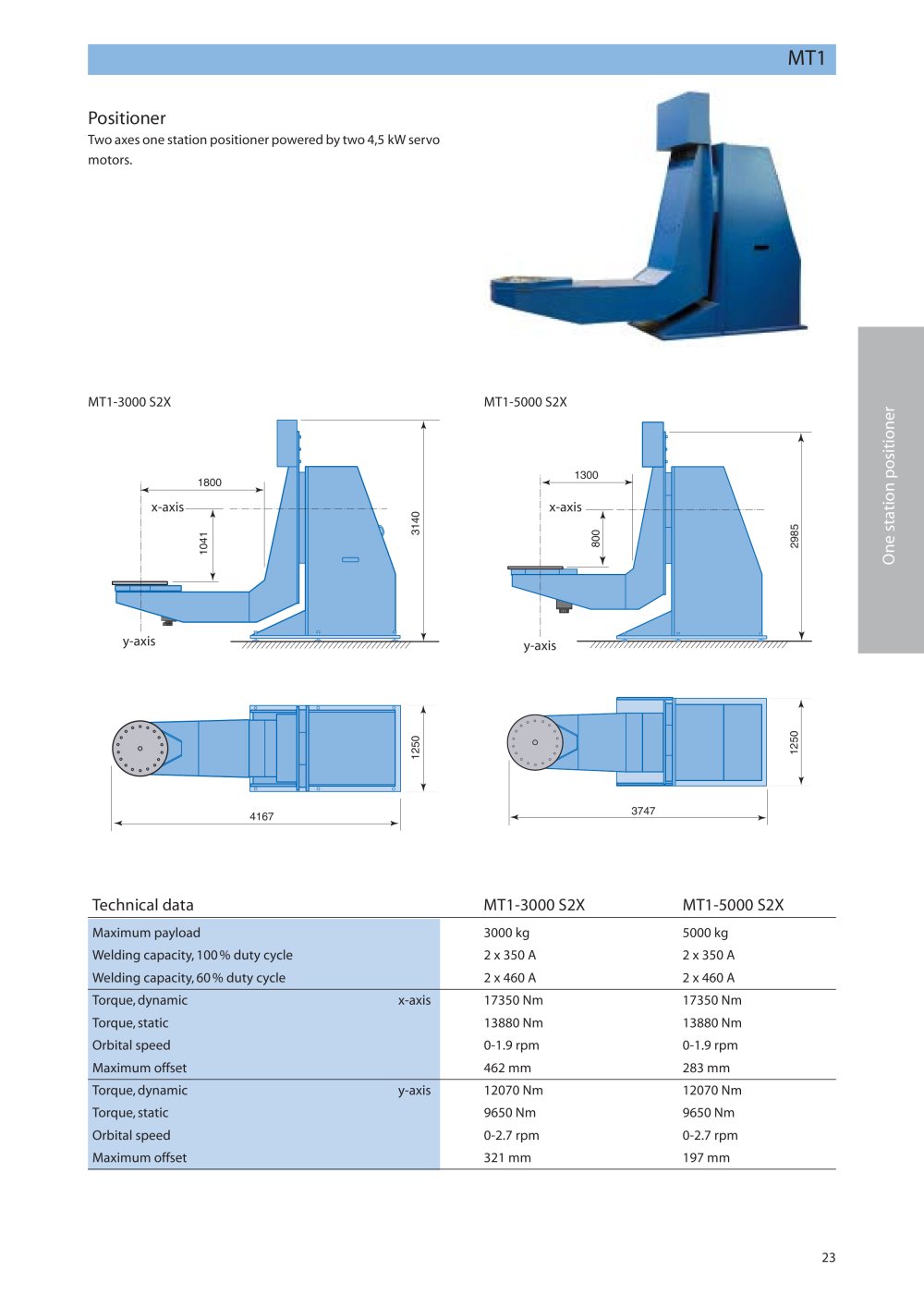

MT1 Positioner Two axes one station positioner powered by two 4,5 kW industrial servo motors. MT1-3000 S2XMT1-5000 S2X 1800 1300 3140 800 2985 1041 One station positioner 1250 1250 4167 3747 Technical data MT1-3000 S2X MT1-5000 S2X Maximum payload 3000 kg 5000 kgWelding capacity, 100 % duty cycle 2 x 350 A 2 x 350 A
Welding capacity, 60 % duty cycle 2 x 460 A 2 x 460 A
Torque, dynamic x-axis 17350 Nm 17350 Nm Torque, static 13880 Nm 13880 Nm Orbital speed 0-1.9 rpm 0-1.9 rpm
Maximum offset 462 mm 283 mm Torque, dynamic y-axis 12070 Nm 12070 Nm Torque, static 9650 Nm 9650 Nm Orbital speed 0-2.7 rpm 0-2.7 rpm
Maximum offset 321 mm 197 mm
x-axisy-axisy-axisx-axis 23
|
