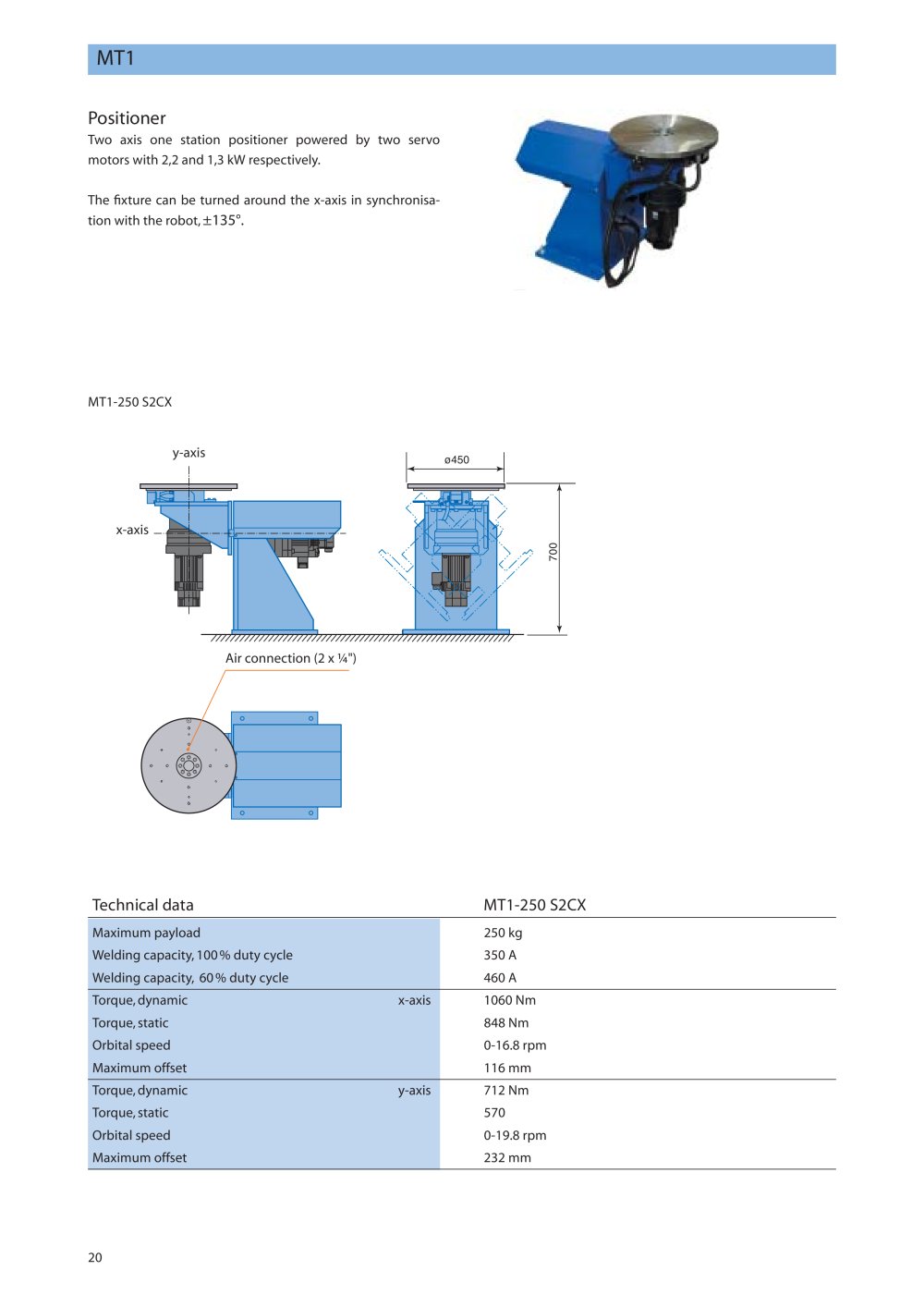

MT1

Positioner

Two axis one station positioner powered by two servo motors with 2,2 and 1,3 kW respectively.The fi xture can be turned around the x-axis in synchronisa-tion with the robot,

±135°.

MT1-250 S2CX
ø450 700 Air connection (2 x ¼")

Technical data MT1-250 S2CX

Maximum payload 250 kg Welding capacity, 100 % duty cycle 350 A Welding capacity, 60 % duty cycle 460 A Torque, dynamic x-axis 1060 NmTorque, static 848 NmOrbital speed 0-16.8 rpm Maximum offset 116 mm Torque, dynamic y-axis 712 Nm Torque, static 570 Orbital speed 0-19.8 rpm Maximum offset 232 mm x-axisy-axis 20
