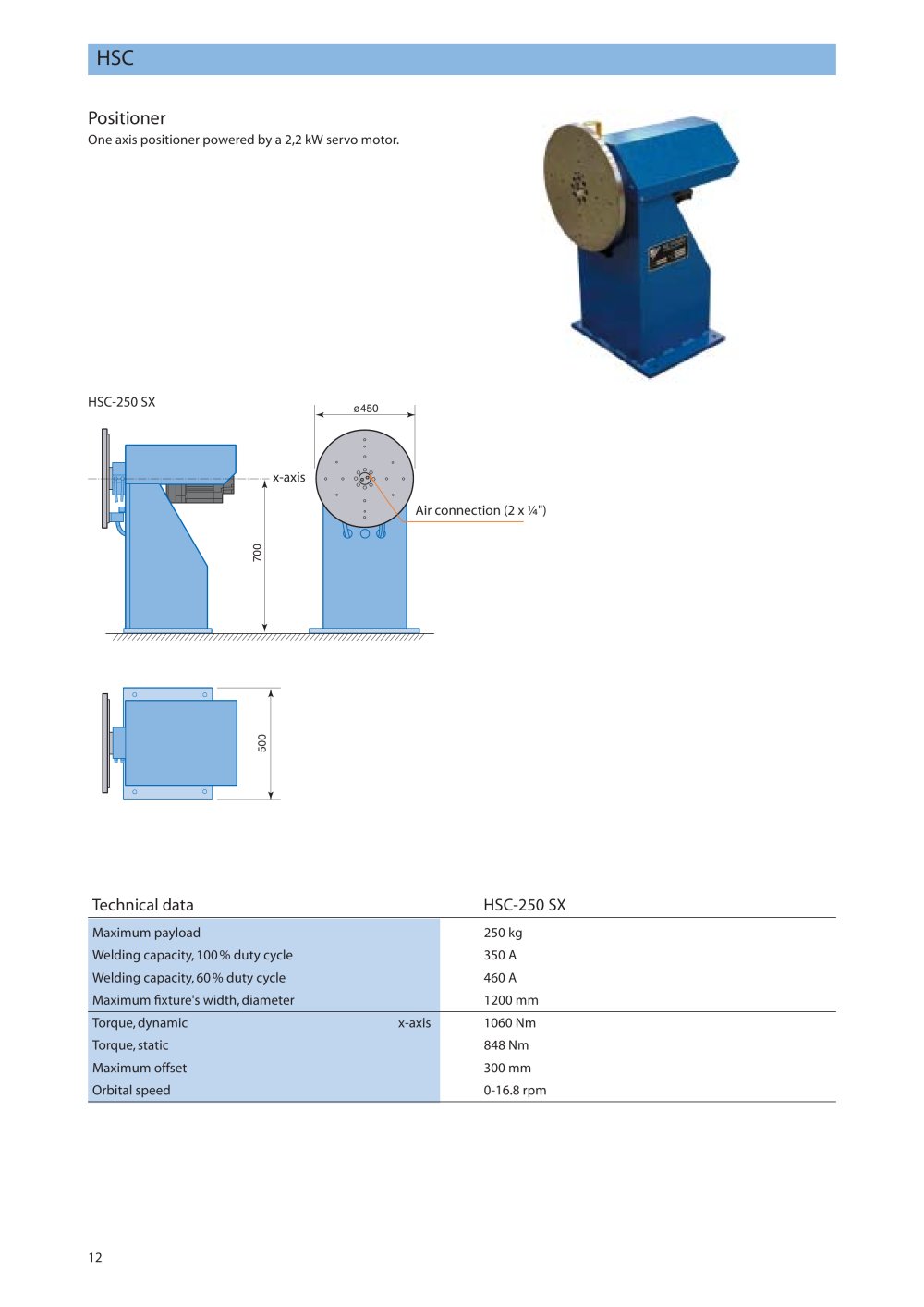

HSC
Positioner
One axis positioner powered by a 2,2 kW
industrial servo motor. HSC-250 SX
ø450 700 500 Technical data HSC-250 SX
Maximum payload 250 kgWelding capacity, 100 % duty cycle 350 A
Welding capacity, 60 % duty cycle 460 A
Maximum fi xture's width, diameter 1200 mm Torque, dynamic x-axis 1060 NmTorque, static 848 Nm Maximum offset 300 mm Orbital speed 0-16.8 rpm x-axisAir connection (2 x ¼") 12
