9

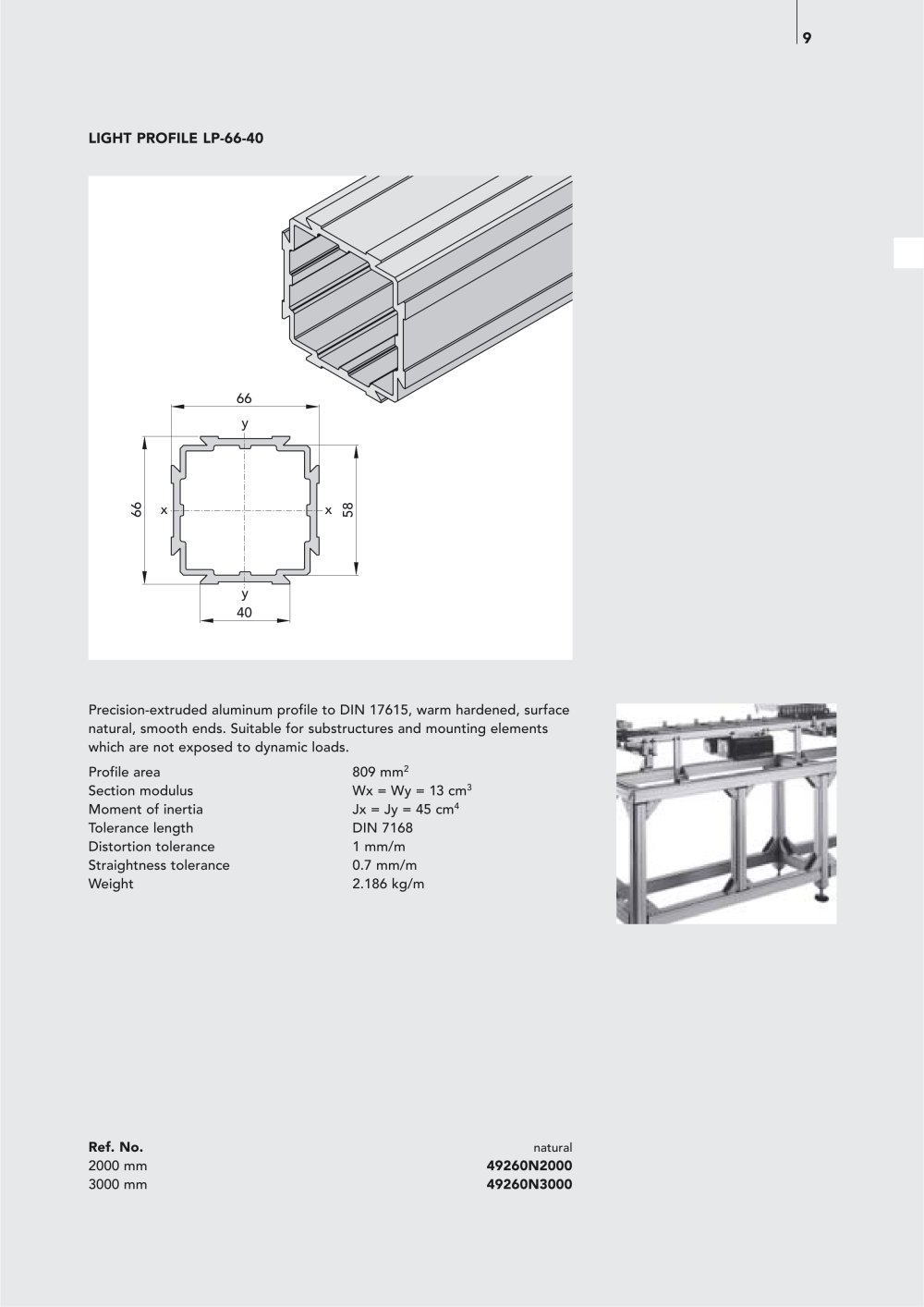

Precision-extruded aluminum profile to DIN 17615, warm hardened, surface
natural, smooth ends. Suitable for substructures and mounting elements
which are not exposed to dynamic loads.
Profile area 809 mm2
Section modulus Wx = Wy = 13 cm3
Moment of inertia Jx = Jy = 45 cm4
Tolerance length DIN 7168
Distortion tolerance 1 mm/m
Straightness tolerance 0.7 mm/m
Weight 2.186 kg/m
Ref. No. natural
2000 mm 49260N2000
3000 mm 49260N3000
66
66
40
58
x x
y
y
LIGHT PROFILE LP-66-40
