29
56*
82
25
7. 5 M5
34
10
10
34
25
R24
36*
82
* in the clamped state
Bracket for connecting medium loads at 90° with relief for cables – aluminum,
anodized natural.
Resistance to displacement 3000 N
Required torque 6 Nm
Perpendicularity of
the clamping grooves
(referred to a length of 48 mm) ± 0.04 mm
Weight 0.200 kg
natural
Ref. No. 46565N

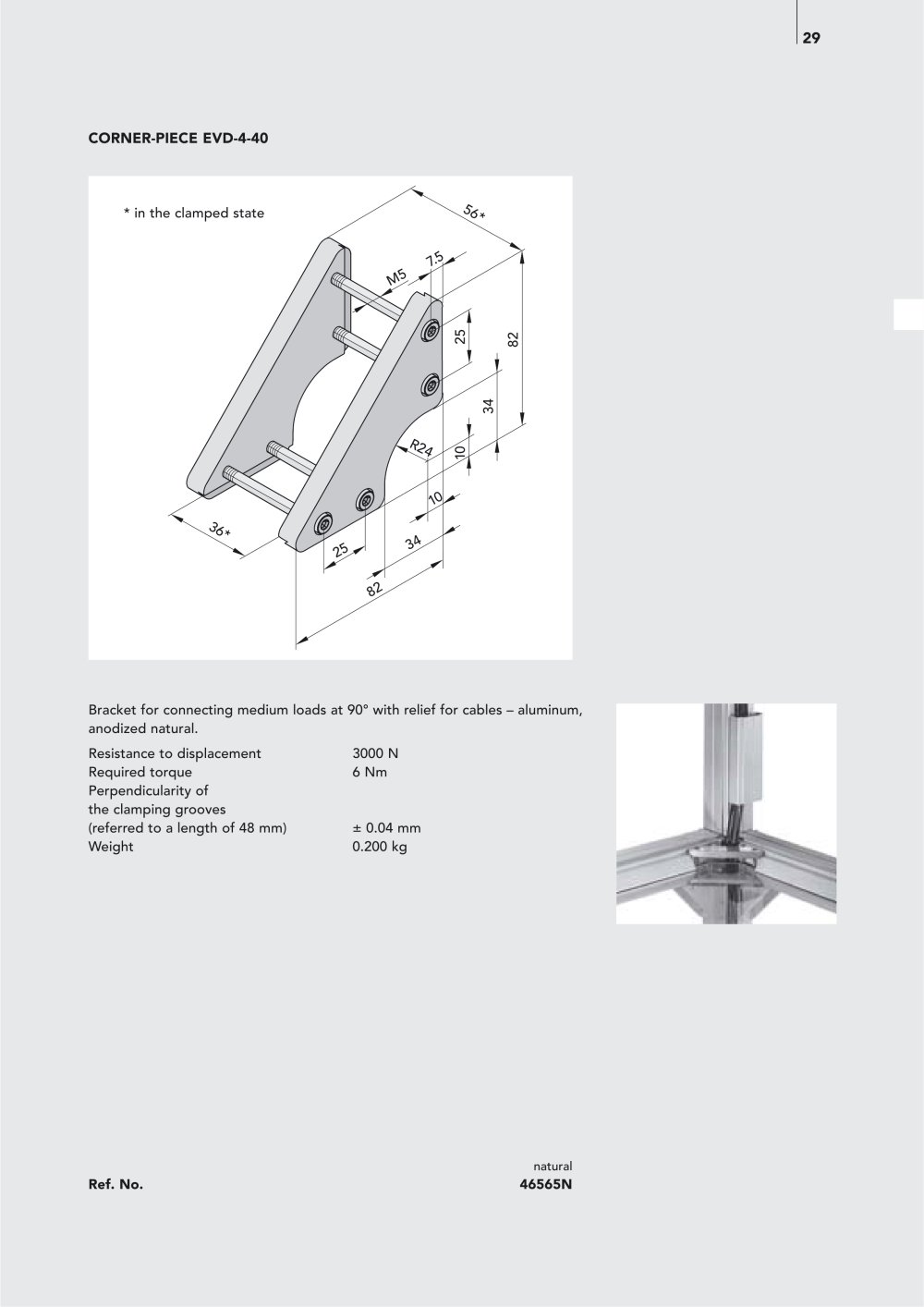

CORNER-PIECE EVD-4-40
