19
M3
20
56*
36*
9. 6 10
8
16
* in the clamped state
Standard connector for joining dovetail with medium loads – aluminum,
anodized natural.
Resistance to displacement
(two profiles against one another) 1350 N
Required torque 6 Nm
Parallelism of the clamped surfaces ± 0.02 mm
Weight 0.020 kg
natural
Ref. No. 41190N

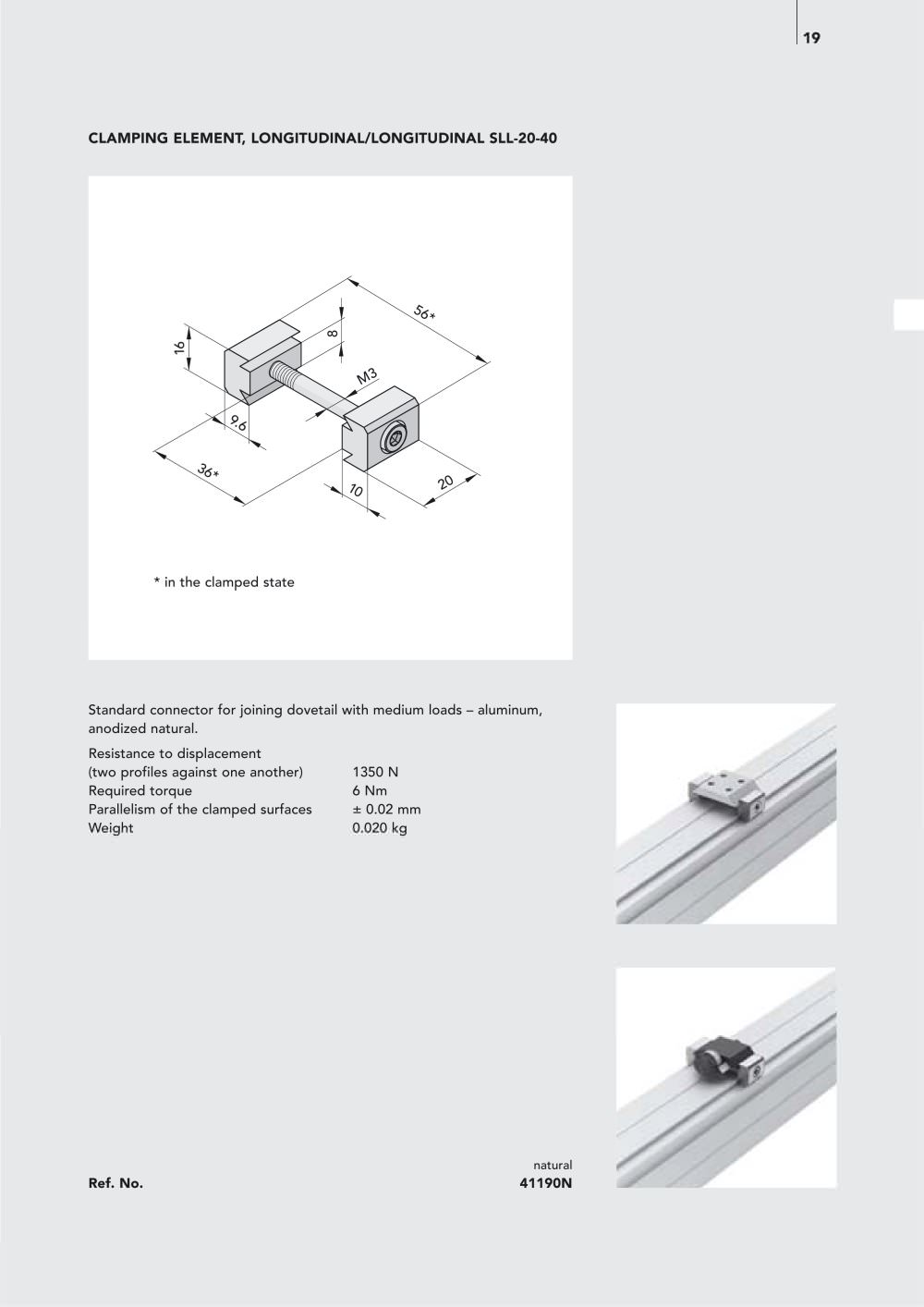

CLAMPING ELEMENT, LONGITUDINAL/LONGITUDINAL SLL-20-40
