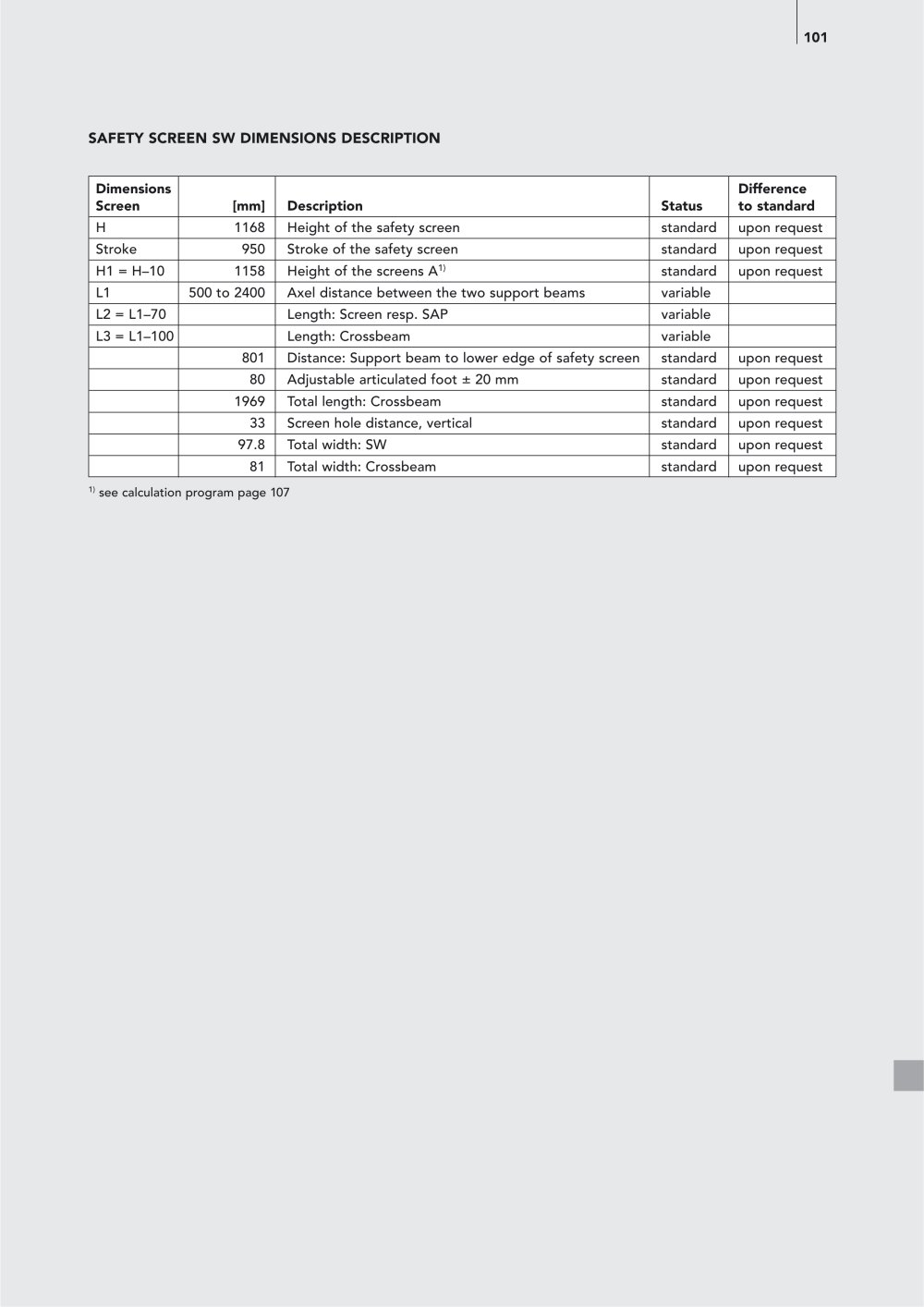

101 SAFETY SCREEN SW DIMENSIONS DESCRIPTION Dimensions Difference Screen [mm] Description Status to standard H 1168 Height of the safety screen standard upon request Stroke 950 Stroke of the safety screen standard upon request H1 = H–10 1158 Height of the screens A1) standard upon request L1 500 to 2400 Axel distance between the two support beams variable L2 = L1–70 Length: Screen resp. SAP variable L3 = L1–100 Length: Crossbeam variable 801 Distance: Support beam to lower edge of safety screen standard upon request 80 Adjustable articulated foot ± 20 mm standard upon request 1969 Total length: Crossbeam standard upon request 33 Screen hole distance, vertical standard upon request 97.8 Total width: SW standard upon request 81 Total width: Crossbeam standard upon request 1) see calculation program page 107
