10

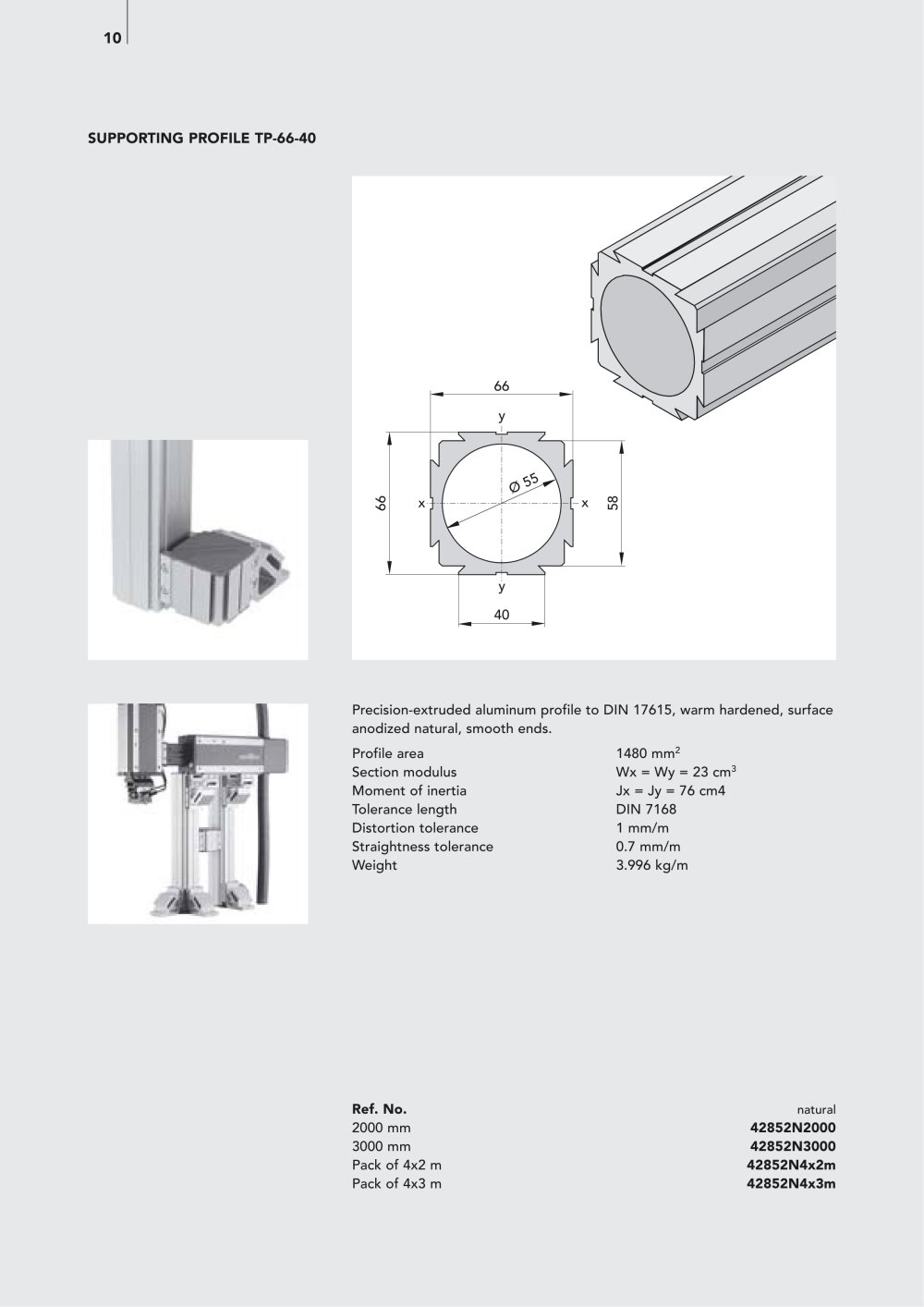

Precision-extruded aluminum profile to DIN 17615, warm hardened, surface
anodized natural, smooth ends.
Profile area 1480 mm2
Section modulus Wx = Wy = 23 cm3
Moment of inertia Jx = Jy = 76 cm4
Tolerance length DIN 7168
Distortion tolerance 1 mm/m
Straightness tolerance 0.7 mm/m
Weight 3.996 kg/m
Ref. No. natural
2000 mm 42852N2000
3000 mm 42852N3000
Pack of 4x2 m 42852N4x2m
Pack of 4x3 m 42852N4x3m
x x
y
y
66
58
66
40
Ř 55
SUPPORTING PROFILE TP-66-40
