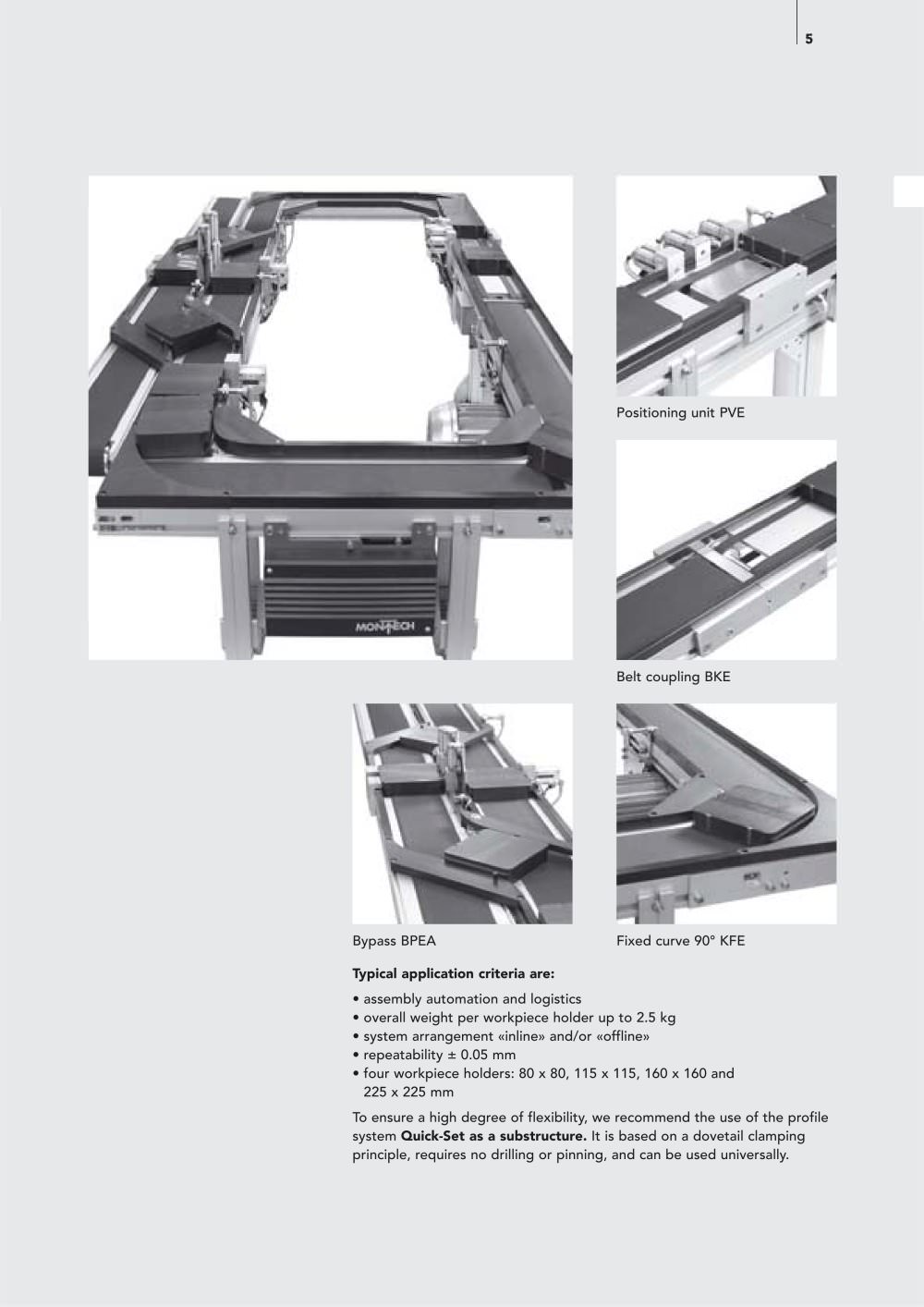

5 Bypass BPEAFixed curve 90° KFE
Positioning unit PVE
Belt coupling BKE Typical application criteriaare: • assembly automation and logistics• overall weight per workpiece holder up to 2.5 kg• system arrangement «inline» and/or «offline»
• repeatability± 0.05 mm • four workpiece holders: 80 x 80, 115 x 115, 160 x 160 and 225 x 225 mm To ensure a high degree of flexibility, we recommend the use of the profilesystem Quick-Set as a substructure. It is based on a dovetail clampingprinciple, requires no drilling or pinning, and can be used universally.
