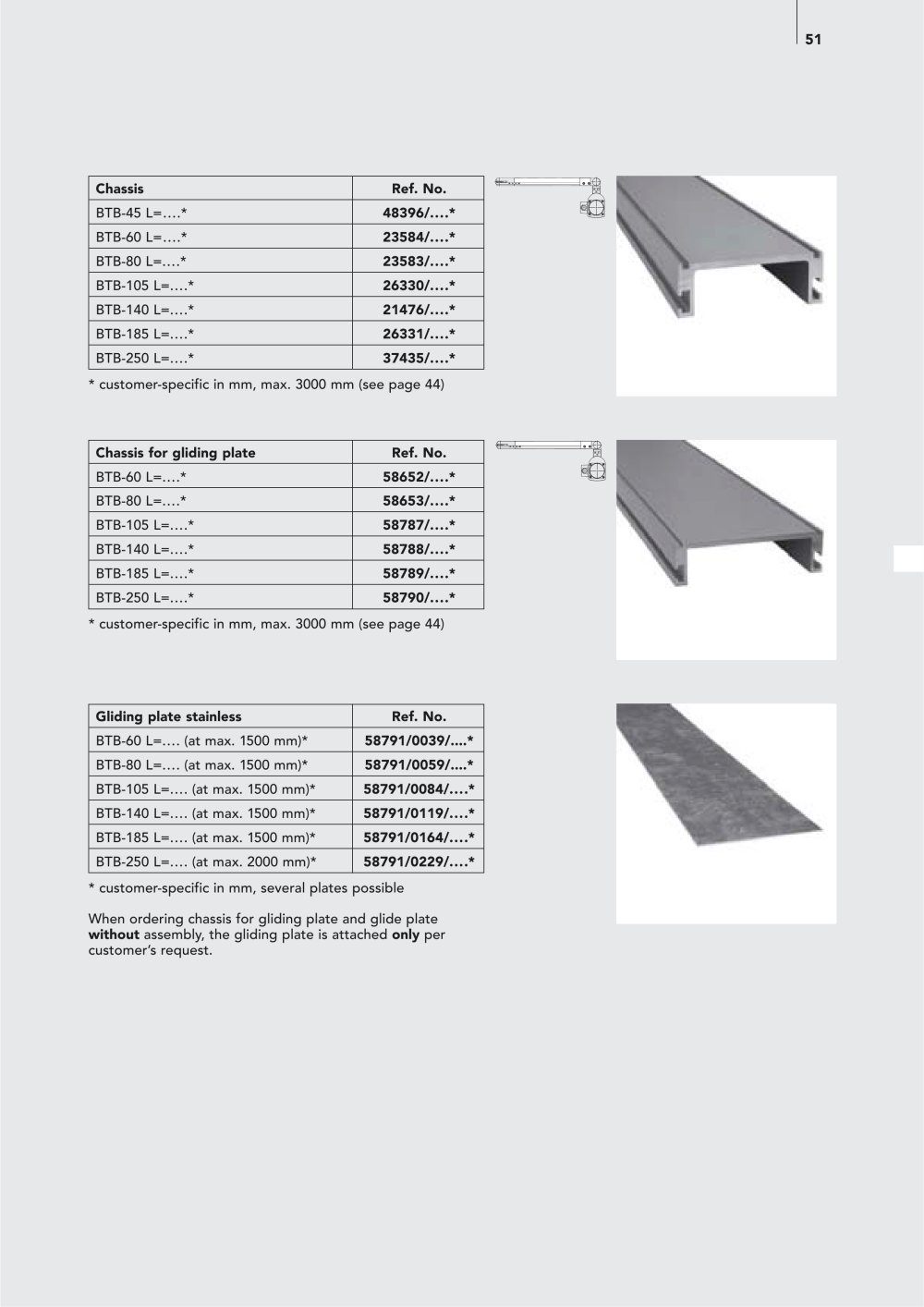

51
* customer-specific in mm, max. 3000 mm (see page 44)
Chassis for gliding plate Ref. No.
BTB-60 L=....* 58652/....*
BTB-80 L=....* 58653/....*
BTB-105 L=....* 58787/....*
BTB-140 L=....* 58788/....*
BTB-185 L=....* 58789/....*
BTB-250 L=....* 58790/....*
* customer-specific in mm, max. 3000 mm (see page 44)
Chassis Ref. No.
BTB-45 L=....* 48396/....*
BTB-60 L=....* 23584/....*
BTB-80 L=....* 23583/....*
BTB-105 L=....* 26330/....*
BTB-140 L=....* 21476/....*
BTB-185 L=....* 26331/....*
BTB-250 L=....* 37435/....*
* customer-specific in mm, several plates possible
When ordering chassis for gliding plate and glide plate
without assembly, the gliding plate is attached only per
customer’s request.
Gliding plate stainless Ref. No.
BTB-60 L=.... (at max. 1500 mm)* 58791/0039/....*
BTB-80 L=.... (at max. 1500 mm)* 58791/0059/....*
BTB-105 L=.... (at max. 1500 mm)* 58791/0084/....*
BTB-140 L=.... (at max. 1500 mm)* 58791/0119/....*
BTB-185 L=.... (at max. 1500 mm)* 58791/0164/....*
BTB-250 L=.... (at max. 2000 mm)* 58791/0229/....*
