49
270°
167
L
7 105
40
73
90
80
44 80
Ř 40
Ř 40
48
30
A
11
136 24
40
12
B
X
A
16
9
11
5.5
8
1
C
32.5
14
A – A
A
A
1)
2)
Rear drive3) Drive mode Front drive
All drawings are available at www.montech.com for download.

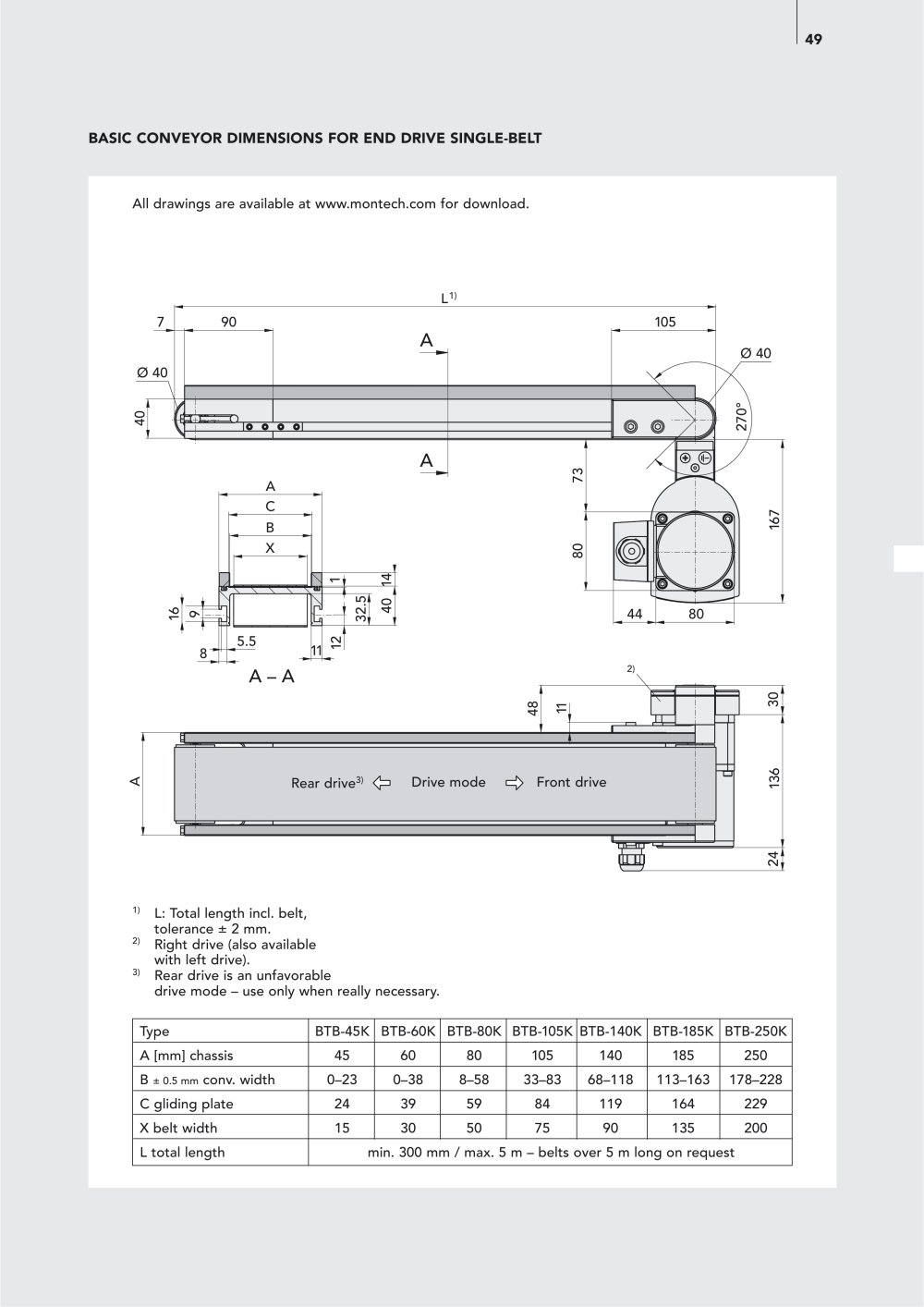

BASIC CONVEYOR DIMENSIONS FOR END DRIVE SINGLE-BELT
Type BTB-45K BTB-60K BTB-80K BTB-105K BTB-140K BTB-185K BTB-250K
A [mm] chassis 45 60 80 105 140 185 250
B ± 0.5 mm conv. width 0–23 0–38 8–58 33–83 68–118 113–163 178–228
C gliding plate 24 39 59 84 119 164 229
X belt width 15 30 50 75 90 135 200
L total length min. 300 mm / max. 5 m – belts over 5 m long on request
1) L: Total length incl. belt,
tolerance ± 2 mm.
2) Right drive (also available
with left drive).
3) Rear drive is an unfavorable
drive mode – use only when really necessary.
