10

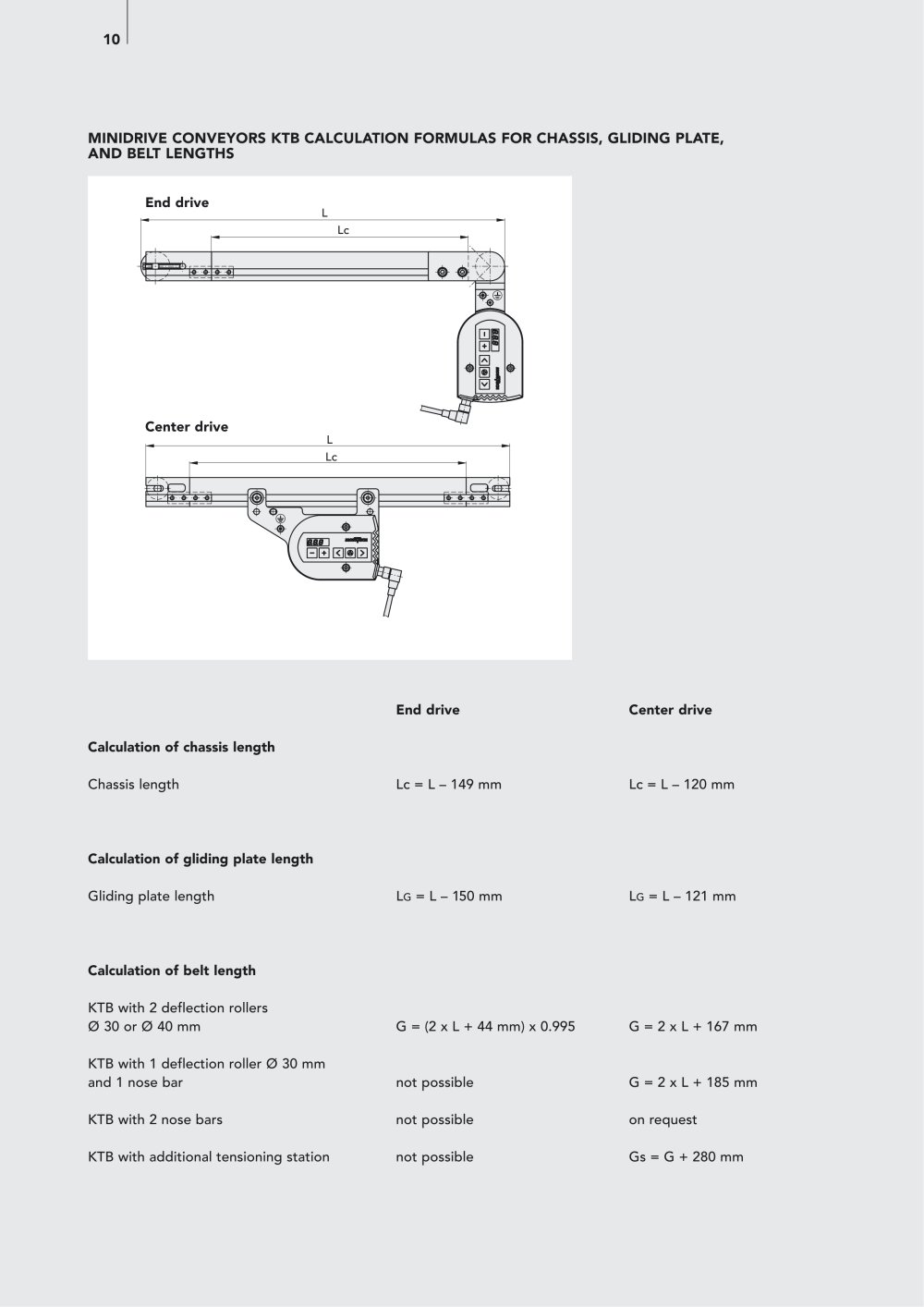

MINIDRIVE CONVEYORS KTB CALCULATION FORMULAS FOR CHASSIS, GLIDING PLATE,
AND BELT LENGTHS
L
Lc
L
Lc
End drive
Center drive
End drive Center drive
Calculation of chassis length
Chassis length Lc = L – 149 mm Lc = L – 120 mm
Calculation of gliding plate length
Gliding plate length LG = L – 150 mm LG = L – 121 mm
Calculation of belt length
KTB with 2 deflection rollers
Ř 30 or Ř 40 mm G = (2 x L + 44 mm) x 0.995 G = 2 x L + 167 mm
KTB with 1 deflection roller Ř 30 mm
and 1 nose bar not possible G = 2 x L + 185 mm
KTB with 2 nose bars not possible on request
KTB with additional tensioning station not possible Gs = G + 280 mm
