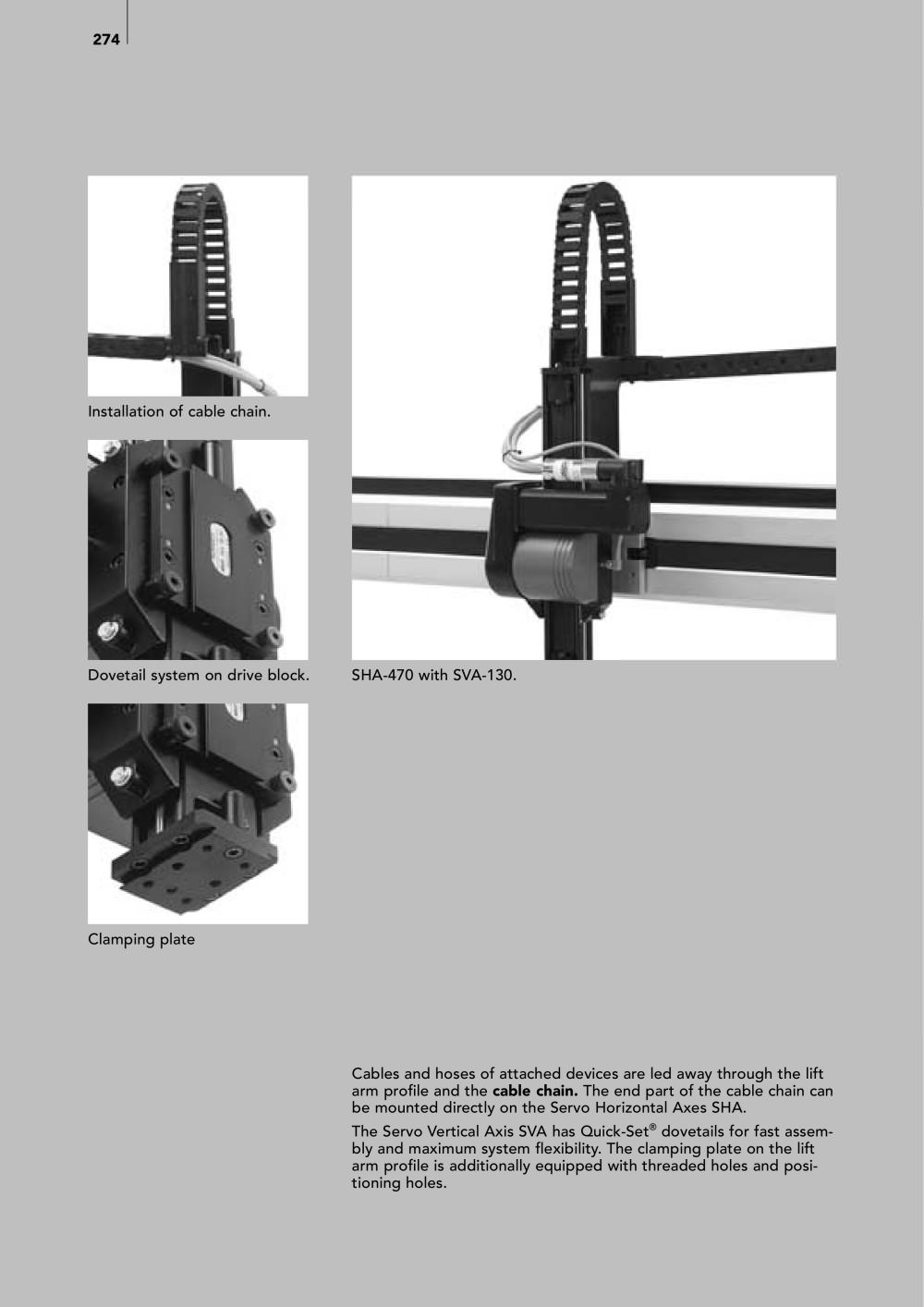

274 Installation of cable chain.
Dovetail system on drive block.
Clamping plate
SHA-470 with SVA-130. Cables and hoses of attached devices are led away through the liftarm profile and the cable chain. The end part of the cable chain canbe mounted directly on the Servo Horizontal Axes SHA.The Servo Vertical Axis SVA has Quick-Set
® dovetails for fast assem-bly and maximum system flexibility. The clamping plate on the lift arm profile is additionally equipped with threaded holes and posi- tioning holes.
