| | | 26 | | |
| | | |

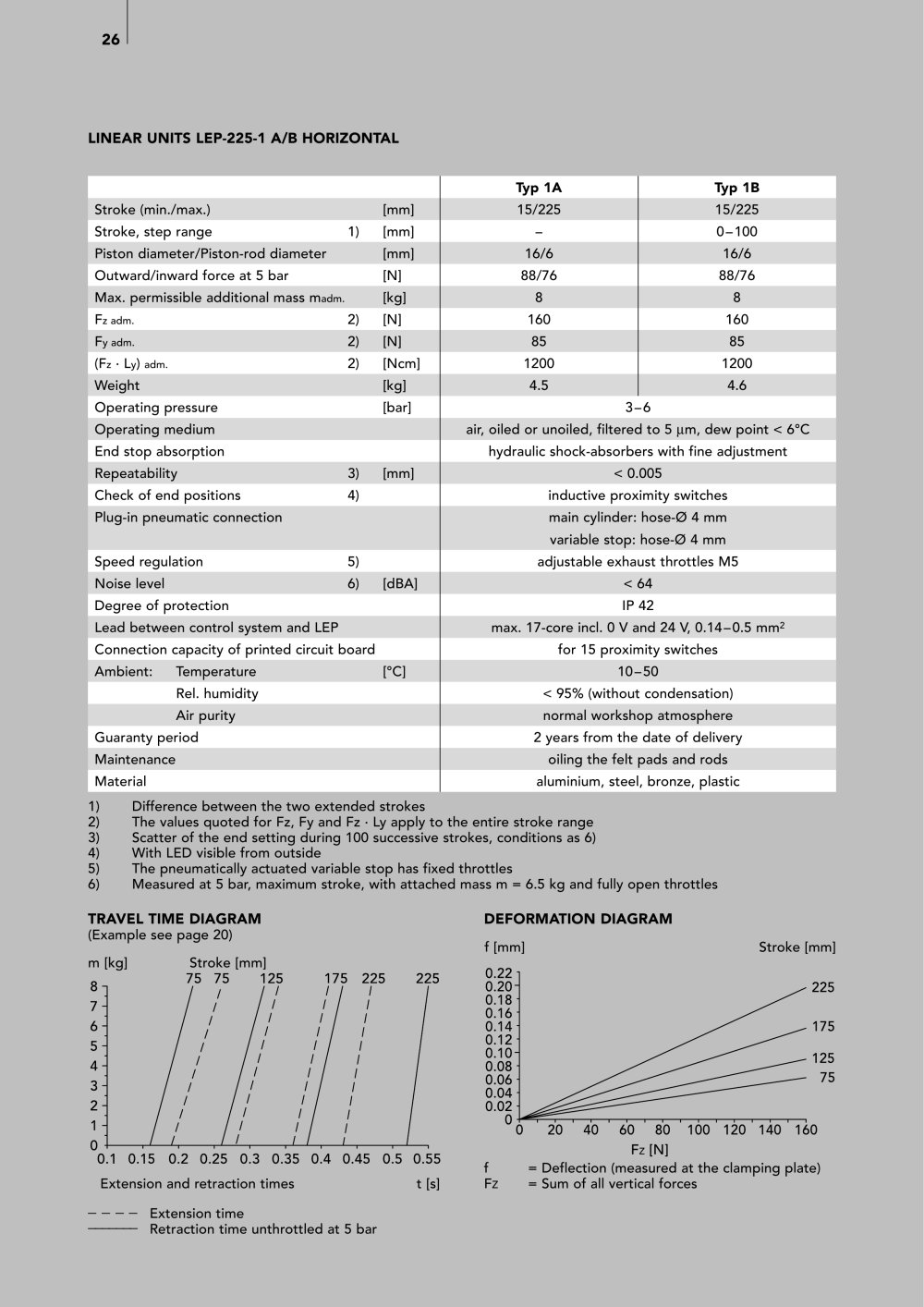

| | | LINEAR UNITS LEP-225-1 A/B HORIZONTAL | | |
| | | |
| | | | | | | | | | | | | | Typ 1A | Typ 1B | | | | Stroke (min./max.) | | [mm] | 15/225 | 15/225 | | | | Stroke, step range | 1) | [mm] | - | 0-100 | | | | Piston diameter/Piston-rod diameter | | [mm] | 16/6 | 16/6 | | | | Outward/inward force at 5 bar | | [N] | 88/76 | 88/76 | | | | Max. permissible additional mass madm. | [kg] | 8 | 8 | | | | Fz adm. | 2) | [N] | 160 | 160 | | | | Fy adm. | 2) | [N] | 85 | 85 | | | | (Fz . Ly) adm. | 2) | [Ncm] | 1200 | 1200 | | | | Weight | | [kg] | 4.5 | 4.6 | | | | Operating pressure | | [bar] | 3-6 | | | | Operating medium | air, oiled or unoiled, filtered to 5 |im, dew point < 6°C | | | | End stop absorption | hydraulic shock-absorbers with fine adjustment | | | | Repeatability | 3) | [mm] | < 0.005 | | | | Check of end positions | 4) | | inductive proximity switches | | | | Plug-in pneumatic connection | | | main cylinder: hose-0 4 mm variable stop: hose-0 4 mm | | | | Speed regulation | 5) | | adjustable exhaust throttles M5 | | | | Noise level | 6) | [dBA] | < 64 | | | | Degree of protection | IP 42 | | | | Lead between control system and LEP | max. 17-core incl. 0 V and 24 V, 0.14-0.5 mm2 | | | | Connection capacity of printed circuit board | for 15 proximity switches | | | | Ambient: Temperature | | [°C] | 10-50 | | | | Rel. humidity | < 95% (without condensation) | | | | Air purity | normal workshop atmosphere | | | | Guaranty period | 2 years from the date of delivery | | | | Maintenance | oiling the felt pads and rods | | | | Material | aluminium, steel, bronze, plastic | | | | | | | | | | | | |
| | | |
| | | 1) Difference between the two extended strokes 2) The values quoted for Fz, Fy and Fz . Ly apply to the entire stroke range 3) Scatter of the end setting during 100 successive strokes, conditions as 6) 4) With LED visible from outside 5) The pneumatically actuated variable stop has fixed throttles 6) Measured at 5 bar, maximum stroke, with attached mass m = 6.5 kg and fully open throttles | | |
| | | |
| | | TRAVEL TIME DIAGRAM (Example see page 20) | | DEFORMATION DIAGRAM f [mm] | | |
| | | Stroke [mm] | | |
| | | |
| | | |
| | | m [kg] 8 7 | | Stroke [mm] 75 75 125 | | |
| | | 175 225 | | 225 | | |
| | | |
| | | |
| | | 20 40 60 80 100 120 140 160 Fz [N] = Deflection (measured at the clamping plate) = Sum of all vertical forces | | |
| | | 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.55 Extension and retraction times t [s] | | |
| | | f Fz | | |
| | | |
| | | |
| | | Extension time Retraction time unthrottled at 5 bar | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
