93

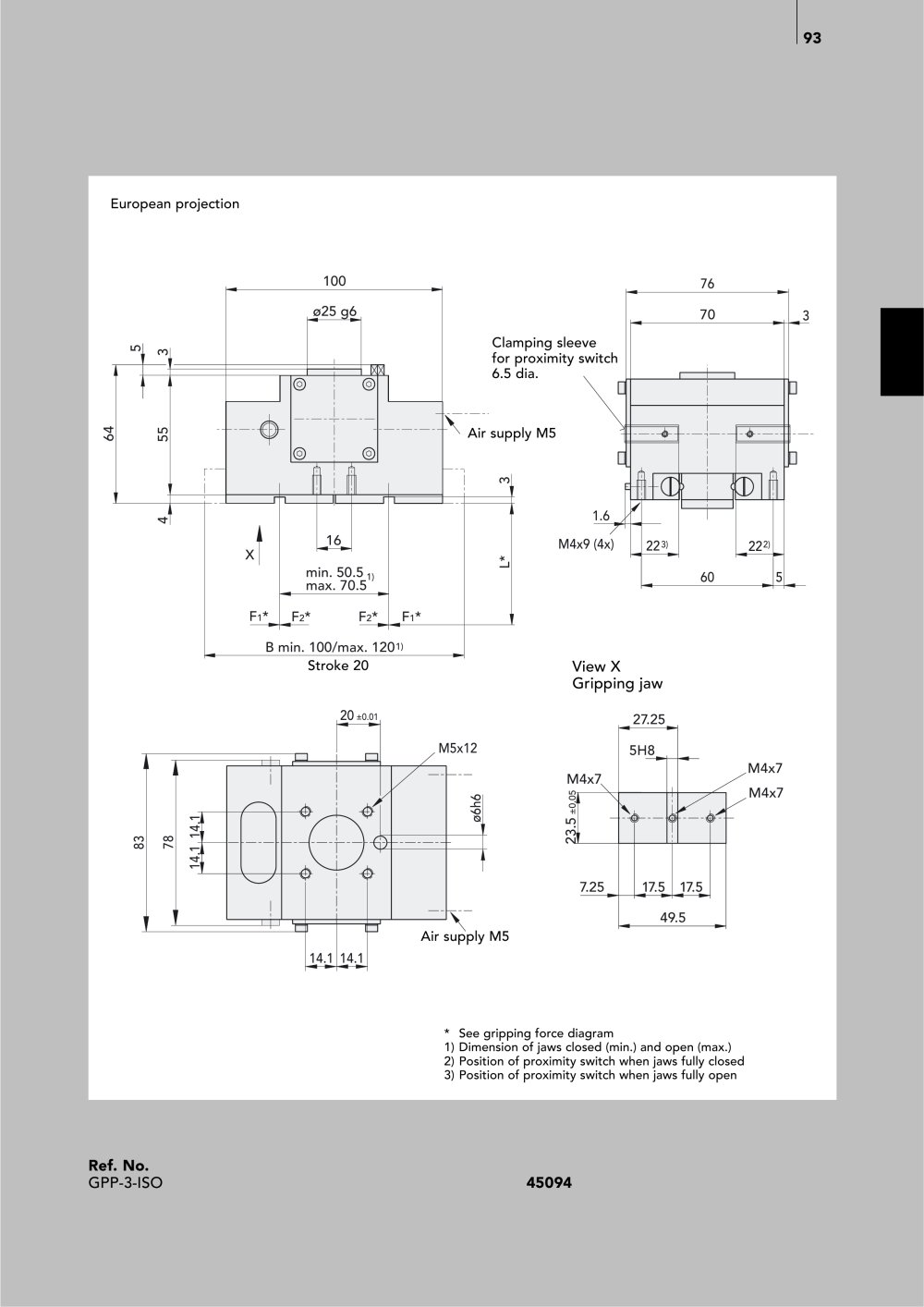

European projection
100 76 1.6 703564554 3L* 16 ř25 g6 M4x9 (4x)5602222 3
2)3) X min. 50.5 max. 70.5
1) 1 F*
2 F*
2 F*
1 B min. 100/max. 120F*
1)
Stroke 20 Air supply M5Clamping sleeve for proximity switch 6.5 dia. Air supply M5
View XGripping jaw
±0.01 27.25M4x7 M5x1220 5H8M4x7M4x77.2517.517.549.5±0.05 ř6h6 14.114.1 23.5 7883 14.114.1
*See gripping force diagram1)Dimension of jaws closed (min.) and open (max.) 2)Position of proximity switch when jaws fully closed 3)Position of proximity switch when jaws fully open
