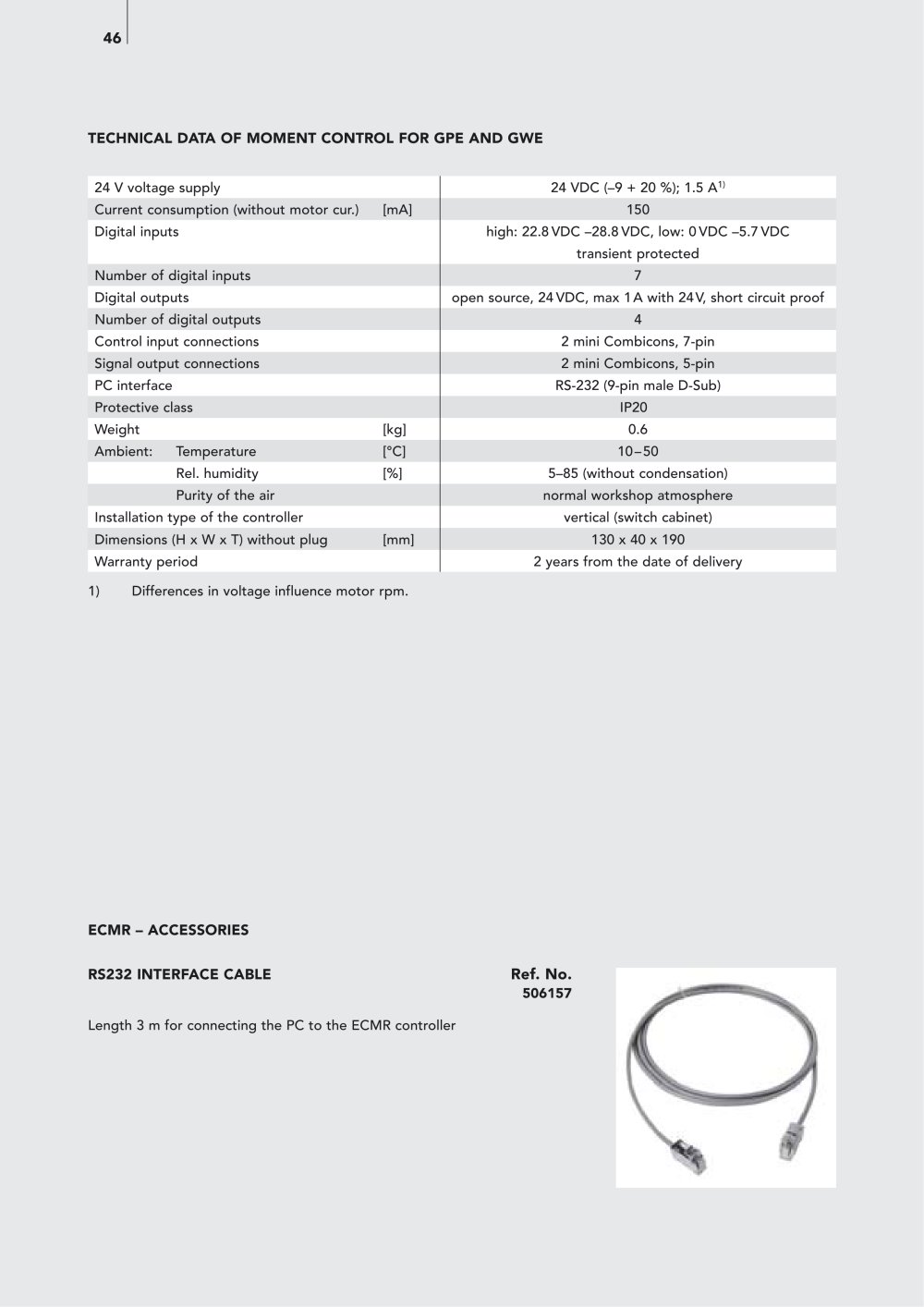

TECHNICAL DATA OF MOMENT CONTROL FOR GPE AND GWE


24 V voltage supply		24 VDC (-9 + 20 %); 1.5 A¹⁾
Current consumption (without motor cur.)	[mA]	150
Digital inputs		high: 22.8VDC -28.8VDC, low: 0VDC -5.7VDC transient protected
Number of digital inputs		7
Digital outputs		open source, 24 VDC, max 1 A with 24 V, short circuit proof
Number of digital outputs		4
Control input connections		2 mini Combicons, 7-pin
Signal output connections		2 mini Combicons, 5-pin
PC interface		RS-232 (9-pin male D-Sub)
Protective class		IP20
Weight	[kg]	0.6
Ambient: Temperature	[°C]	10-50
Rel. humidity	[%]	5-85 (without condensation)
Purity of the air		normal workshop atmosphere
Installation type of the controller		vertical (switch cabinet)
Dimensions (H x W x T) without plug	[mm]	130 x 40 x 190
Warranty period		2 years from the date of delivery

1) Differences in voltage influence motor rpm.

ECMR - ACCESSORIES RS232 INTERFACE CABLE

Length 3 m for connecting the PC to the ECMR controller
