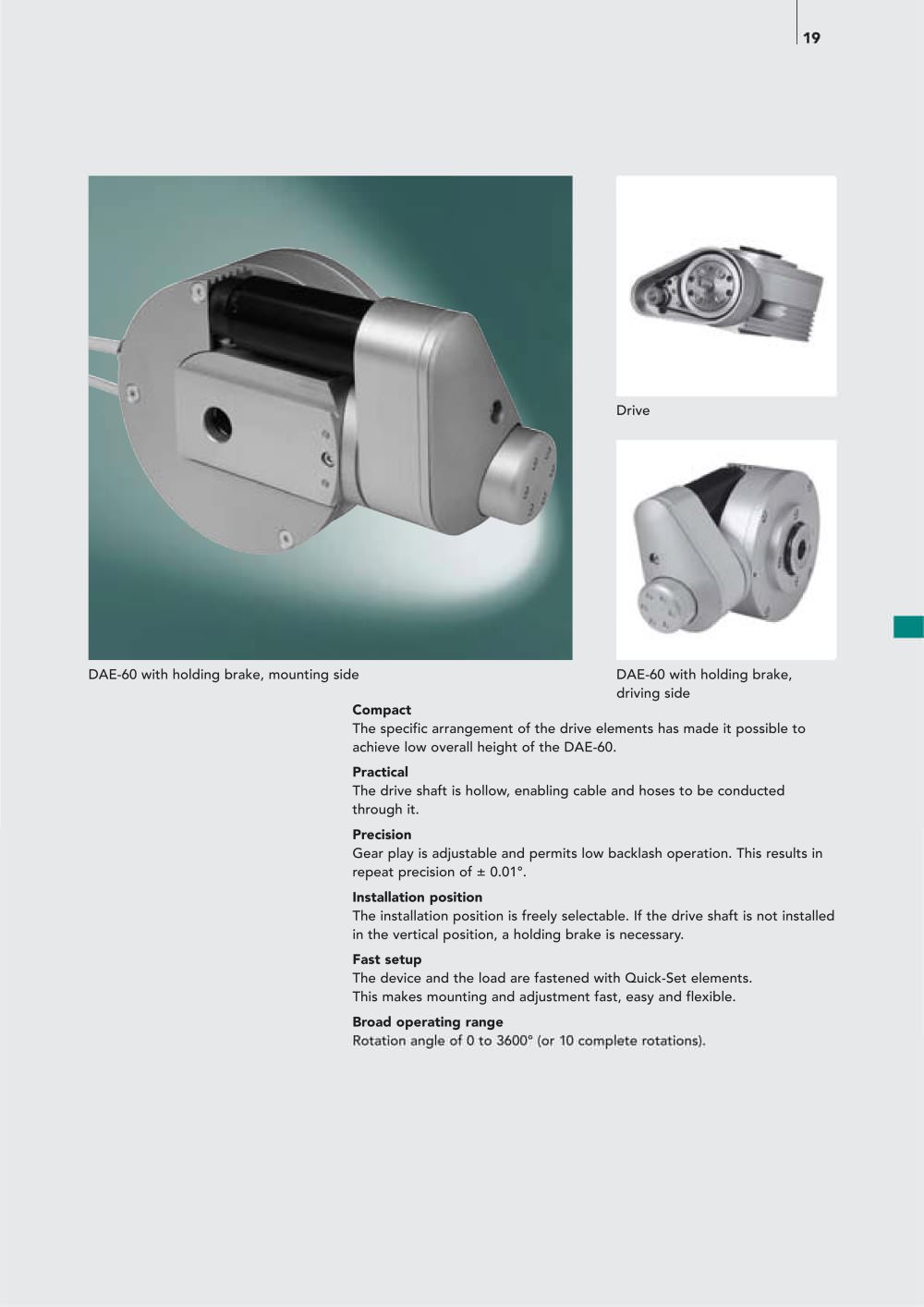

Compact The specific arrangement of the drive elements has made it possible toachieve low overall height of the DAE-60. Practical The drive shaft is hollow, enabling cable and hoses to be conducted through it. Precision Gear play is adjustable and permits low backlash operation. This results inrepeat precision of ± 0.01°. Installation position The installation position is freely selectable. If the drive shaft is not installedin the vertical position, a holding brake is necessary. Fast setup The device and the load are fastened with Quick-Set elements. This makes mounting and adjustment fast, easy and flexible. Broad operating range Rotation angle of 0 to 3600° (or 10 complete rotations). DAE-60 with holding brake,driving side Drive DAE-60 with holding brake, mounting side
