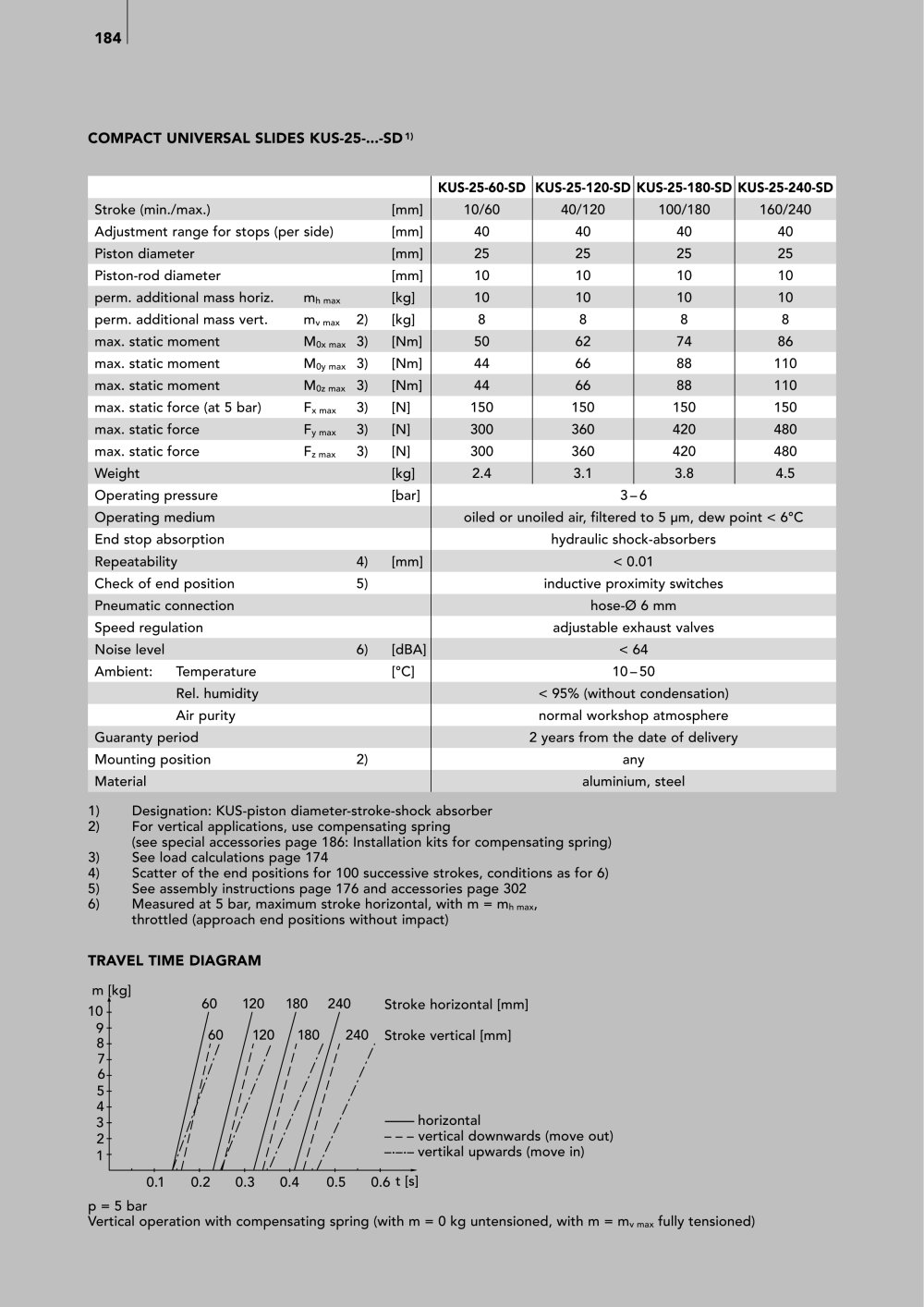

COMPACT UNIVERSAL SLIDES KUS-25-...-SD¹⁾


				KUS-25-60-SD	KUS-25-120-SD	KUS-25-180-SD	KUS-25-240-SD
Stroke (min./max.)			[mm]	10/60	40/120	100/180	160/240
Adjustment range for stops (per side)			[mm]	40	40	40	40
Piston diameter			[mm]	25	25	25	25
Piston-rod diameter			[mm]	10	10	10	10
perm. additional mass horiz.	^mh max		[kg]	10	10	10	10
perm. additional mass vert.	^mv max	2)	[kg]	8	8	8	8
max. static moment	^M0x max	3)	[Nm]	50	62	74	86
max. static moment	Moy max	3)	[Nm]	44	66	88	110
max. static moment	Moz max	3)	[Nm]	44	66	88	110
max. static force (at 5 bar)	Fx max	3)	[N]	150	150	150	150
max. static force	Fy max	3)	[N]	300	360	420	480
max. static force	^Fz max	3)	[N]	300	360	420	480
Weight			[kg]	2.4	3.1	3.8	4.5
Operating pressure			[bar]	3-6
Operating medium				oiled or unoiled air, filtered to 5 um, dew point < 6°C
End stop absorption				hydraulic shock-absorbers
Repeatability		4)	[mm]	< 0.01
Check of end position		5)		inductive proximity switches
Pneumatic connection				hose-0 6 mm
Speed regulation				adjustable exhaust valves
Noise level		6)	[dBA]	< 64
Ambient: Temperature			[°C]	10 - 50
Rel. humidity				< 95% (without condensation)
Air purity				normal workshop atmosphere
Guaranty period				2 years from the date of delivery
Mounting position		2)		any
Material				aluminium, steel

1) Designation: KUS-piston diameter-stroke-shock absorber

2) For vertical applications, use compensating spring

(see special accessories page 186: Installation kits for compensating spring)

3) See load calculations page 174

4) Scatter of the end positions for 100 successive strokes, conditions as for 6)

5) See assembly instructions page 176 and accessories page 302

6) Measured at 5 bar, maximum stroke horizontal, with m = m_h _max, throttled (approach end positions without impact)

TRAVEL TIME DIAGRAM

m [kg]

10987654321-

60 120 180 240 Stroke horizontal [mm]

160 /120 / 180 / 240 Stroke vertical [mm]

// // / // /// / , // // / // /// / '/ ¹ / I I I /

---------horizontal

- - - vertical downwards (move out)

// // // ' // / -----vertikal upwards (move in)

'■/ , // , //■/ .//■/ ,_._,__

0.2 0.3 0.4 0.5 0.61 [s]

0.1

p = 5 bar

Vertical operation with compensating spring (with m = 0 kg untensioned, with m = m_v _max fully tensioned)
