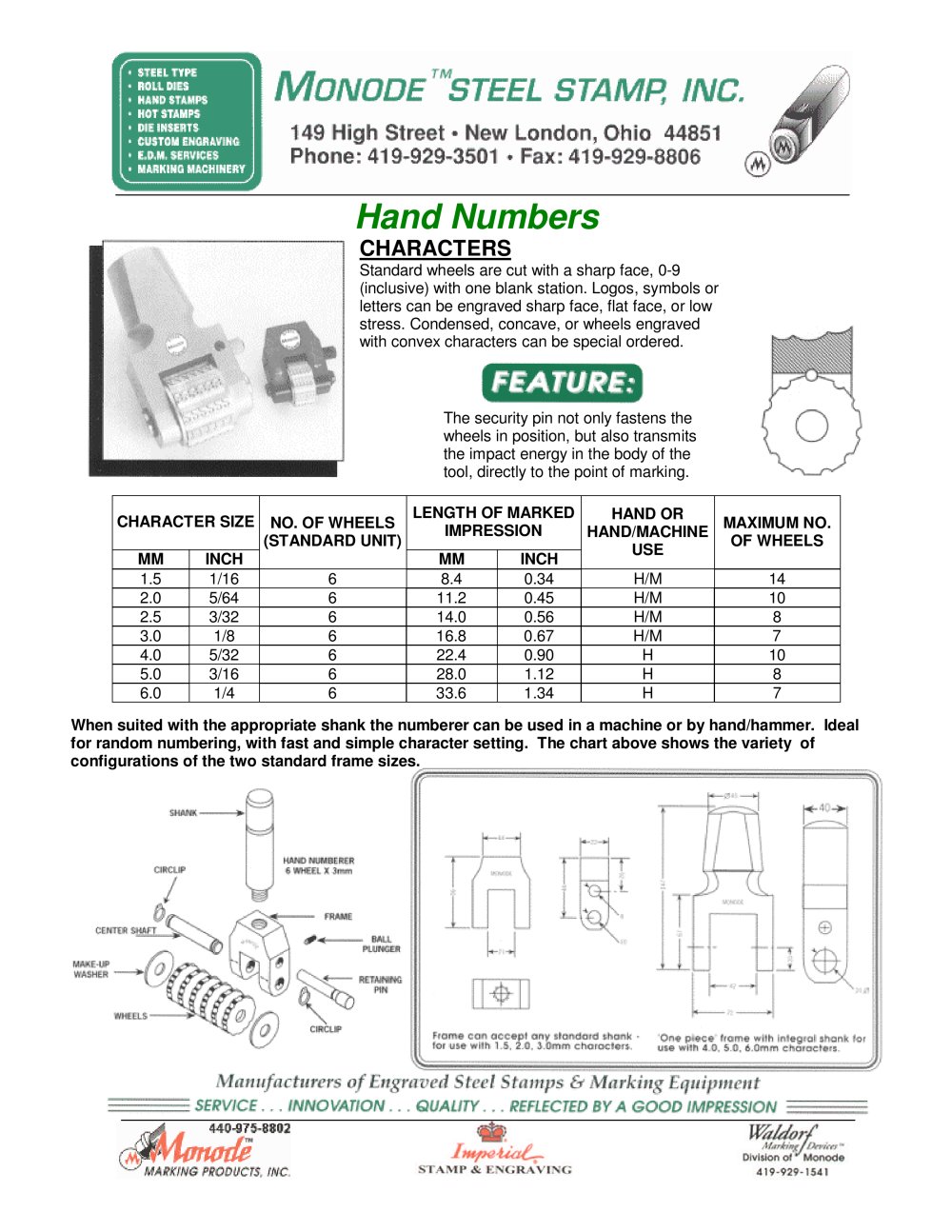

Hand Numbers

CHARACTERS

Standard wheels are cut with a sharp face, 0-9(inclusive) with one blank station. Logos, symbols or letters can be engraved sharp face, flat face, or low stress. Condensed, concave, or wheels engravedwith convex characters can be special ordered.The security pin not only fastens thewheels in position, but also transmits the impact energy in the body of the tool, directly to the point of marking. CHARACTER SIZELENGTH OF MARKEDIMPRESSION MMINCHNO. OF WHEELS(STANDARD UNIT)MMINCHHAND ORHAND/MACHINEUSEMAXIMUM NO.OF WHEELS 1.51/1668.40.34H/M14 2.05/64611.20.45H/M10 2.53/32614.00.56H/M8 3.01/8616.80.67H/M7 4.05/32622.40.90H10 5.03/16628.01.12H8 6.01/4633.61.34H7 When suited with the appropriate shank the numberer can be used in a machine or by hand/hammer.Ideal for random numbering, with fast and simple character setting. The chart above shows the variety of configurations of the two standard frame sizes.
