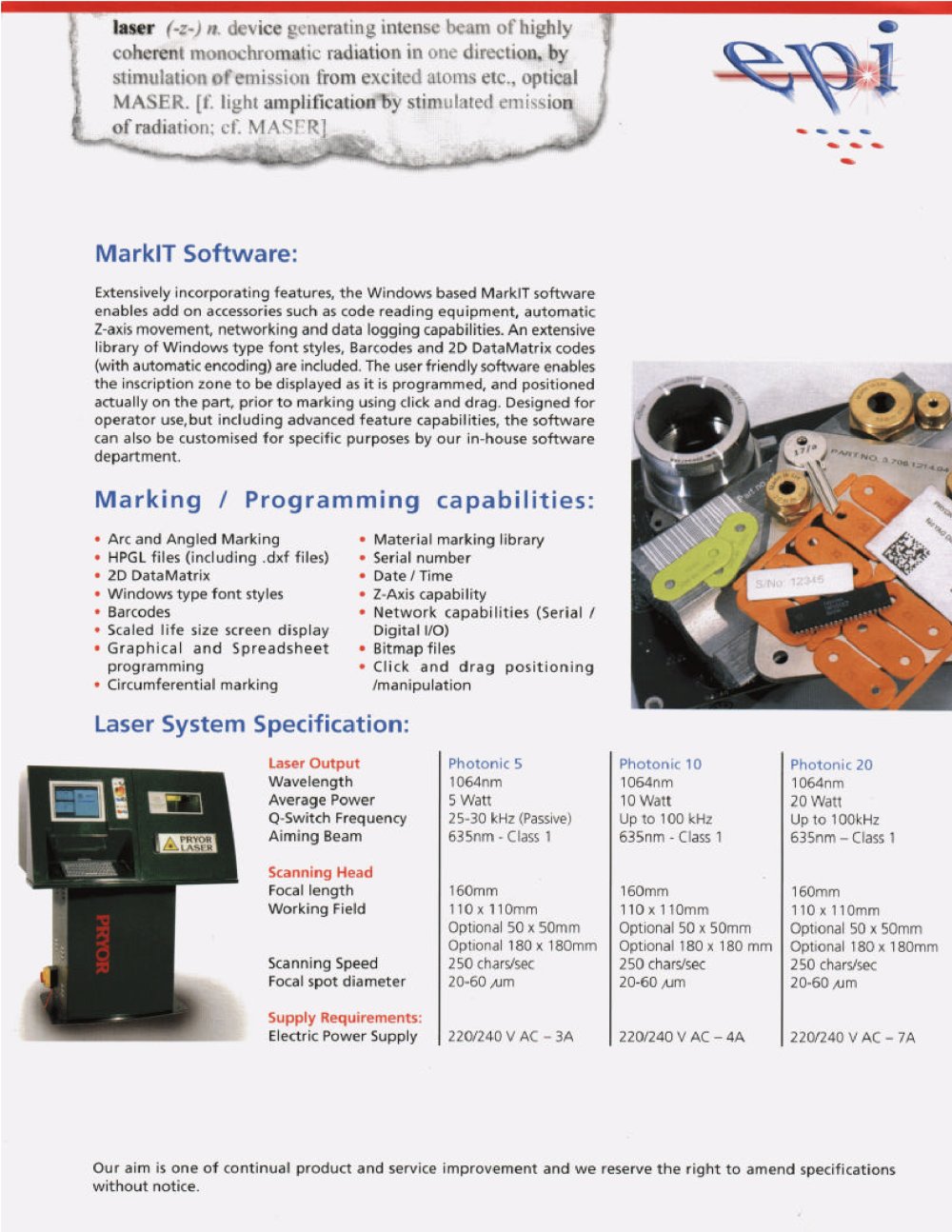

| laser (-Z-) n. device generating intense beam of highly coherent monochromatic radiation in one direction, by stimulation of emission from excited atoms etc., optical MASER. [f. light amplification "by stimulated emissi* of radiation; cf. M AS PR | |||||||||||||||||||||||||||||||||||||
| 1 | |||||||||||||||||||||||||||||||||||||
| MarkIT Software: | |||||||||||||||||||||||||||||||||||||
| Extensively incorporating features, the Windows based MarkIT software enables add on accessories such as code reading equipment, automatic Z-axis movement, networking and data logging capabilities. An extensive library of Windows type font styles, Barcodes and 2D DataMatrix codes {with automatic encoding) are included. The user friendly software enables the inscription zone to be displayed as it is programmed, and positioned actually on the part, prior to marking using click and drag. Designed for operator use.but including advanced feature capabilities, the software can also be customised for specific purposes by our in-house software department. Marking / Programming capabilities: | |||||||||||||||||||||||||||||||||||||
| Arc and Angled Marking HPGL files (including .dxf files) 2D DataMatrix Windows type font styles Barcodes Scaled life size screen display Graphical and Spreadsheet programming Circumferential marking | |||||||||||||||||||||||||||||||||||||
| Material marking library Serial number Date / Time Z-Axis capability Network capabilities (Serial / Digital I/O) Bitmap files Click and drag positioning /manipulation | |||||||||||||||||||||||||||||||||||||
| Laser System Specification: | |||||||||||||||||||||||||||||||||||||
| Laser Output Wavelength Average Power Q-Switch Frequency Aiming Beam Scanning Head Focal length Working Field | Photonic 5 1064nm 5 Watt 25-30 kHz (Passive) 635nm - Class 1 | Photonic 10 1064nm 10 Watt Up to 100 kHz 635nm - Class 1 | |||||||||||||||||||||||||||||||||||
| Photonic 20 I064nm 20 Watt Up to 100kHz 635nm - Class 1 | |||||||||||||||||||||||||||||||||||||
| ten | |||||||||||||||||||||||||||||||||||||
| 160mm 110 x 110mm Optional 50 x 50mm Optional 1S0x 180mm 250 chars/sec 20-60 Aim | 160mm 110x 110mm Optional 50 x 50mm Optional 180x 180 mm 250 chars/sec 20-60 Aim | ||||||||||||||||||||||||||||||||||||
| 160mm 110 x 110mm Optional 50 x 50mm Optional 180x 180mm 250 chars/sec 20-60 /urn | |||||||||||||||||||||||||||||||||||||
| Scanning Speed Focal spot diameter Supply Requirements: Electric Power Supply | |||||||||||||||||||||||||||||||||||||
| 220/240 V AC - 3A | |||||||||||||||||||||||||||||||||||||
| 220/240 V AC - 4A | 220/240 V AC - 7A | ||||||||||||||||||||||||||||||||||||
| Our aim is one of continual product and service improvement and we reserve the right to amend specifications without notice. | |||||||||||||||||||||||||||||||||||||
