@ absolutevision.co.ukwww.absolutevision.co.uk Absolute Vision Ltd The Kennels Packington Park Meriden Warwickshire CV7 7HE United Kingdomtel:0845 130 1880fax: 0845 130 1886e-mail: sales

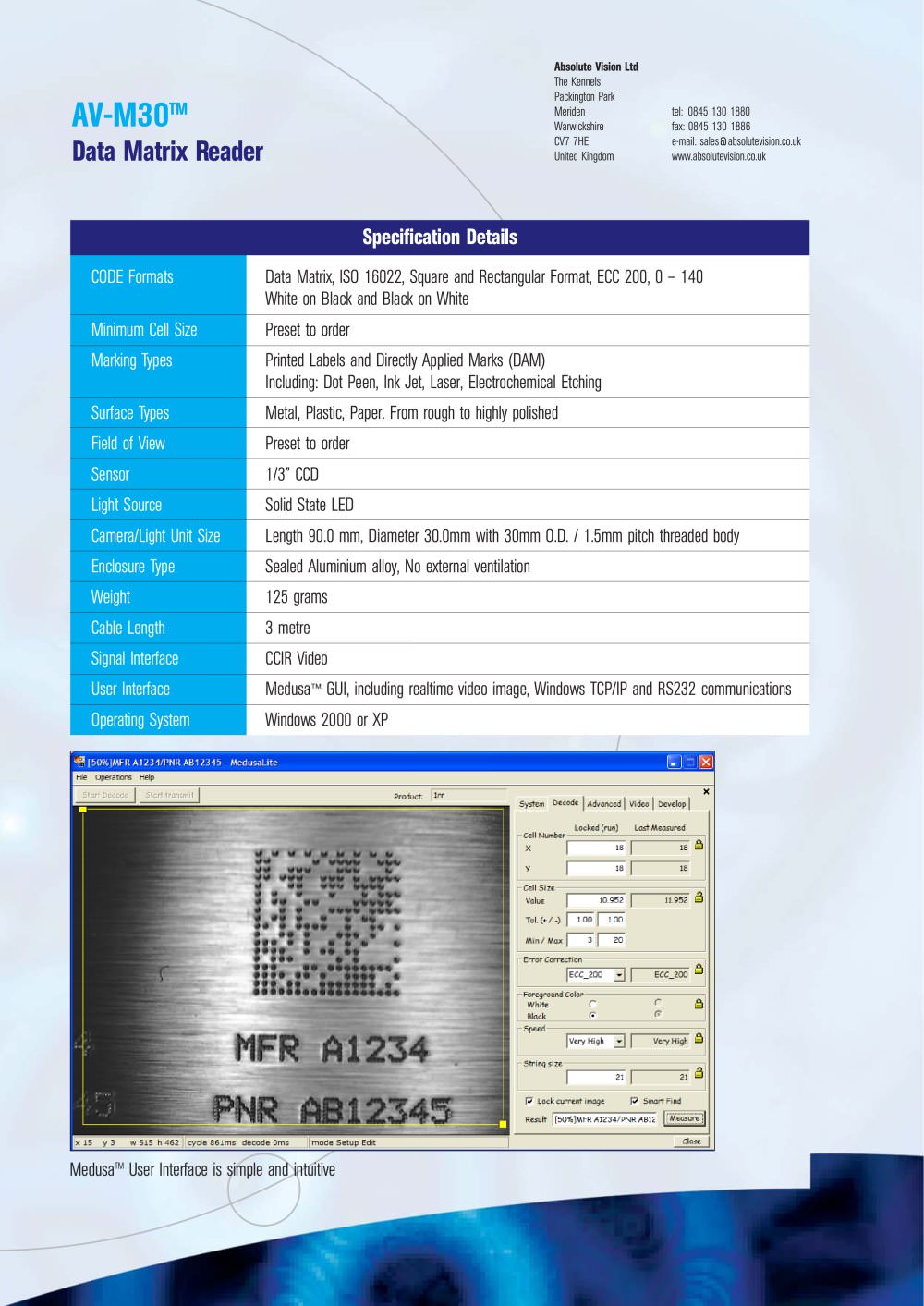

Data Matrix Reader - 53559 AV-M30

TM

Data Matrix Reader

Specification Details

CODE FormatsMinimum Cell SizeMarking TypesSurface TypesField of View SensorLight SourceCamera/Light Unit Size Enclosure Type Weight Cable Length Signal Interface User Interface Operating System Data Matrix, ISO 16022, Square and Rectangular Format, ECC 200, 0 – 140White on Black and Black on White Preset to order Printed Labels and Directly Applied Marks (DAM) Including: Dot Peen, Ink Jet, Laser, Electrochemical Etching Metal, Plastic, Paper. From rough to highly polished Preset to order 1/3” CCDSolid State LED Length 90.0 mm, Diameter 30.0mm with 30mm O.D. / 1.5mm pitch threaded body Sealed Aluminium alloy, No external ventilation 125 grams 3 metre CCIR Video Medusa
™ GUI, including realtime video image, Windows TCP/IP and RS232 communicationsWindows 2000 or XP Medusa
TM User Interface is simple and intuitive
