vibration module MTN/8065
2Pages

{{requestButtons}}

Catalog excerpts

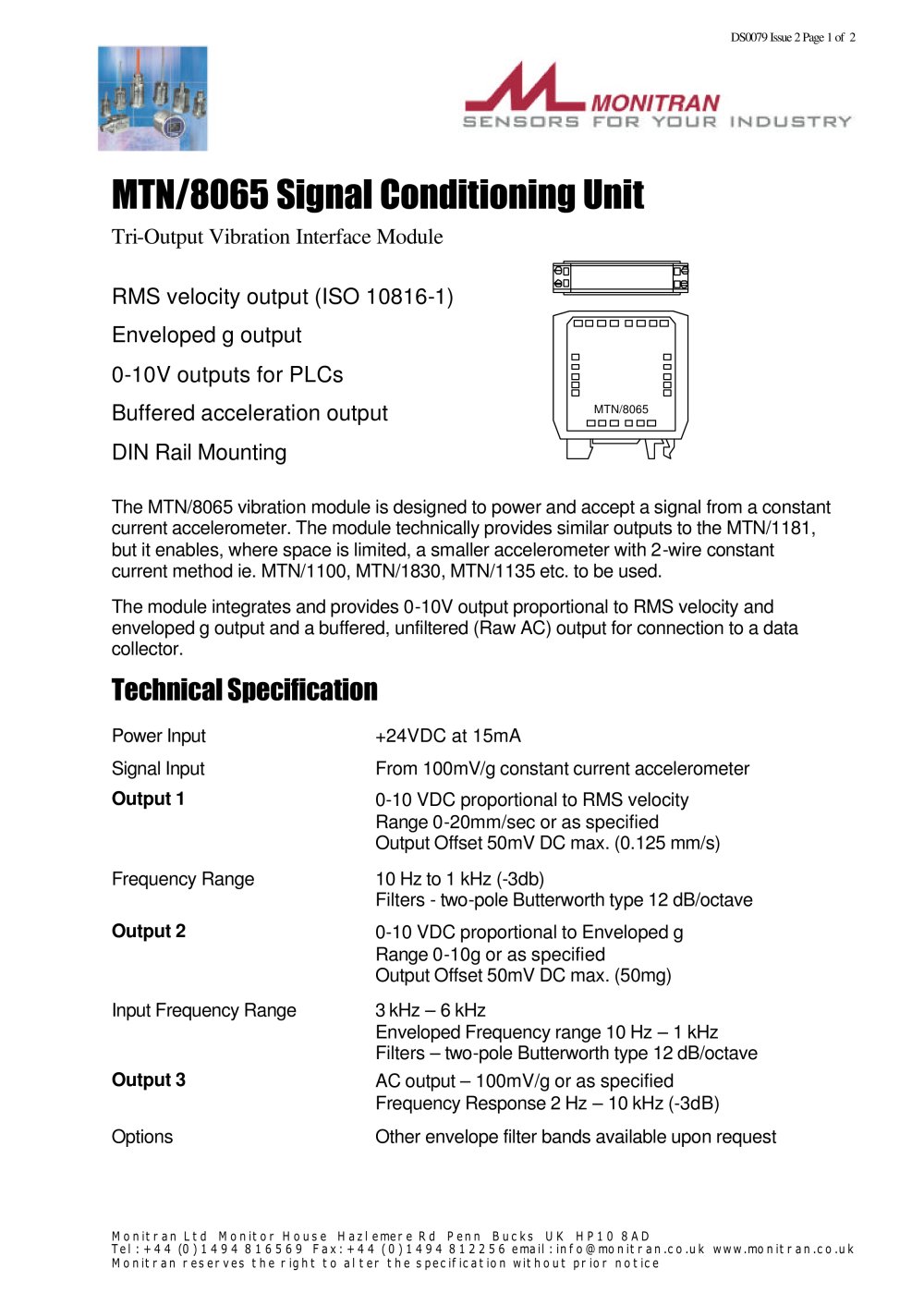

vibration module MTN/8065 - 1

DS0079 Issue 2 Page 1 of 2 Monitran Ltd Monitor House Hazlemere Rd Penn Bucks UK HP10 8AD Tel: +44 (0) 1494 816569 Fax: +44 ( 0) 1494 812256 email: info@monitran.co.uk www.monitran.co.uk Monitran reserves the right to alter the specification without prior notice MTN/8065 Signal Conditioning Unit Tri-Output Vibration Interface Module RMS velocity output (ISO 10816-1) Enveloped g output 0-10V outputs for PLCs Buffered acceleration output DIN Rail Mounting MTN/8065 The MTN/8065 vibration module is designed to power and accept a signal from a constant current accelerometer. The module technically provides similar outputs to the MTN/1181, but it enables, where space is limited, a smaller accelerometer with 2-wire constant current method ie. MTN/1100, MTN/1830, MTN/1135 etc. to be used. The module integrates and provides 0-10V output proportional to RMS velocity and enveloped g output and a buffered, unfiltered (Raw AC) output for connection to a data collector. Technical Specification Power Input +24VDC at 15mA Signal Input From 100mV/g constant current accelerometer Output 1 0-10 VDC proportional to RMS velocity Range 0-20mm/sec or as specified Output Offset 50mV DC max. (0.125 mm/s) Frequency Range 10 Hz to 1 kHz (-3db) Filters - two-pole Butterworth type 12 dB/octave Output 2 0-10 VDC proportional to Enveloped g Range 0-10g or as specified Output Offset 50mV DC max. (50mg) Input Frequency Range 3 kHz – 6 kHz Enveloped Frequency range 10 Hz – 1 kHz Filters – two-pole Butterworth type 12 dB/octave Output 3 AC output – 100mV/g or as specified Frequency Response 2 Hz – 10 kHz (-3dB) Options Other envelope filter bands available upon request

Open the catalog to page 1
vibration module MTN/8065 - 2

DS0079 Issue 2 Page 2 of 2 Construction Din rail mounting enclosure Dimensions 62mm x 65mm 22mm Terminations Screw terminals System Connection - + Power Supply B A F MTN/8065 H E 0-10V - + G C - + V ac Velocity Meter 0-10 Env. g Connections Terminal “A” Accelerometer Input 0V Terminal “B” Accelerometer Input Signal Terminal “C” AC Output (100 mV/g) Connection Terminal “D” No Connection Terminal “E” +24V Power In Terminal “F” Velocity Output 0-10V = 0-20mm/s Terminal “G” Enveloped g Output 0-10V = 0-10g Terminal “H” 0V Power In

Open the catalog to page 2
