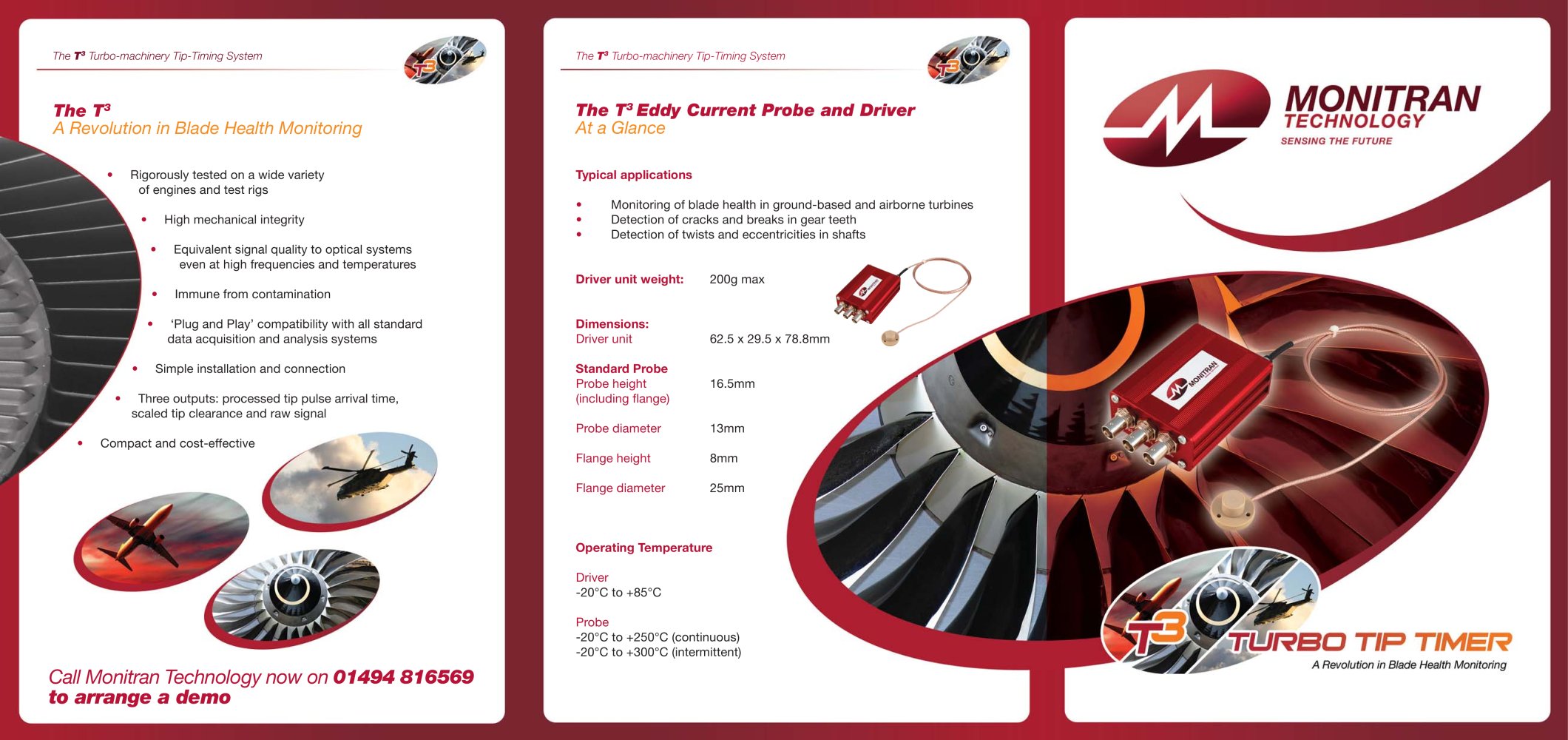

The T3 Turbo-machinery Tip-Timing System The T3 Turbo-machinery Tip-Timing System The T3 A Revolution in Blade Health Monitoring • Rigorously tested on a wide variety of engines and test rigs • High mechanical integrity • Equivalent signal quality to optical systems even at high frequencies and temperatures • Immune from contamination • ‘Plug and Play’ compatibility with all standard data acquisition and analysis systems • Simple installation and connection • Three outputs: processed tip pulse arrival time, scaled tip clearance and raw signal • Compact and cost-effective The T3 Eddy Current Probe and Driver At a Glance Typical applications • Monitoring of blade health in ground-based and airborne turbines • Detection of cracks and breaks in gear teeth • Detection of twists and eccentricities in shafts Driver unit weight: 200g max Dimensions: Driver unit 62.5 x 29.5 x 78.8mm Standard Probe Probe height 16.5mm (including flange) Probe diameter 13mm Flange height 8mm Flange diameter 25mm Operating Temperature Driver -20°C to +85°C Probe -20°C to +250°C (continuous) -20°C to +300°C (intermittent) Call Monitran Technology now on 01494 816569 to arrange a demo
