side-entry accelerometer MTN/1100SM8 - Monitran - #1

Text version of the page

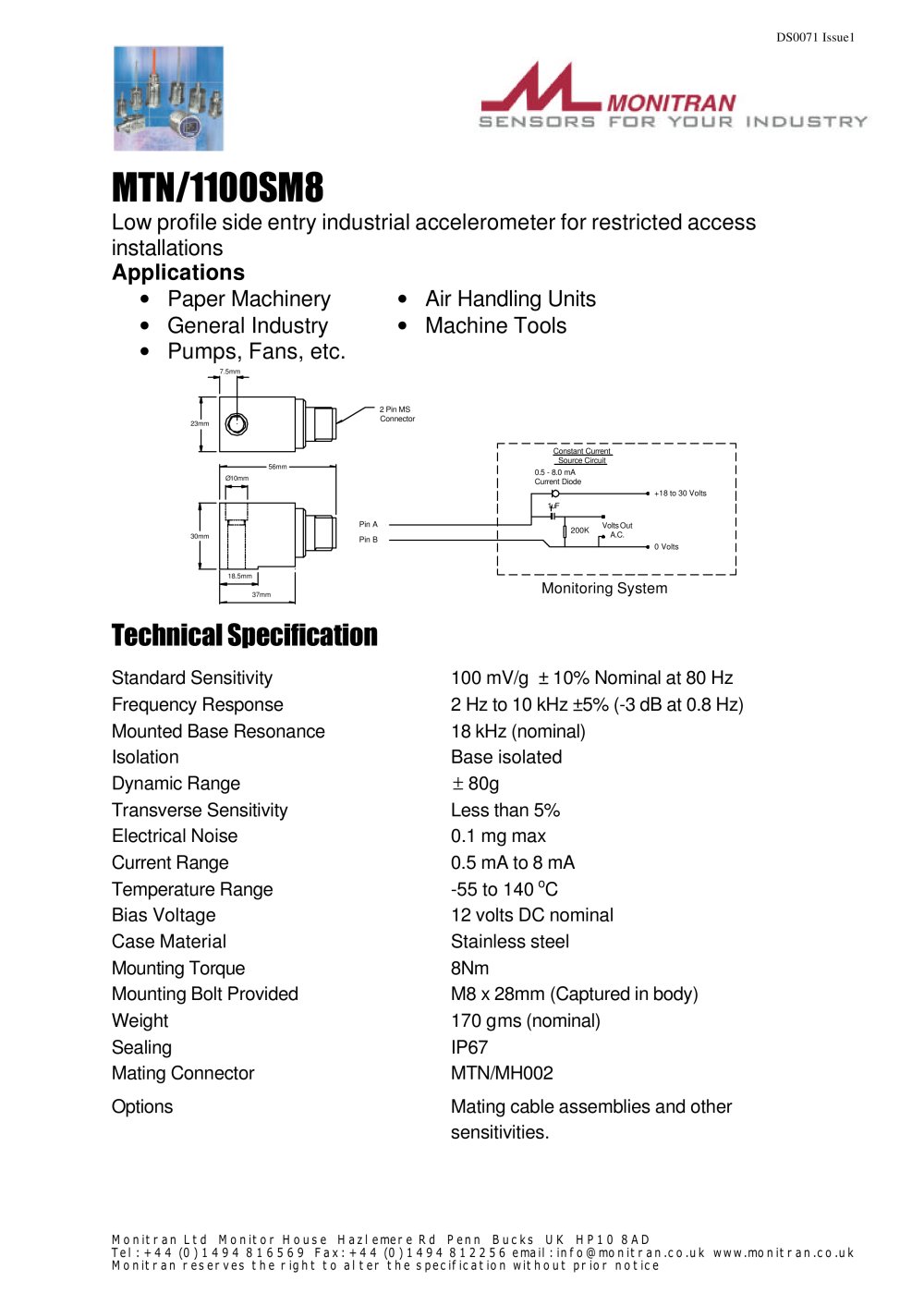

DS0071 Issue1 Monitran Ltd Monitor House Hazlemere Rd Penn Bucks UK HP10 8AD Tel: +44 (0) 1494 816569 Fax: +44 (0) 1494 812256 email: info@monitran.co.uk www.monitran.co.uk Monitran reserves the right to alter the specification without prior notice MTN/1100SM8 Low profile side entry industrial accelerometer for restricted access installations Applications · Paper Machinery · General Industry · Pumps, Fans, etc. · Air Handling Units · Machine Tools 37mm Ø10mm 23mm Monitoring System Volts Out 200K A.C. Constant Current Source Circuit 0.5 - 8.0 mA Current Diode 1uF 30mm 7.5mm 18.5mm 56mm 2 Pin MS Connector Pin A Pin B +18 to 30 Volts 0 Volts Technical Specification Standard Sensitivity 100 mV/g ± 10% Nominal at 80 Hz Frequency Response 2 Hz to 10 kHz ±5% (-3 dB at 0.8 Hz) Mounted Base Resonance 18 kHz (nominal) Isolation Base isolated Dynamic Range ± 80g Transverse Sensitivity Less than 5% Electrical Noise 0.1 mg max Current Range 0.5 mA to 8 mA Temperature Range -55 to 140 oC Bias Voltage 12 volts DC nominal Case Material Stainless steel Mounting Torque 8Nm Mounting Bolt Provided M8 x 28mm (Captured in body) Weight 170 gms (nominal) Sealing IP67 Mating Connector MTN/MH002 Options Mating cable assemblies and other sensitivities.
