Multi-channel vibration monitoring system
2Pages

{{requestButtons}}

Catalog excerpts

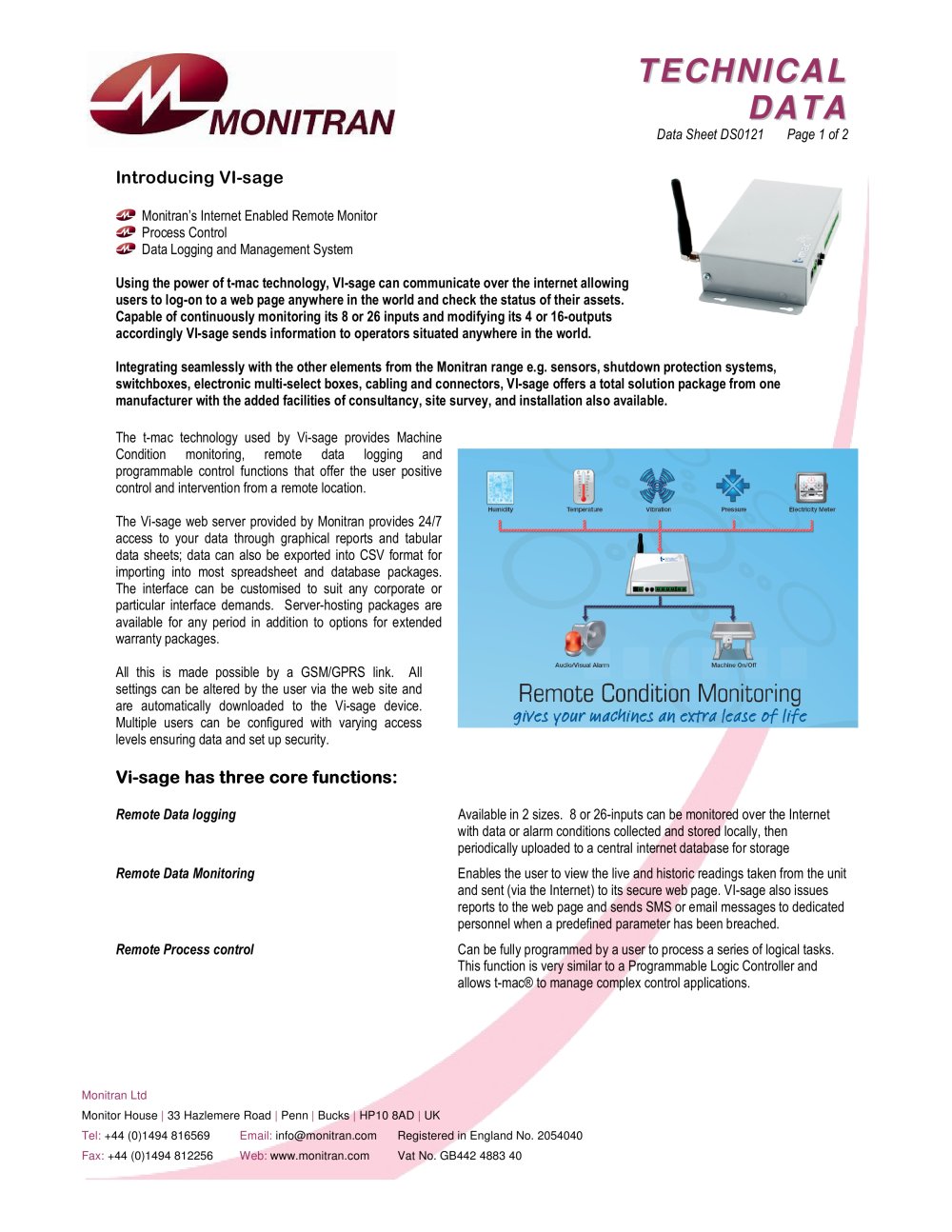

Multi-channel vibration monitoring system - 1

TECHNIICAL DATA Data Sheet DS0121 Page 1 of 2 Monitran Ltd Monitor House | 33 Hazlemere Road | Penn | Bucks | HP10 8AD | UK Tel: +44 (0)1494 816569 Email: info@monitran.com Registered in England No. 2054040 Fax: +44 (0)1494 812256 Web: www.monitran.com Vat No. GB442 4883 40 Introducing VI-sage Monitran’s Internet Enabled Remote Monitor Process Control Data Logging and Management System Using the power of t-mac technology, VI-sage can communicate over the internet allowing users to log-on to a web page anywhere in the world and check the status of their assets. Capable of continuously monitoring its 8 or 26 inputs and modifying its 4 or 16-outputs accordingly VI-sage sends information to operators situated anywhere in the world. Integrating seamlessly with the other elements from the Monitran range e.g. sensors, shutdown protection systems, switchboxes, electronic multi-select boxes, cabling and connectors, VI-sage offers a total solution package from one manufacturer with the added facilities of consultancy, site survey, and installation also available. The t-mac technology used by Vi-sage provides Machine Condition monitoring, remote data logging and programmable control functions that offer the user positive control and intervention from a remote location. The Vi-sage web server provided by Monitran provides 24/7 access to your data through graphical reports and tabular data sheets; data can also be exported into CSV format for importing into most spreadsheet and database packages. The interface can be customised to suit any corporate or particular interface demands. Server-hosting packages are available for any period in addition to options for extended warranty packages. All this is made possible by a GSM/GPRS link. All settings can be altered by the user via the web site and are automatically downloaded to the Vi-sage device. Multiple users can be configured with varying access levels ensuring data and set up security. Vi-sage has three core functions: Remote Data logging Available in 2 sizes. 8 or 26-inputs can be monitored over the Internet with data or alarm conditions collected and stored locally, then periodically uploaded to a central internet database for storage Remote Data Monitoring Enables the user to view the live and historic readings taken from the unit and sent (via the Internet) to its secure web page. VI-sage also issues reports to the web page and sends SMS or email messages to dedicated personnel when a predefined parameter has been breached. Remote Process control Can be fully programmed by a user to process a series of logical tasks. This function is very similar to a Programmable Logic Controller and allows t-mac® to manage complex control applications.

Open the catalog to page 1
Multi-channel vibration monitoring system - 2

TECHNIICAL DATA Data Sheet DS0121 Page 2 of 2 Monitran Ltd Monitor House | 33 Hazlemere Road | Penn | Bucks | HP10 8AD | UK Tel: +44 (0)1494 816569 Email: info@monitran.com Registered in England No. 2054040 Fax: +44 (0)1494 812256 Web: www.monitran.com Vat No. GB442 4883 40 We reserve the right to alter specifications without prior notice VI-sage Features: Input/Outputs 12 Analogue & Digital Channels (8 inputs & 4 outputs) 42 Analogue & Digital Channels (16 inputs & 4 outputs) Convert raw AD readings into SI units Using table based linearization techniques Hysteresis on conditions Time...

Open the catalog to page 2
