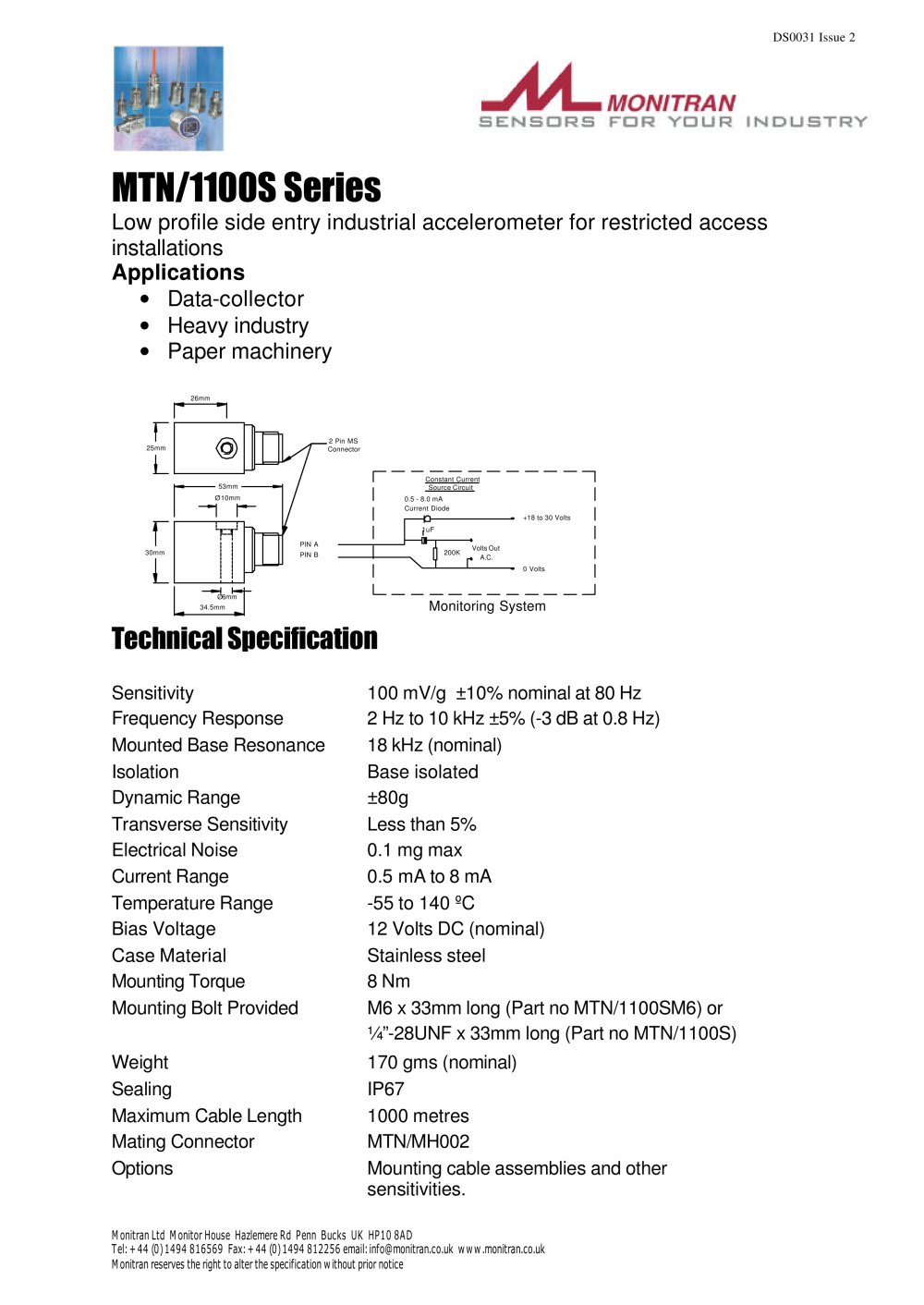

DS0031 Issue 2 Monitran Ltd Monitor House Hazlemere Rd Penn Bucks UK HP10 8AD Tel: +44 (0) 1494 816569 Fax: +44 (0) 1494 812256 email: info@monitran.co.uk www.monitran.co.uk Monitran reserves the right to alter the specification without prior notice MTN/1100S Series Low profile side entry industrial accelerometer for restricted access installations Applications · Data-collector · Heavy industry · Paper machinery 2 Pin MS Connector 30mm Ø6mm 34.5mm 26mm 53mm Ø10mm 25mm PIN B PIN A Volts Out A.C. Constant Current Source Circuit 0.5 - 8.0 mA Current Diode 1uF 200K +18 to 30 Volts 0 Volts Monitoring System Technical Specification Sensitivity 100 mV/g ±10% nominal at 80 Hz Frequency Response 2 Hz to 10 kHz ±5% (-3 dB at 0.8 Hz) Mounted Base Resonance 18 kHz (nominal) Isolation Base isolated Dynamic Range ±80g Transverse Sensitivity Less than 5% Electrical Noise 0.1 mg max Current Range 0.5 mA to 8 mA Temperature Range -55 to 140 ºC Bias Voltage 12 Volts DC (nominal) Case Material Stainless steel Mounting Torque 8 Nm Mounting Bolt Provided M6 x 33mm long (Part no MTN/1100SM6) or ¼”-28UNF x 33mm long (Part no MTN/1100S) Weight 170 gms (nominal) Sealing IP67 Maximum Cable Length 1000 metres Mating Connector MTN/MH002 Options Mounting cable assemblies and other sensitivities.
