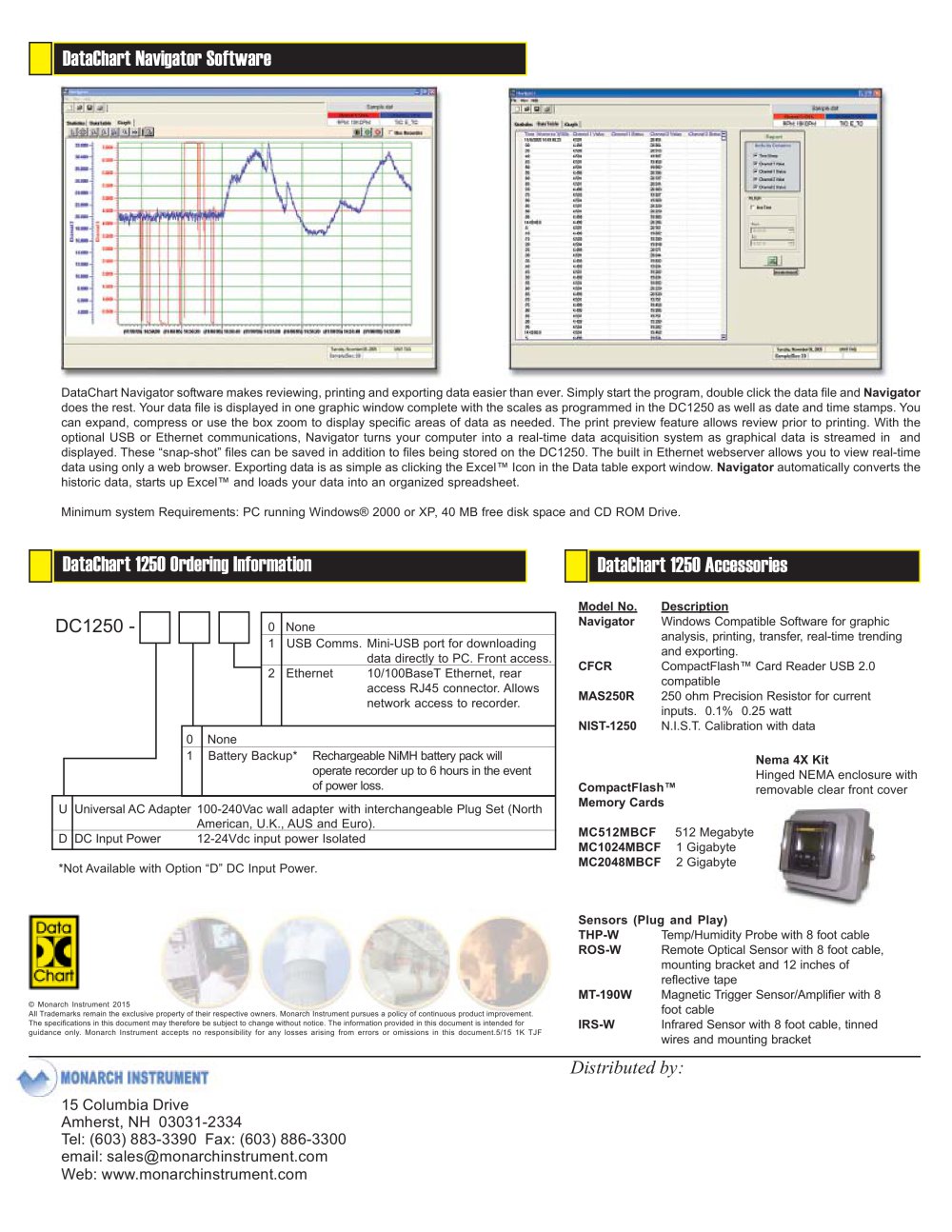

| | | DataChart Navigator Software | | |
| | | |
| | | DataChart Navigator software makes reviewing, printing and exporting data easier than ever. Simply start the program, double click the data file and Navigator does the rest. Your data file is displayed in one graphic window complete with the scales as programmed in the DC1250 as well as Date and time stamps. You can expand, compress or use the box zoom to display specific areas of data as needed. The print preview feature allows review prior to printing. Exporting data is as simple as clicking the Excel™ Icon in the Data table export window. Navigator automatically converts the historic data, starts up Excel™ and loads your data into an organized spreadsheet. Minimum system Requirements: PC running Windows® 2000 or XP, 10 MB free disk space and CD ROM Drive. | | |
| | | |
| | | □I | | I □ | | |
| | | DataChart 1250 Ordering Information | | |
| | | |
| | | |
| | | Model No. Navigator | | Description Windows Compatible Software for graphic analysis, printing transfer and exporting CompactFlash™ Card Reader USB 2.0 compatible 250 ohm Precision resistor for current inputs. 0.1% 0.5 watt N.I.S.T. Calibration with data | | |
| | | DC1250 | | |
| | | _0_ | | |
| | | |
| | | |
| | | |
| | | CFCR | | |
| | | None USB Comms. Mini-USB port for downloading data directly to PC. Front access. | | |
| | | |
| | | MAS250R | | |
| | | |
| | | |
| | | NIST-1250 | | |
| | | None | | |
| | | |
| | | CompactFlash™ Memory Cards* MC32MBCF 32 Megabyte MC64MBCF 64 Megabyte MC128MBCF 128 Megabyte MC256MBCF 256 Megabyte *All CF cards are Industrial Grade Sensors (Plug and Play) | | |
| | | |
| | | Standard AC Adapter 100-240Vac wall adapter with North American Plug | | |
| | | |
| | | Universal AC Adapter 100-240Vac wall adapter with interchangeable Plug Set | | |
| | | |
| | | D I DC Input Power | | |
| | | 12-24Vdc input power Isolated | | |
| | | I_ | | |
| | | |
| | | |
| | | THS-W ROS-W | | Temp/Humidity Sensor with 8 foot cable Remote Optical sensor with 8 foot cable, mounting bracket and 12 inches of reflective tape Magnetic Trigger Sensor/Amplifier with 8 foot cable | | |
| | | |
| | | *Not Available with Option "D" DC Input Power. | | |
| | | |
| | | |
| | | MT-190W | | |
| | | |
| | | IRS-W | | |
| | | |
| | | |
| | | © Monarch Instrument 2006 All Trademarks remain the exclusive property of thier respective owners. Monarch Instrument pursues a policy of continuous product imporvement. The specifications in this document may therefore be subject to change without notice. The information provided in this document is intended for guidance only. Monarch Instrument accepts no responsibility for any losses arising from errors or ommissions in this document. | | |
| | | |
