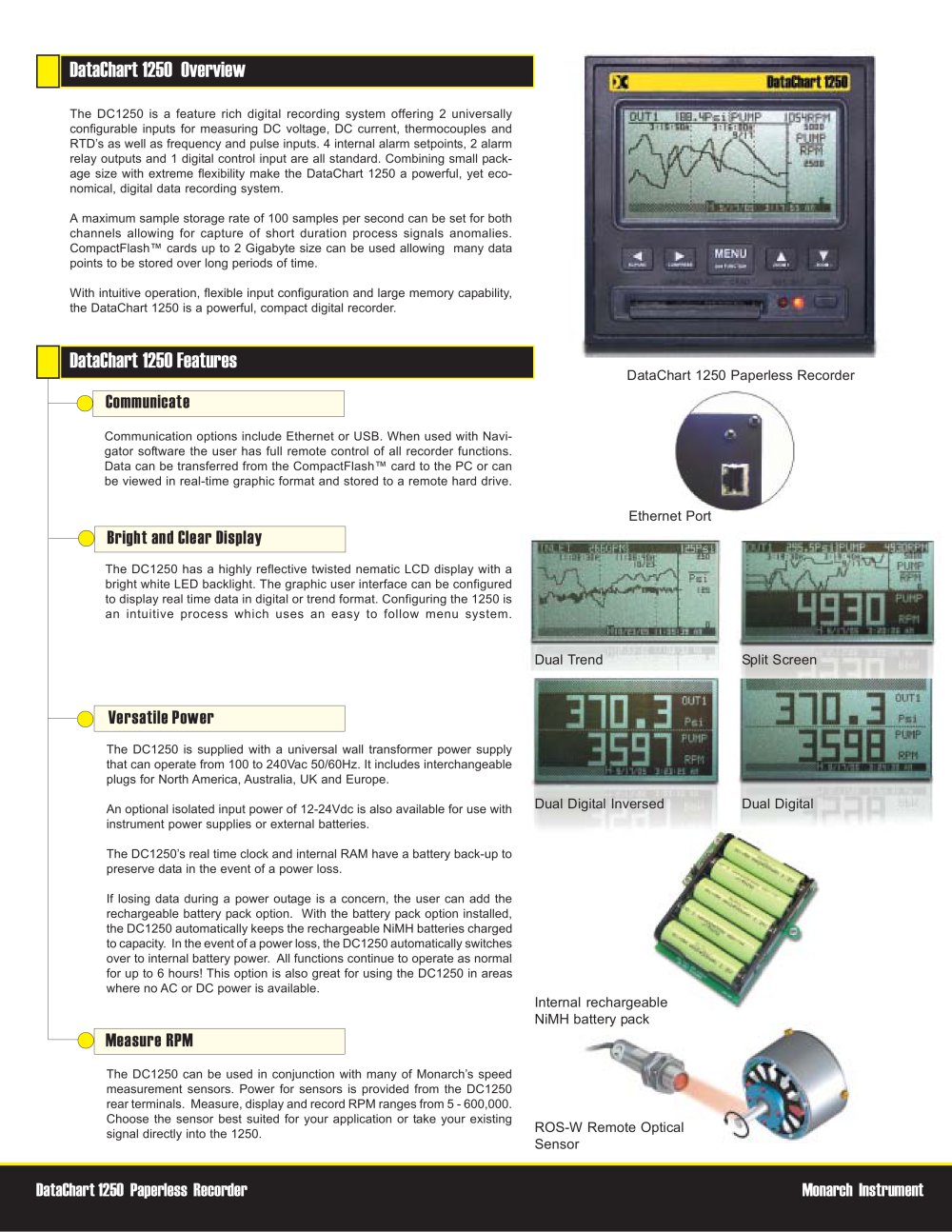

DataChart 1250 Overview
Bright and Clear Display
™ cards up to 2 Gigabyte s in size can be used allowing many data The DC1250 is a feature rich digital recording system offering 2 universallyconfigurable isolated inputs for measuring DC voltage, DC current,
thermocouples,
RTD’s as well as frequency and pulse inputs. 4 internal alarm setpoints, 2 alarm
relay outputs and 1
digital control input are all standard. Combining small pack-
age size with extreme flexibility make the DataChart 1250 a powerful, yet eco-
nomical, digital data recording system.A maximum sample storage rate of 100 samples per second can be set for bothchannels allowing for capture of short duration process signals anomalies.
CompactFlash points to be stored over long periods of time.With intuitive operation, flexible input configuration and large memory capability,the DataChart 1250 is a powerful, compact digital
industrial recorder.
The DC1250 has a highly reflective twisted nematic
Industrial lcd display with abright white LED backlight. The graphic user interface can be config-
ured to display real time data in digital or trend format. Configuring the
1250 is an intuitive process which uses an easy to follow menu system.
DataChart 1250 Features Communicate
A front accessible USB port is available. It provides access to data
stored on the CompactFlash™ card. Simply connect your laptop to the
DC1250 using the supplied USB cable to extract your data or collect
real-time information.
USB Port Dual Trend Split Screen
Versatile Power
The DC1250 is supplied with a universal wall transformer power supply(North American plug) that can operate from 100 to 240Vac 50/60Hz. An
optional transformer with an interchangeable plug set is available.An isolated input power of 12-24Vdc is also available for use with instru-ment
power supplies or external batteries.The DC1250’s real time clock and internal RAM have a battery back-up topreserve data in the event of a power loss.If losing data during a power outage is a concern, the user can add therechargeable battery pack option. With the battery pack option installed,
the DC1250 automatically keeps the rechargeable
Nimh batteries charged
to capacity. In the event of a power loss, the DC1250 automatically switches
over to internal battery power. All functions continue to operate as normal
for up to 8 hours! This option is also great for using the DC1250 in areas
where no AC or DC power is available.
Dual DigitalDual Digital Inversed
DataChart 1250 Paperless recorder Internal rechargeable
NiMH battery pack
Measure RPM
The DC1250 can be used in conjunction with many of Monarch’s speed
measurement sensors. Power for sensors is provided from the DC1250
rear terminals. Measure, display and record RPM ranges from 5 - 600,000.
Choose the sensor best suited for your application or take your existing
signal (0 - 5V TTL) directly into the 1250.
DataChart 1250 Paperless Recorder Monarch Instrument
