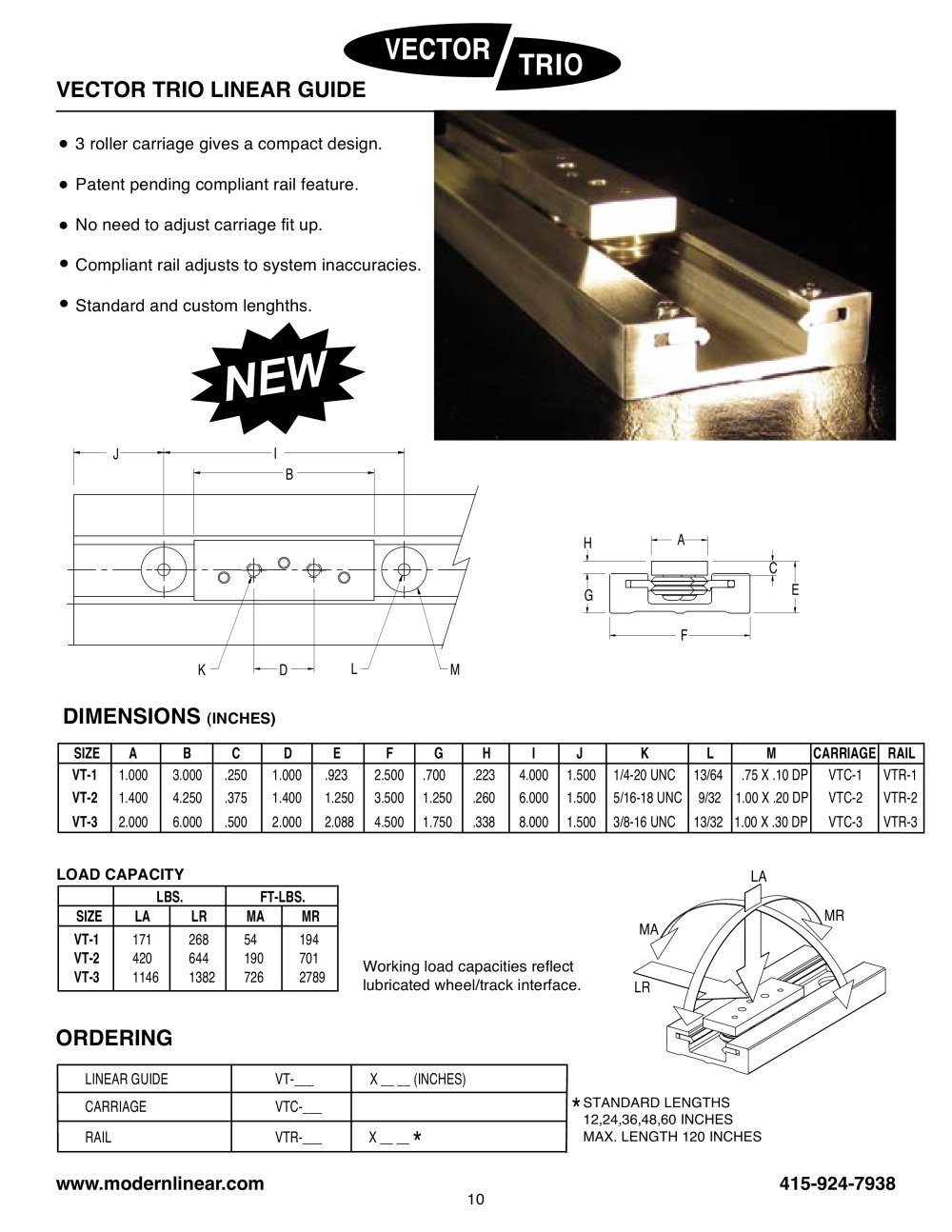

VECTOR TRIO LINEAR GUIDE

3 roller carriage gives a compact design. Patent pending compliant rail feature. No need to adjust carriage fit up. Compliant rail adjusts to system inaccuracies. Standard and custom lenghths.



- Q		A\ O A\	r
	V	O y Y O	V


H \		1
_i C
1 G		^f E
	--F--

DIMENSIONS (inches)


size	a	b	c	d	e	f	g	h	i	j	k	l	m	carriage	rail
vt-1	1.000	3.000	.250	1.000	.923	2.500	.700	.223	4.000	1.500	1/4-20 UNC	13/64	.75 X .10 DP	VTC-1	VTR-1
vt-2	1.400	4.250	.375	1.400	1.250	3.500	1.250	.260	6.000	1.500	5/16-18 UNC	9/32	1.00X.20 DP	VTC-2	VTR-2
vt-3	2.000	6.000	.500	2.000	2.088	4.500	1.750	.338	8.000	1.500	3/8-16 UNC	13/32	1.00X.30 DP	VTC-3	VTR-3

load capacity


	lbs.			ft-lbs.
size	la	lr		ma	mr
vt-1	171		268	54	194
vt-2	420		644	190	701
vt-3	1146		1382	726	2789

Working load capacities reflect lubricated wheel/track interface.

ORDERING


LINEAR GUIDE	VT-_	X__(INCHES)
CARRIAGE	VTC-_
RAIL	VTR-	X__*

*STANDARD LENGTHS 12,24,36,48,60 INCHES MAX. LENGTH 120 INCHES
