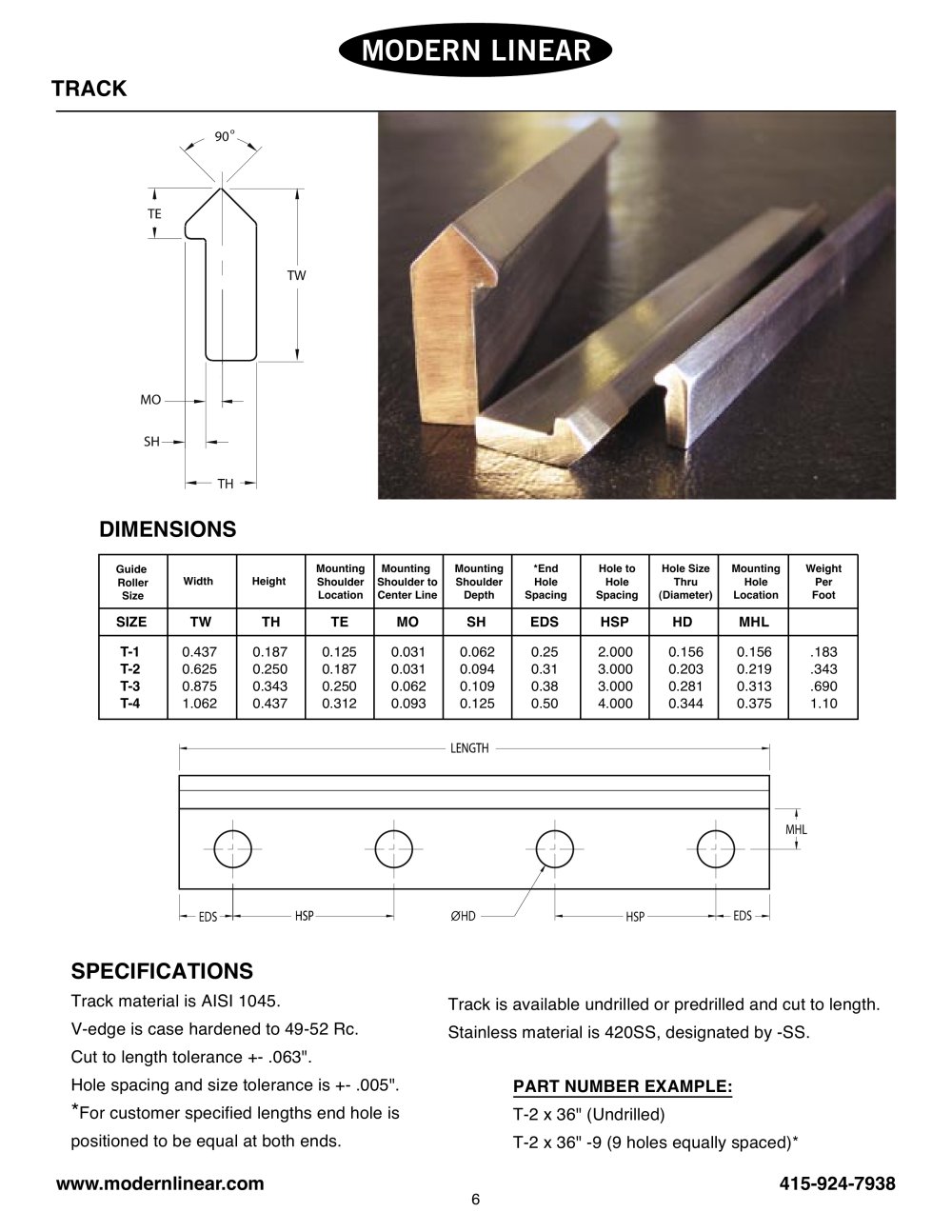

MODERN LINEAR
TRACK
DIMENSIONS
Guide
Mounting
Mounting
Mounting
*End
Hole to
Hole Size
Mounting
Weight
Roller
Width
Height
Shoulder
Shoulder to
Shoulder
Hole
Hole
Thru
Hole
Per
Size
Location
Center Line
Depth
Spacing
Spacing
(Diameter)
Location
Foot
SIZE
TW
TH
TE
MO
SH
EDS
HSP
HD
MHL
T-1
0.437
0.187
0.125
0.031
0.062
0.25
2.000
0.156
0.156
.183
T-2
0.625
0.250
0.187
0.031
0.094
0.31
3.000
0.203
0.219
.343
T-3
0.875
0.343
0.250
0.062
0.109
0.38
3.000
0.281
0.313
.690
T-4
1.062
0.437
0.312
0.093
0.125
0.50
4.000
0.344
0.375
1.10
LENGTH
MHL
SPECIFICATIONS
Track material is AIS11045.
V-edge is case hardened to 49-52 Rc.
Cut to length tolerance +- .063".
Hole spacing and size tolerance is +- .005".
*For customer specified lengths end hole is
positioned to be equal at both ends.
Track is available undrilled or predrilled and cut to length. Stainless material is 420SS, designated by -SS.
PART NUMBER EXAMPLE:
T-2 x 36" (Undrilled)
T-2 x 36" -9 (9 holes equally spaced)*
www.modernlinear.com
415-924-7938
6
