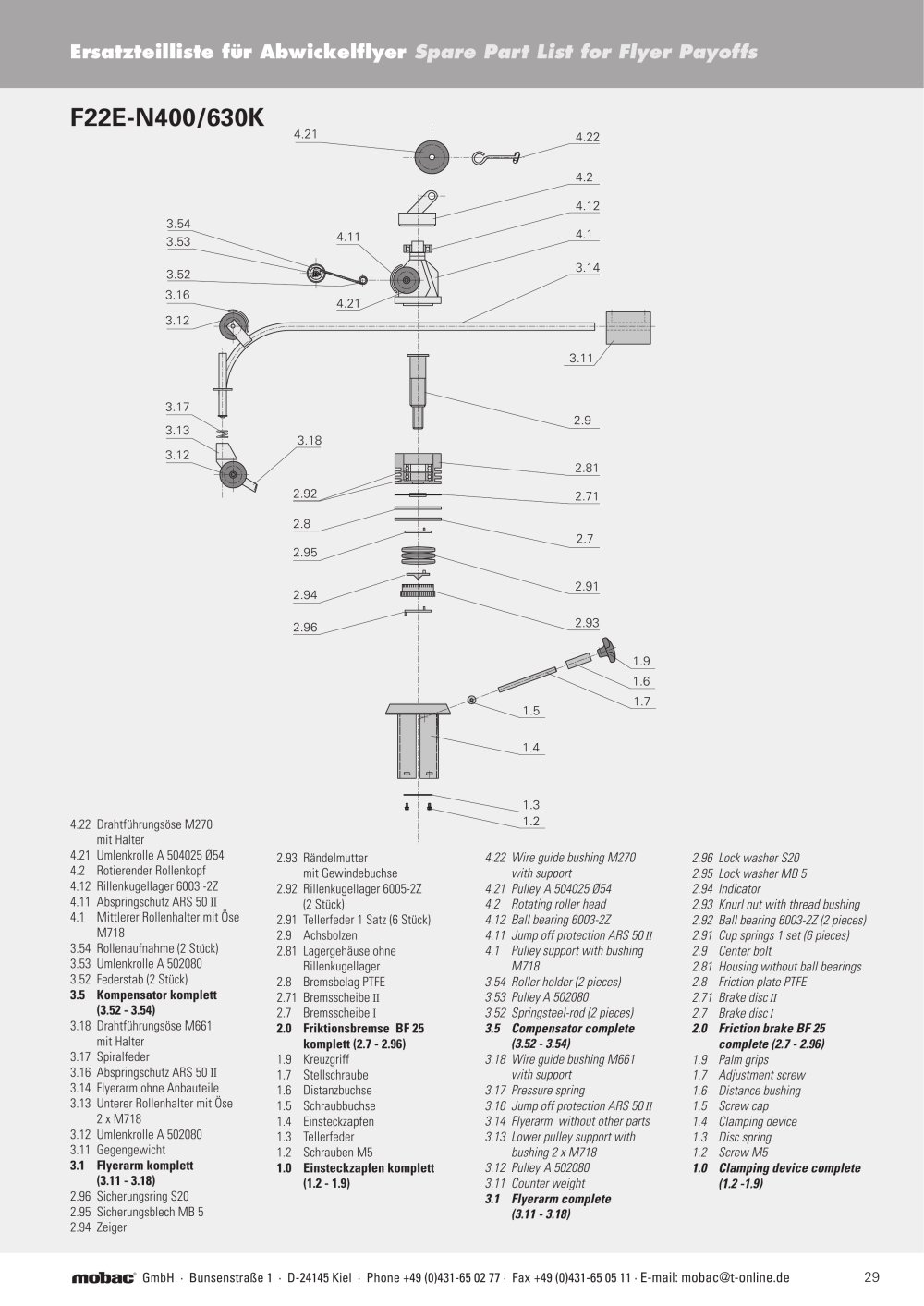

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:12.00pt "Arial", sans-serif; } .font6 { font:15.00pt "Arial", sans-serif; } .font7 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:7.00pt "Microsoft Sans Serif", sans-serif; } Ersatzteilliste fur Abwickelflyer Spare Part List for Flyer Payoffs F21G-Gfk630/800 F23G-Gfk560/800 4.35 4.21 4.14 4.15 5.14 Schraube M6 5.13 Mutter M6 5.12 Gegengewicht 5.11 Vierkantrohr 4.35 Abspringschutz 4.3 Winkelblech fur občre Rolle 4.21 Umlenkrolle RS 98 4.15 Unterlegscheibe M20 4.14 Mutter M20 3.45 Drahtfuhrungsôse M612 mit Halter (siehe Tabelle 1) 3.44 Umlenkrolle (s. Tabelle 1) 3.43 Rollengehause (s. Tabelle 1) 3.42 Flyer-Gfk-Stab 1 Satz (2 Stuck) (siehe Tabelle 2) 3.41 Obere Flyerbefestigung 3.4 Flyerarm komplett (3.41 - 3.45) (siehe Tabelle 2) 3.34 Drahtfuhrungsôse M 115 mit Halter 3.27 Schraube M6 (4 Stuck) 3.26 Mittlerer Rollenhalter mit Ose M115 3.25 Umlenkrolle A 504025 054 2.93 Lochmutter M25 x 1,5 (2 Stuck) 2.92 Rillenkugellager 6005 -2Z (2 Stuck) 2.91 Tellerfeder 1 Satz (6 Stuck) 2.9 Achsbolzen 2.81 Lagergehause ohne Rillenkugellager 2.7 Rollreibungsbremse komplett (2.81 - 2.93) 3.44 Tabelle 1 Table 1 5.14 Screw M6 5.13 Nut M6 5.12 Counter weight 5.11 Counter weight arm 4.35 Wirejump offprotection 4.3 Pulley support 4.21 Pulley RS 98 4.15 Washer M20 4.14 Nut M20 3.45 Wire guide bushing M612 with support (s. table 1) 3.44 Pulley (s. table 1) 3.43 Pulley housing (s. table 1) 3.42 Flyer carbon rod 1 set (2 pieces) (s. table 2) 3.41 Upper flyer joint 3.4 Flyerarm complčte (3.41 - 3.45) (s. table 2) 3.34 Wire guide bushing M115 with support 3.27 Screw M6 (4 pieces) 3.26 Pulley support with bushing M115 3.25 Pulley A 504025 054 2.93 NutM25x 1,5 2.92 Ball bearing 6005-2Z (2 pieces) 2.91 Cup springs 1 set (6 pieces) 2.9 Center bolt 2.81 Housing without ball bearings 2.7 Rolling friction brake complete (2.81 - 2.93) Flyer Rolle 0 Pulley 0 3.45 3.44 3.43 F21 G-Gfk 630/800 40 DHM 612 A 208005 RG 40 F23 G-Gfk 630/800 80 DHM 612 A 504025 RG 80 Tabelle 2 Table 2 Flyer Spulen 0 Spool Rolle 0 Pulley 0 3.42 3.4 F21 G-Gfk 630 630 40 630 RH 40 630 RHF 40 F21 G-Gfk 800 800 40 800 RH 40 800 RHF 40 F23 G-Gfk 560 560 80 560 RH 80 560 RHF 80 F23 G-Gfk 630 630 80 630 RH 80 630 RHF 80 F23 G-Gfk 800 800 80 800 RH 80 800 RHF 80 mobac GmbH • BunsenstraBe 1 • D-24145 Kiel • Phone +49 (0)431-65 02 77 • Fax +49 (0)431-65 05 11 • E-mail: mobac@t-online.de 29
