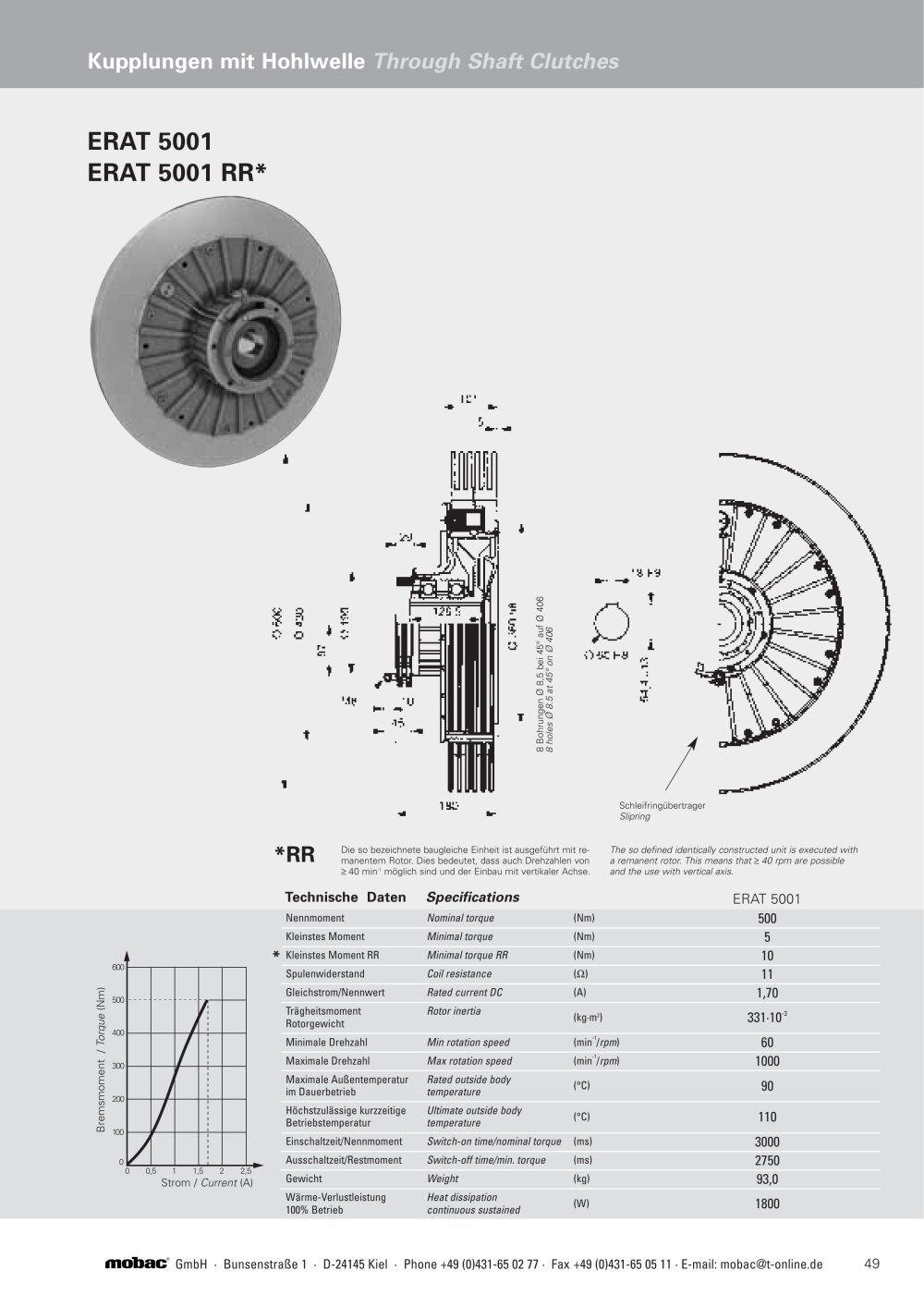

magpulv09-final-druck.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Franklin Gothic Medium", sans-serif; } .font1 { font:5.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:6.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:6.50pt "Franklin Gothic Medium", sans-serif; } .font4 { font:7.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font6 { font:13.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:15.00pt "Franklin Gothic Medium", sans-serif; } .font8 { font:8.00pt "Georgia", serif; } .font9 { font:4.00pt "Trebuchet MS", sans-serif; } Cupplungen mit Hohlwelle Through Shaft Clutches ERAT 5001 ERAT 5001 RR* CD Co Schleifringubertrager Slipring *RR Die so bezeichnete baugleiche Einheit ist ausgefuhrt mit re- The so defined identically constructed unit is executed with manentem Rotor. Dies bedeutet, dass auch Drehzahlen von a remanent rotor. This means that > 40 rpm are possible > 40 min-1 moglich sind und der Einbau mit vertikaler Achse. and the use with vertical axis. 600 Technische Daten Spécifications ERAT 5001 Nennmoment Nominal torque (Nm) 500 Kleinstes Moment Minimal torque (Nm) 5 Kleinstes Moment RR Minimal torque RR (Nm) 10 Spulenwiderstand Coil resistance (n) 11 Gleichstrom/Nennwert Rated current DC (A) 1,70 Tragheitsmoment Rotorgewicht Rotor inertia (kg-m2) 331-10-3 Minimale Drehzahl Min rotation speed (min-1/rpm) 60 Maximale Drehzahl Max rotation speed (min-1/rpm) 1000 Maximale AulSentemperatur im Dauerbetrieb Rated outside body temperature (°C) 90 Hôchstzulassige kurzzeitige Betriebstemperatur Ultimate outside body temperature (°C) 110 Einschaltzeit/Nennmoment Switch-on time/nominal torque (ms) 3000 Ausschaltzeit/Restmoment Switch-off time/min. torque (ms) 2750 Gewicht Weight (kg) 93,0 Warme-Verlustleistung 100% Betrieb Heat dissipation continuous sustained (W) 1800 500 400 c CD o 5 300 200 100 0 0 0,5 1 1,5 2 2,5 Strom / Current (A) fflObaC GmbH - BunsenstralSe 1 - D-24145 Kiel - Phone +49 (0)431-65 02 77 - Fax+49 (0)431-65 05 11 - E-mail: mobac@t-online.c 49
