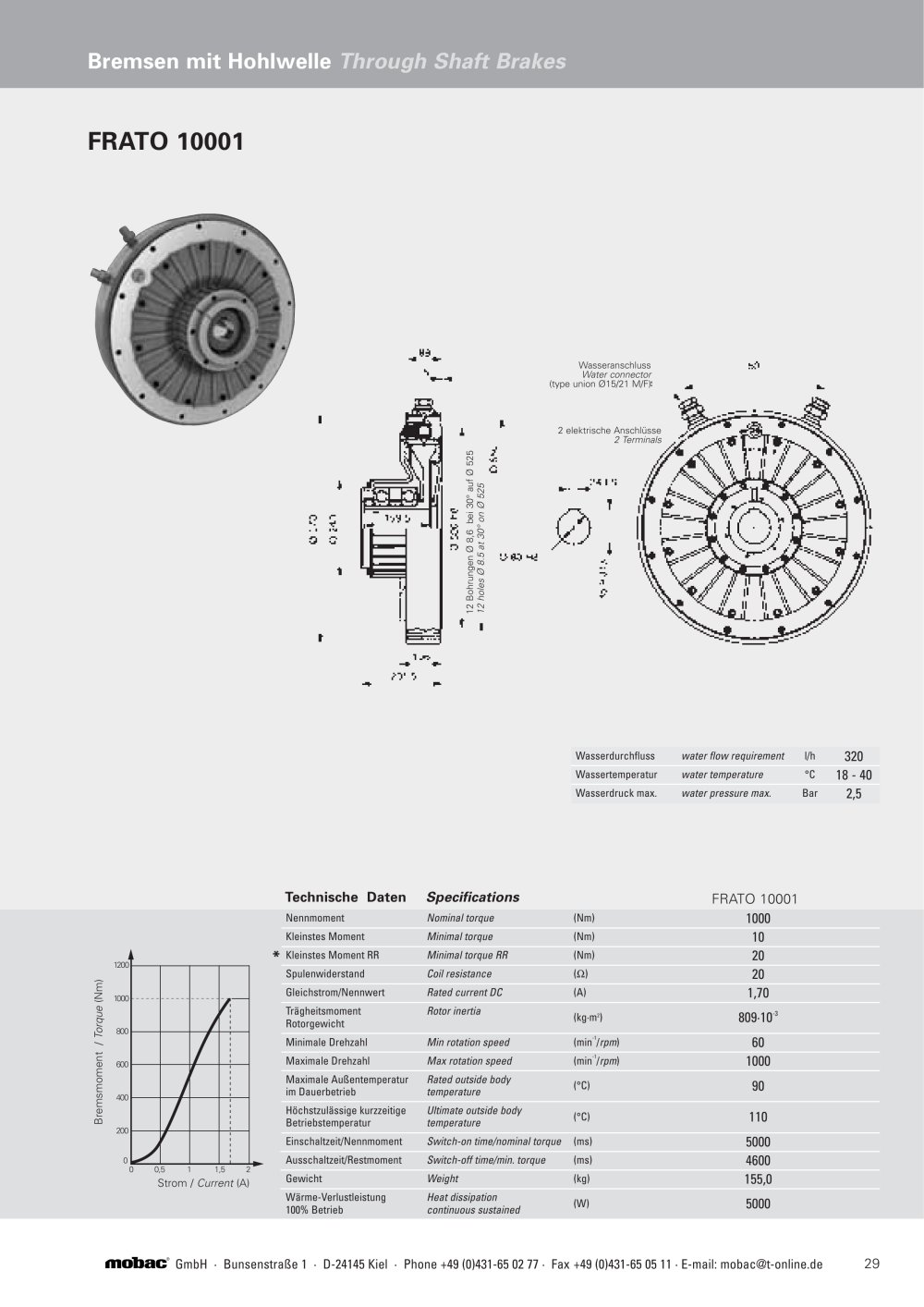

magpulv09-final-druck.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Franklin Gothic Medium", sans-serif; } .font1 { font:5.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:6.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:7.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:13.00pt "Franklin Gothic Medium", sans-serif; } .font6 { font:15.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:8.00pt "Georgia", serif; } .font8 { font:6.00pt "Microsoft Sans Serif", sans-serif; } Bremsen mit Hohlwelle Through Shaft Brakes FRATO 10001 89 5 Wasseranschluss Water connector (type union 015/21 M/F) 2 elektrische Anschlusse 2 Terminais 24 E9 0 80 H8 ^ 106 < 201,5 Wasserdurchfluss water flow requirement l/h 320 Wassertemperatur water temperature °C 18 - 40 Wasserdruck max. water pressure max. Bar 2^ Technische Daten Spécifications FRATO 10001 Nennmoment Nominal torque (Nm) 1000 Kleinstes Moment Minimal torque (Nm) 10 1200 * Kleinstes Moment RR Minimal torque RR (Nm) 20 Spulenwiderstand Coil resistance (n) 20 1000 Gleichstrom/Nennwert Rated current DC (A) 1,70 / Torque • 800 Tragheitsmoment Rotorgewicht Rotor inertia (kg-m2) 809-10-3 Minimale Drehzahl Min rotation speed (min-1/rpm) 60 Bremsmoment 600 Maximale Drehzahl Max rotation speed (min-1/rpm) 1000 400 Maximale AulSentemperatur im Dauerbetrieb Rated outside body temperature (°C) 90 200 Hôchstzulassige kurzzeitige Betriebstemperatur Ultimate outside body temperature (°C) 110 Einschaltzeit/Nennmoment Switch-on time/nominal torque (ms) 5000 0 ^ Ausschaltzeit/Restmoment Switch-off time/min. torque Weight (ms) 4600 0 0,5 1 1,5 2 Strom / Current (A) Gewicht (kg) 155,0 Warme-Verlustleistung 100% Betrieb Heat dissipation continuous sustained (W) 5000 fflObaC GmbH - BunsenstraBe 1 - D-24145 Kiel - Phone +49 (0)431-65 02 77 - Fax+49 (0)431-65 05 11 - E-mail: mobac@t-online.c 29
