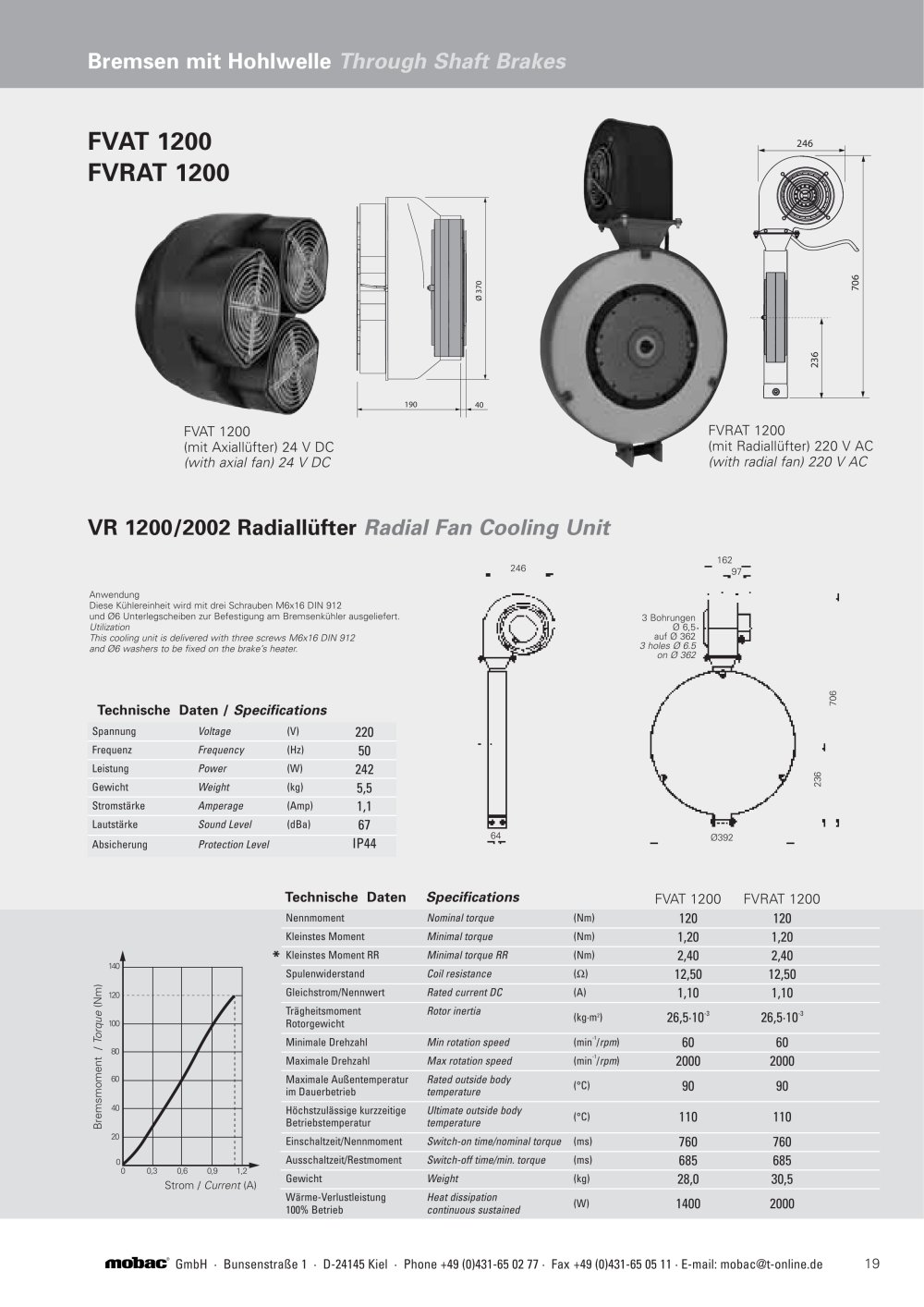

magpulv09-final-druck.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:9.00pt "Georgia", serif; } Bremsen mit Hohlwelle Through Shaft Brakes FVAT 1200 FVRAT 1200 FVRAT 1200 (mit Radiallùfter) 220 V AC (with radial fan) 220 V AC FVAT 1200 (mit Axiallùfter) 24 V DC (with axial fan) 24 V DC VR 1200/2002 Radiallùfter Radial Fan Cooling Unit Anwendung Diese Kùhlereinheit wird mit drei Schrauben M6x16 DIN 912 und 06 Unterlegscheiben zur Befestigung am Bremsenkùhler ausgeliefert. Utilization This cooling unit is delivered with three screws M6x16 DIN 912 and 06 washers to be fixed on the brakes heater. 162 Technische Daten / Spécifications Spannung Voltage (V) 220 Frequenz Frequency (Hz) 50 Leistung Power (W) 242 Gewicht Weight (kg) 5,5 Stromstarke Amperage (Amp) 1,1 Lautstarke Sound Level (dBa) 67 Absicherung Protection Level IP44 Technische Daten Specifications FVAT 1200 FVRAT 1200 Nennmoment Nominal torque (Nm) 120 120 Kleinstes Moment Minimal torque (Nm) 1,20 1,20 140 * Kleinstes Moment RR Minimal torque RR (Nm) 2,40 2,40 Spulenwiderstand Coil resistance (Q) 12,50 12,50 Bremsmoment / Torque (Nm) Gleichstrom/Nennwert Rated current DC (A) 1,10 1,10 Tragheitsmoment Rotorgewicht Rotor inertia (kg-m2) 26,5-10-3 26,5-10-3 Minimale Drehzahl Min rotation speed (min-1/rpm) 60 60 Maximale Drehzahl Max rotation speed (min-1/rpm) 2000 2000 Maximale AuRentemperatur im Dauerbetrieb Rated outside body temperature (°C) 90 90 Hôchstzulassige kurzzeitige Betriebstemperatur Ultimate outside body temperature (°C) 110 110 20 Einschaltzeit/Nennmoment Switch-on time/nominal torque (ms) 760 760 0 „ Ausschaltzeit/Restmoment Switch-off time/min. torque (ms) 685 685 0 0,3 0,6 0,9 1,2' . Strom / Current (A) Warme-Verlustleistung 100% Betrieb Weight Heat dissipation continuous sustained (kg) (W) 28,0 1400 30,5 2000 fllObaC GmbH - BunsenstraRe 1 - D-24145 Kiel - Phone +49 (0)431-65 02 77 - Fax+49 (0)431-65 05 11 - E-mail: mobac@t-online.de
