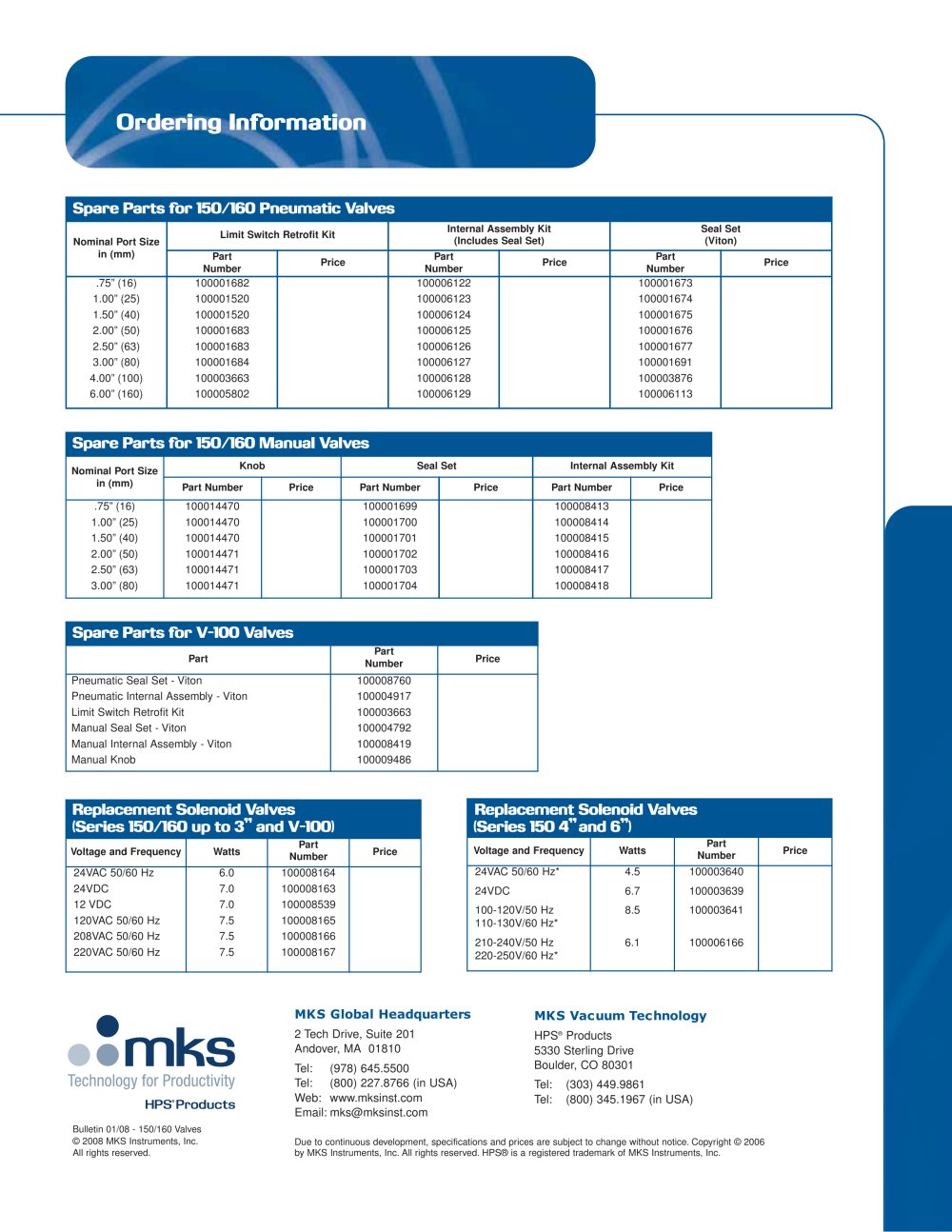

Due to continuous development, specifications and prices are subject to change without notice. Copyright © 2006 by MKS Instruments, Inc. All rights reserved. HPS® is a registered trademark of MKS Instruments, Inc. MKS Vacuum Technology HPS® Products 5330 Sterling Drive Boulder, CO 80301 Tel: (303) 449.9861 Tel: (800) 345.1967 (in USA) Bulletin 01/08 - 150/160 Valves © 2008 MKS Instruments, Inc. All rights reserved. MKS Global Headquarters 2 Tech Drive, Suite 201 Andover, MA 01810 Tel: (978) 645.5500 Tel: (800) 227.8766 (in USA) Web: www.mksinst.com Email: mks@mksinst.com Ordering Information Spare Parts for 150/160 Manual Valves Nominal Port Size in (mm) Knob Seal Set Internal Assembly Kit Part Number Price Part Number Price Part Number Price .75” (16) 1.00” (25) 1.50” (40) 2.00” (50) 2.50” (63) 3.00” (80) 100014470 100014470 100014470 100014471 100014471 100014471 100001699 100001700 100001701 100001702 100001703 100001704 100008413 100008414 100008415 100008416 100008417 100008418 Replacement Solenoid Valves (Series 150/160 up to 3” and V-100) Voltage and Frequency Watts Part Number Price 24VAC 50/60 Hz 24VDC 12 VDC 120VAC 50/60 Hz 208VAC 50/60 Hz 220VAC 50/60 Hz 6.0 7.0 7.0 7.5 7.5 7.5 100008164 100008163 100008539 100008165 100008166 100008167 Spare Parts for 150/160 Pneumatic Valves Nominal Port Size in (mm) Limit Switch Retrofit Kit Internal Assembly Kit (Includes Seal Set) Seal Set (Viton) Part Number Price Part Number Price Part Number Price .75” (16) 1.00” (25) 1.50” (40) 2.00” (50) 2.50” (63) 3.00” (80) 4.00” (100) 6.00” (160) 100001682 100001520 100001520 100001683 100001683 100001684 100003663 100005802 100006122 100006123 100006124 100006125 100006126 100006127 100006128 100006129 100001673 100001674 100001675 100001676 100001677 100001691 100003876 100006113 Spare Parts for V-100 Valves Part Part Number Price Pneumatic Seal Set - Viton Pneumatic Internal Assembly - Viton Limit Switch Retrofit Kit Manual Seal Set - Viton Manual Internal Assembly - Viton Manual Knob 100008760 100004917 100003663 100004792 100008419 100009486 Replacement Solenoid Valves (Series 150 4”and 6”) Voltage and Frequency Watts Part Number Price 24VAC 50/60 Hz* 24VDC 100-120V/50 Hz 110-130V/60 Hz* 210-240V/50 Hz 220-250V/60 Hz* 4.5 6.7 8.5 6.1 100003640 100003639 100003641 100006166
