Heated Ball Valves - 1

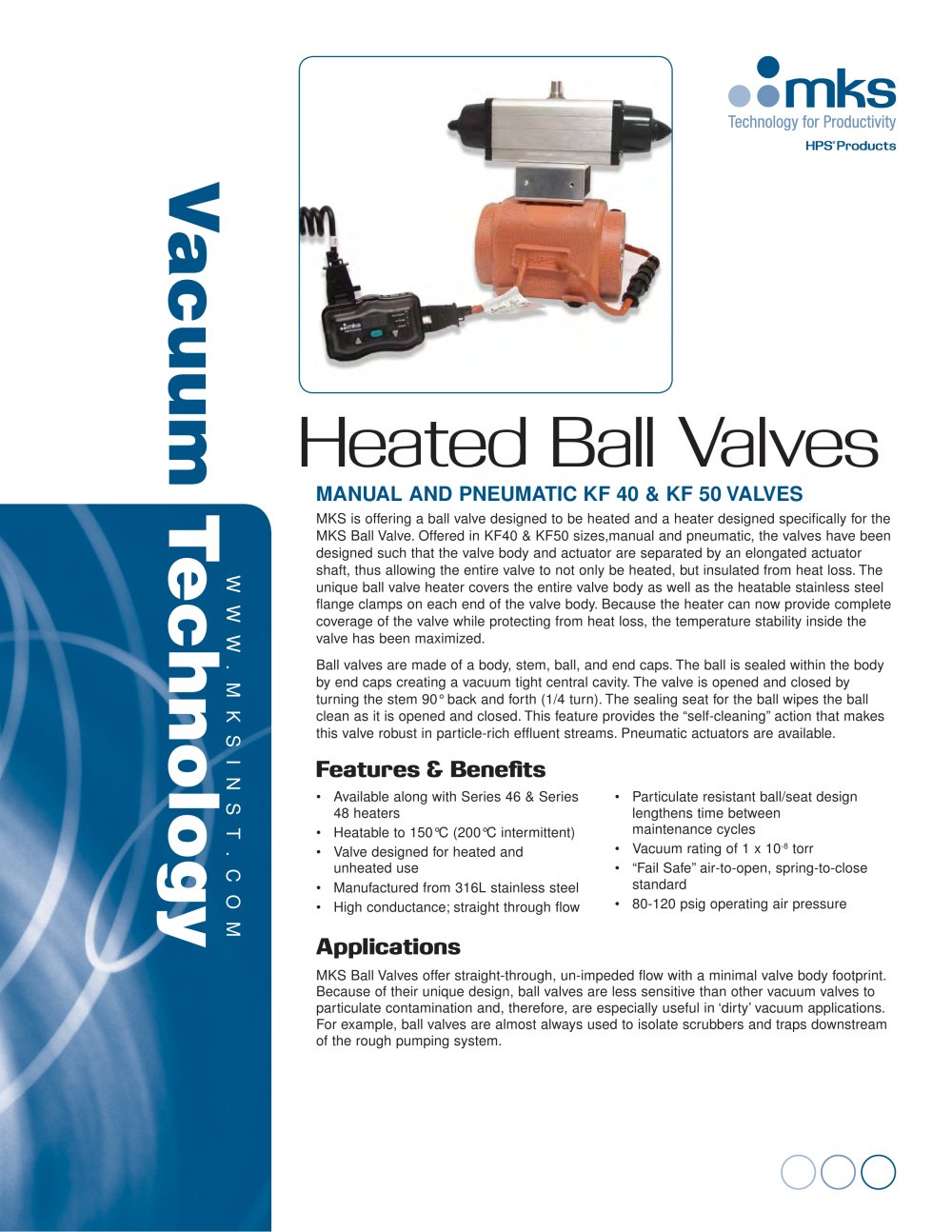

W W W . M K S I N S T . C O M Vacuum Technology Heated Ball Valves MANUAL AND PNEUMATIC KF 40 & KF 50 VALVES MKS is offering a ball valve designed to be heated and a heater designed specifi cally for the MKS Ball Valve. Offered in KF40 & KF50 sizes,manual and pneumatic, the valves have been designed such that the valve body and actuator are separated by an elongated actuator shaft, thus allowing the entire valve to not only be heated, but insulated from heat loss. The unique ball valve heater covers the entire valve body as well as the heatable stainless steel fl ange clamps on each end of the valve body. Because the heater can now provide complete coverage of the valve while protecting from heat loss, the temperature stability inside the valve has been maximized. Ball valves are made of a body, stem, ball, and end caps. The ball is sealed within the body by end caps creating a vacuum tight central cavity. The valve is opened and closed by turning the stem 90° back and forth (1/4 turn). The sealing seat for the ball wipes the ball clean as it is opened and closed. This feature provides the “self-cleaning” action that makes this valve robust in particle-rich effl uent streams. Pneumatic actuators are available. Features & Benefi ts • Available along with Series 46 & Series 48 heaters • Heatable to 150°C (200°C intermittent) • Valve designed for heated and unheated use • Manufactured from 316L stainless steel • High conductance; straight through fl ow Applications MKS Ball Valves offer straight-through, un-impeded fl ow with a minimal valve body footprint. Because of their unique design, ball valves are less sensitive than other vacuum valves to particulate contamination and, therefore, are especially useful in ‘dirty’ vacuum applications. For example, ball valves are almost always used to isolate scrubbers and traps downstream of the rough pumping system. • Particulate resistant ball/seat design lengthens time between maintenance cycles • Vacuum rating of 1 x 10-8 torr • “Fail Safe” air-to-open, spring-to-close standard • 80-120 psig operating air pressure

Open the catalog to page 1
Heated Ball Valves - 2

Ball Valve Heaters MKS Ball Valves are specifi cally designed to withstand internal temperatures as high as 150°C to limit contaminant buildup and reduce system maintenance. MKS Ball valvescan be heated with MKS Series 46 or Series 48 Heaters.The heaters’ molded shapes conform to the hardware, minimizing gaps and subsequent heat loss. Using a patented process, silicone foam insulation is bonded to the outside of a reinforced silicone heater mat, resulting in external temperatures that are safe for human contact and meet OSHA safety requirements. MKS Series 46 Heaters MKS Series 46 Heaters,...

Open the catalog to page 2
Heated Ball Valves - 3

Series 48 Ordering Information Series 48 Heaters - Part Number Confi gurator Series 48 Heater Part Number 48XX-XXXX Controller -1 Temperature Setpoint XXX Control Options -X Cable Form -X Cable Length X 9815-0130 Manual, NW40, 120 V 9815-0131 Pneumatic, NW40, 120V 9815-0230 Manual, NW40, 240V 9815-0231 Pneumatic, NW40, 240V 9820-0130 Manual, NW50, 120V 9820-0131 Pneumatic, NW50, 120V 9820-0230 Manual, NW50, 240V 9820-0231 Pneumatic, NW50, 240V 1 105 105°C 150 150°C (Default) 0 Base Controller (Fixed Setpoint) 1 Controller w/ Display Module 2 Controller w/ Comm. Module 3 Controller w/...

Open the catalog to page 3
Heated Ball Valves - 4

Series 46 Ordering Information Global Headquarters 2 Tech Drive, Suite 201 Andover, MA 01810-2449 Tel: 978.645.5500 Tel: 800.227.8766 (in USA) Web: www.mksinst.com Vacuum Technology HPS® Products 5330 Sterling Drive Boulder, CO 80301 Tel: 303.449.9861 Tel: 800.345.1967 (in USA) Series 46 Ball Valve Heaters 120V Heaters No LTA With LTA Part Number Price Part Number Price Series 46 Ball Valve Heater, Manual, NW 40, 105°C Series 46 Ball Valve Heater, Manual, NW 40, 150°C Series 46 Ball Valve Heater, Manual, NW 50, 105°C Series 46 Ball Valve Heater, Manual, NW 50, 150°C Series 46 Ball Valve...

Open the catalog to page 4
