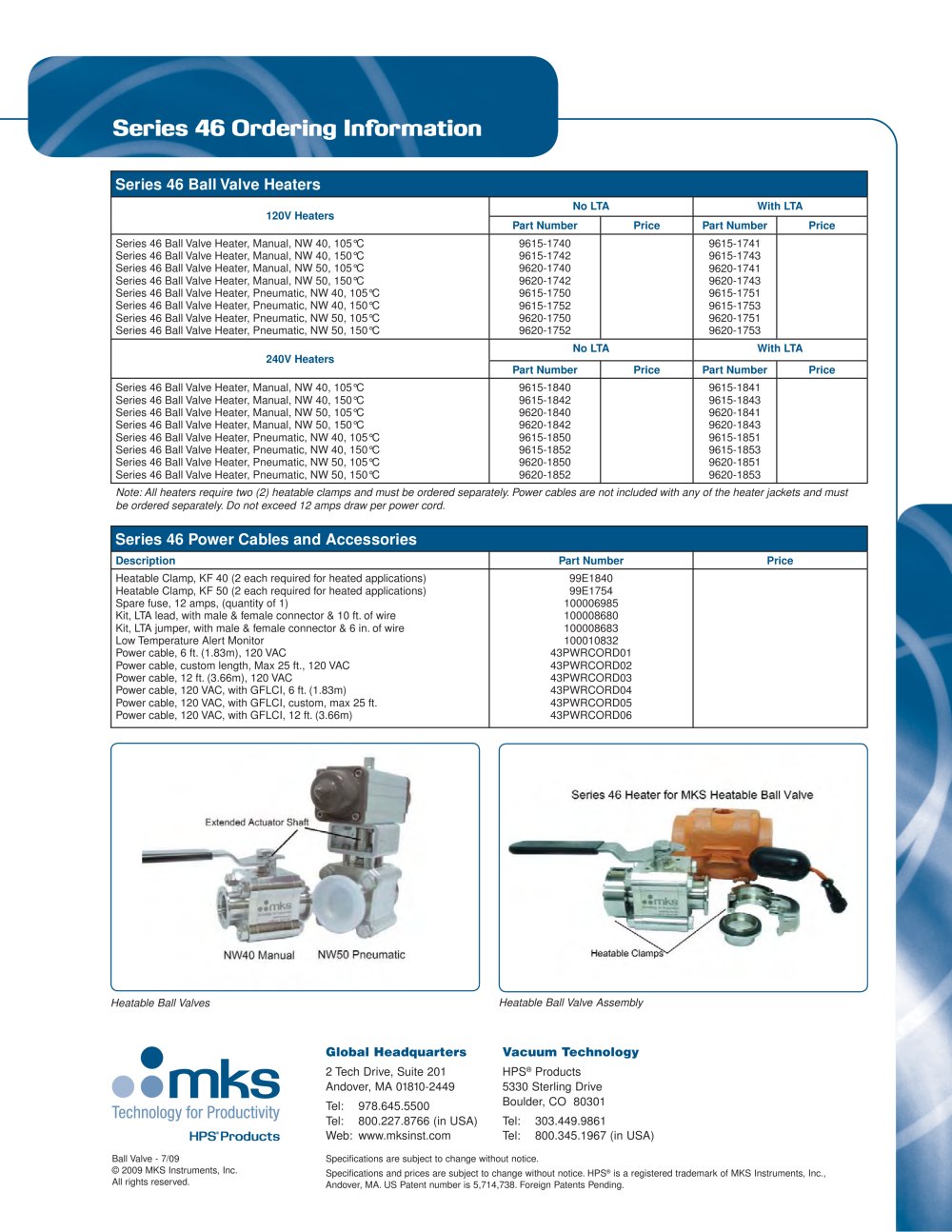

Series 46 Ordering Information Global Headquarters 2 Tech Drive, Suite 201 Andover, MA 01810-2449 Tel: 978.645.5500 Tel: 800.227.8766 (in USA) Web: www.mksinst.com Vacuum Technology HPS® Products 5330 Sterling Drive Boulder, CO 80301 Tel: 303.449.9861 Tel: 800.345.1967 (in USA) Series 46 Ball Valve Heaters 120V Heaters No LTA With LTA Part Number Price Part Number Price Series 46 Ball Valve Heater, Manual, NW 40, 105°C Series 46 Ball Valve Heater, Manual, NW 40, 150°C Series 46 Ball Valve Heater, Manual, NW 50, 105°C Series 46 Ball Valve Heater, Manual, NW 50, 150°C Series 46 Ball Valve Heater, Pneumatic, NW 40, 105°C Series 46 Ball Valve Heater, Pneumatic, NW 40, 150°C Series 46 Ball Valve Heater, Pneumatic, NW 50, 105°C Series 46 Ball Valve Heater, Pneumatic, NW 50, 150°C 9615-1740 9615-1742 9620-1740 9620-1742 9615-1750 9615-1752 9620-1750 9620-1752 9615-1741 9615-1743 9620-1741 9620-1743 9615-1751 9615-1753 9620-1751 9620-1753 240V Heaters No LTA With LTA Part Number Price Part Number Price Series 46 Ball Valve Heater, Manual, NW 40, 105°C Series 46 Ball Valve Heater, Manual, NW 40, 150°C Series 46 Ball Valve Heater, Manual, NW 50, 105°C Series 46 Ball Valve Heater, Manual, NW 50, 150°C Series 46 Ball Valve Heater, Pneumatic, NW 40, 105°C Series 46 Ball Valve Heater, Pneumatic, NW 40, 150°C Series 46 Ball Valve Heater, Pneumatic, NW 50, 105°C Series 46 Ball Valve Heater, Pneumatic, NW 50, 150°C 9615-1840 9615-1842 9620-1840 9620-1842 9615-1850 9615-1852 9620-1850 9620-1852 9615-1841 9615-1843 9620-1841 9620-1843 9615-1851 9615-1853 9620-1851 9620-1853 Note: All heaters require two (2) heatable clamps and must be ordered separately. Power cables are not included with any of the heater jackets and must be ordered separately. Do not exceed 12 amps draw per power cord. Series 46 Power Cables and Accessories Description Part Number Price Heatable Clamp, KF 40 (2 each required for heated applications) Heatable Clamp, KF 50 (2 each required for heated applications) Spare fuse, 12 amps, (quantity of 1) Kit, LTA lead, with male & female connector & 10 ft. of wire Kit, LTA jumper, with male & female connector & 6 in. of wire Low Temperature Alert Monitor Power cable, 6 ft. (1.83m), 120 VAC Power cable, custom length, Max 25 ft., 120 VAC Power cable, 12 ft. (3.66m), 120 VAC Power cable, 120 VAC, with GFLCI, 6 ft. (1.83m) Power cable, 120 VAC, with GFLCI, custom, max 25 ft. Power cable, 120 VAC, with GFLCI, 12 ft. (3.66m) 99E1840 99E1754 100006985 100008680 100008683 100010832 43PWRCORD01 43PWRCORD02 43PWRCORD03 43PWRCORD04 43PWRCORD05 43PWRCORD06 Ball Valve - 7/09 © 2009 MKS Instruments, Inc. All rights reserved. Specifi cations are subject to change without notice. Specifi cations and prices are subject to change without notice. HPS® is a registered trademark of MKS Instruments, Inc., Andover, MA. US Patent number is 5,714,738. Foreign Patents Pending. Heatable Ball Valves Heatable Ball Valve Assembly
