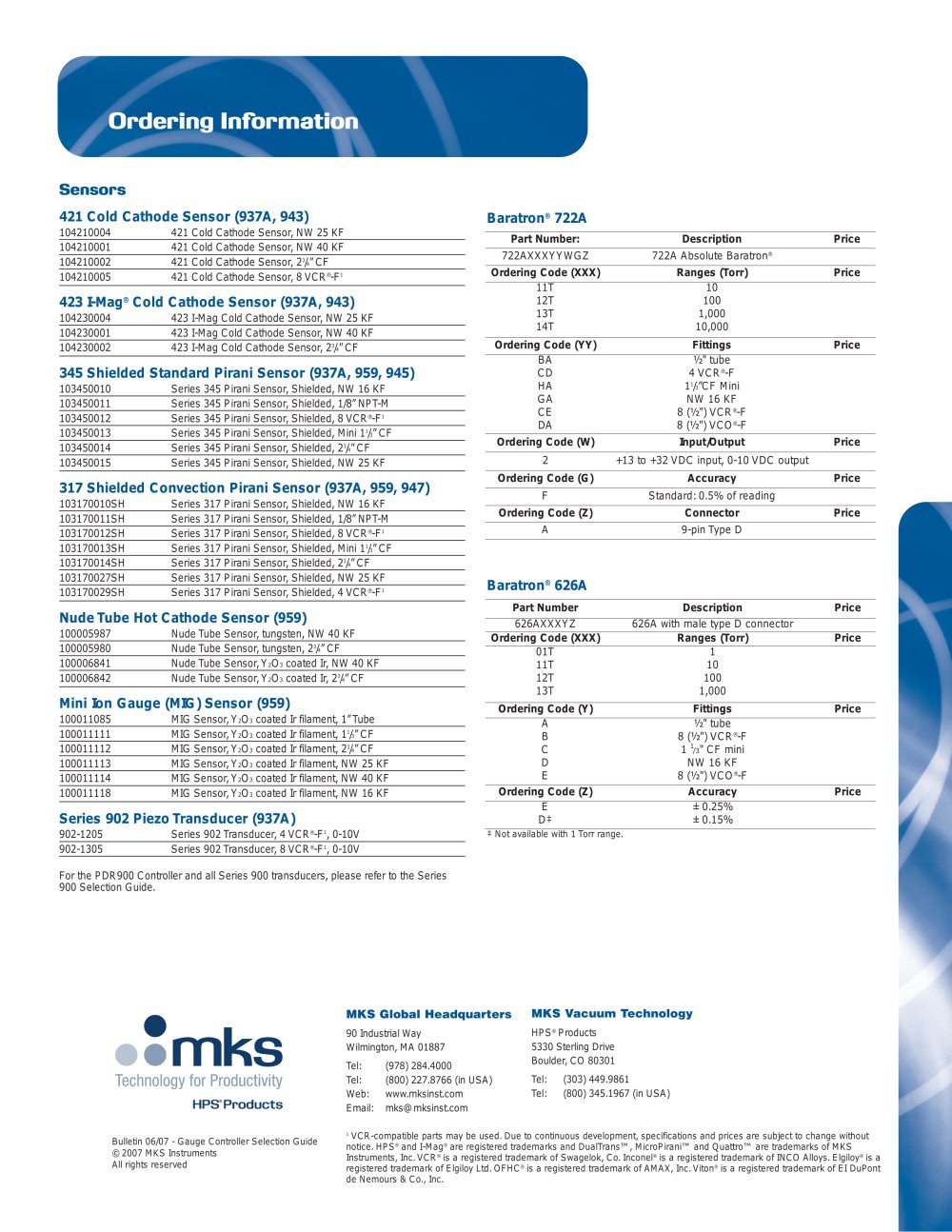

Bulletin 06/07 - Gauge Controller Selection Guide © 2007 MKS Instruments All rights reserved MKS Global Headquarters 90 Industrial Way Wilmington, MA 01887 Tel: (978) 284.4000 Tel: (800) 227.8766 (in USA) Web: www.mksinst.com Email: mks@mksinst.com MKS Vacuum Technology HPS® Products 5330 Sterling Drive Boulder, CO 80301 Tel: (303) 449.9861 Tel: (800) 345.1967 (in USA) 1 VCR-compatible parts may be used. Due to continuous development, specifications and prices are subject to change without notice. HPS® and I-Mag® are registered trademarks and DualTrans™, MicroPirani™ and Quattro™ are trademarks of MKS Instruments, Inc. VCR® is a registered trademark of Swagelok, Co. Inconel® is a registered trademark of INCO Alloys. Elgiloy® is a registered trademark of Elgiloy Ltd. OFHC® is a registered trademark of AMAX, Inc. Viton® is a registered trademark of EI DuPont de Nemours & Co., Inc. Ordering Information Sensors 421 Cold Cathode Sensor (937A, 943) 104210004 421 Cold Cathode Sensor, NW 25 KF 104210001 421 Cold Cathode Sensor, NW 40 KF 104210002 421 Cold Cathode Sensor, 23/4” CF 104210005 421 Cold Cathode Sensor, 8 VCR®-F1 423 I-Mag® Cold Cathode Sensor (937A, 943) 104230004 423 I-Mag Cold Cathode Sensor, NW 25 KF 104230001 423 I-Mag Cold Cathode Sensor, NW 40 KF 104230002 423 I-Mag Cold Cathode Sensor, 23/4” CF 345 Shielded Standard Pirani Sensor (937A, 959, 945) 103450010 Series 345 Pirani Sensor, Shielded, NW 16 KF 103450011 Series 345 Pirani Sensor, Shielded, 1/8” NPT-M 103450012 Series 345 Pirani Sensor, Shielded, 8 VCR®-F1 103450013 Series 345 Pirani Sensor, Shielded, Mini 11/3” CF 103450014 Series 345 Pirani Sensor, Shielded, 23/4” CF 103450015 Series 345 Pirani Sensor, Shielded, NW 25 KF 317 Shielded Convection Pirani Sensor (937A, 959, 947) 103170010SH Series 317 Pirani Sensor, Shielded, NW 16 KF 103170011SH Series 317 Pirani Sensor, Shielded, 1/8” NPT-M 103170012SH Series 317 Pirani Sensor, Shielded, 8 VCR®-F1 103170013SH Series 317 Pirani Sensor, Shielded, Mini 11/3” CF 103170014SH Series 317 Pirani Sensor, Shielded, 23/4” CF 103170027SH Series 317 Pirani Sensor, Shielded, NW 25 KF 103170029SH Series 317 Pirani Sensor, Shielded, 4 VCR®-F1 Nude Tube Hot Cathode Sensor (959) 100005987 Nude Tube Sensor, tungsten, NW 40 KF 100005980 Nude Tube Sensor, tungsten, 23/4” CF 100006841 Nude Tube Sensor, Y2O3 coated Ir, NW 40 KF 100006842 Nude Tube Sensor, Y2O3 coated Ir, 23/4” CF Mini Ion Gauge (MIG) Sensor (959) 100011085 MIG Sensor, Y2O3 coated Ir filament, 1” Tube 100011111 MIG Sensor, Y2O3 coated Ir filament, 11/3” CF 100011112 MIG Sensor, Y2O3 coated Ir filament, 23/4” CF 100011113 MIG Sensor, Y2O3 coated Ir filament, NW 25 KF 100011114 MIG Sensor, Y2O3 coated Ir filament, NW 40 KF 100011118 MIG Sensor, Y2O3 coated Ir filament, NW 16 KF Series 902 Piezo Transducer (937A) 902-1205 Series 902 Transducer, 4 VCR®-F1, 0-10V 902-1305 Series 902 Transducer, 8 VCR®-F1, 0-10V For the PDR900 Controller and all Series 900 transducers, please refer to the Series 900 Selection Guide. Baratron® 722A Part Number: Description Price 722AXXXYYWGZ 722A Absolute Baratron® Ordering Code (XXX) Ranges (Torr) Price 11T 12T 13T 14T 10 100 1,000 10,000 Ordering Code (YY) Fittings Price BA CD HA GA CE DA ½" tube 4 VCR®-F 11/3”CF Mini NW 16 KF 8 (½") VCR®-F 8 (½") VCO®-F Ordering Code (W) Input/Output Price 2 +13 to +32 VDC input, 0-10 VDC output Ordering Code (G) Accuracy Price F Standard: 0.5% of reading Ordering Code (Z) Connector Price A 9-pin Type D Baratron® 626A Part Number Description Price 626AXXXYZ 626A with male type D connector Ordering Code (XXX) Ranges (Torr) Price 01T 11T 12T 13T 1 10 100 1,000 Ordering Code (Y) Fittings Price A B C D E ½" tube 8 (½") VCR®-F 1 1 /3" CF mini NW 16 KF 8 (½") VCO®-F Ordering Code (Z) Accuracy Price E D‡ ± 0.25% ± 0.15% ‡ Not available with 1 Torr range.
