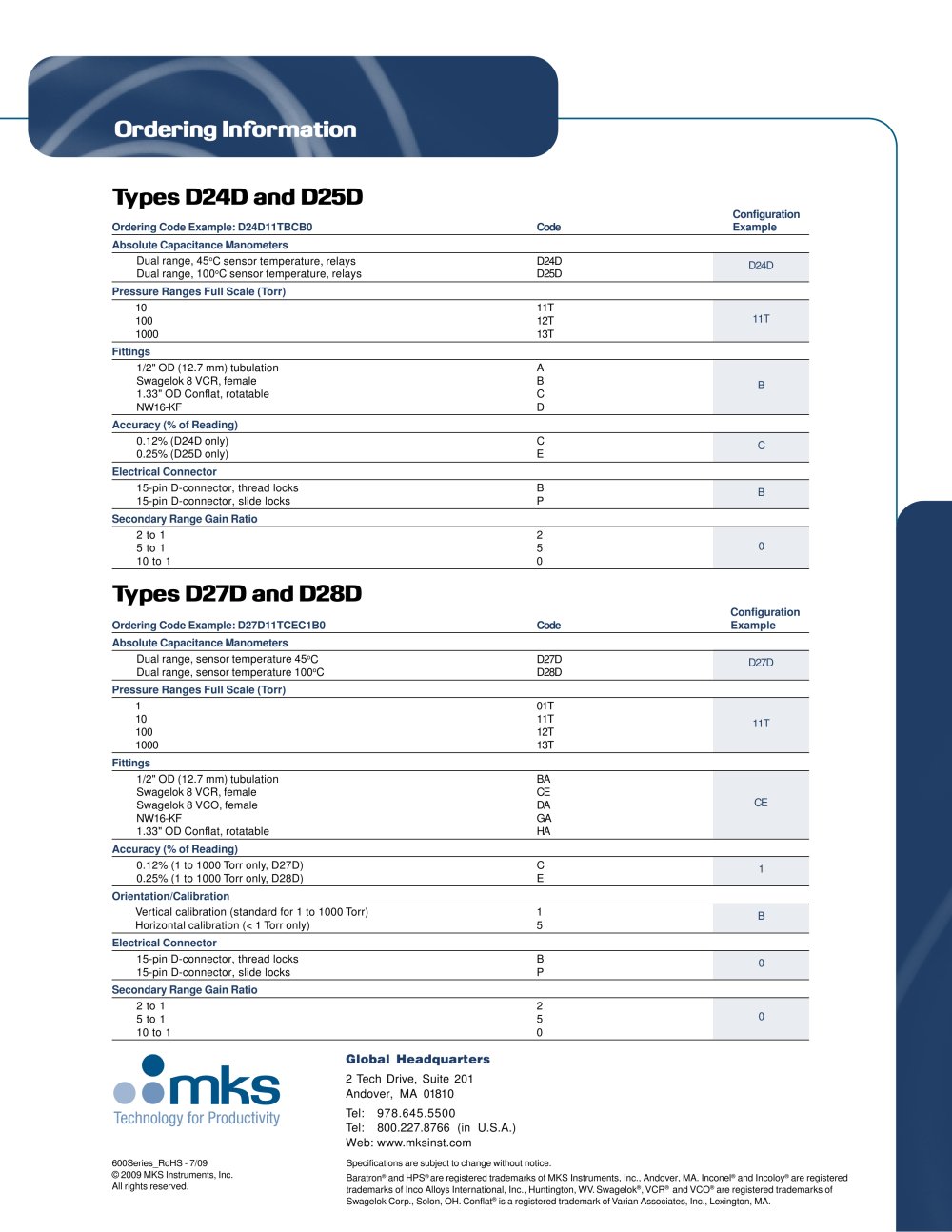

Ordering Information 600Series_RoHS - 7/09 © 2009 MKS Instruments, Inc. All rights reserved. Specifications are subject to change without notice. Baratron® and HPS® are registered trademarks of MKS Instruments, Inc., Andover, MA. Inconel® and Incoloy® are registered trademarks of Inco Alloys International, Inc., Huntington, WV. Swagelok®, VCR® and VCO® are registered trademarks of Swagelok Corp., Solon, OH. Conflat® is a registered trademark of Varian Associates, Inc., Lexington, MA. Global Headquarters 2 Tech Drive, Suite 201 Andover, MA 01810 Tel: 978.645.5500 Tel: 800.227.8766 (in U.S.A.) Web: www.mksinst.com D24D B 0 B 11T C Types D24D and D25D Configuration Ordering Code Example: D24D11TBCB0 Code Example Absolute Capacitance Manometers Dual range, 45oC sensor temperature, relays D24D Dual range, 100oC sensor temperature, relays D25D Pressure Ranges Full Scale (Torr) 10 11T 100 12T 1000 13T Fittings 1/2" OD (12.7 mm) tubulation A Swagelok 8 VCR, female B 1.33" OD Conflat, rotatable C NW16-KF D Accuracy (% of Reading) 0.12% (D24D only) C 0.25% (D25D only) E Electrical Connector 15-pin D-connector, thread locks B 15-pin D-connector, slide locks P Secondary Range Gain Ratio 2 to 1 2 5 to 1 5 10 to 1 0 D27D B 0 CE 11T 1 Types D27D and D28D 0 Configuration Ordering Code Example: D27D11TCEC1B0 Code Example Absolute Capacitance Manometers Dual range, sensor temperature 45oC D27D Dual range, sensor temperature 100oC D28D Pressure Ranges Full Scale (Torr) 1 01T 10 11T 100 12T 1000 13T Fittings 1/2" OD (12.7 mm) tubulation BA Swagelok 8 VCR, female CE Swagelok 8 VCO, female DA NW16-KF GA 1.33" OD Conflat, rotatable HA Accuracy (% of Reading) 0.12% (1 to 1000 Torr only, D27D) C 0.25% (1 to 1000 Torr only, D28D) E Orientation/Calibration Vertical calibration (standard for 1 to 1000 Torr) 1 Horizontal calibration (< 1 Torr only) 5 Electrical Connector 15-pin D-connector, thread locks B 15-pin D-connector, slide locks P Secondary Range Gain Ratio 2 to 1 2 5 to 1 5 10 to 1 0
