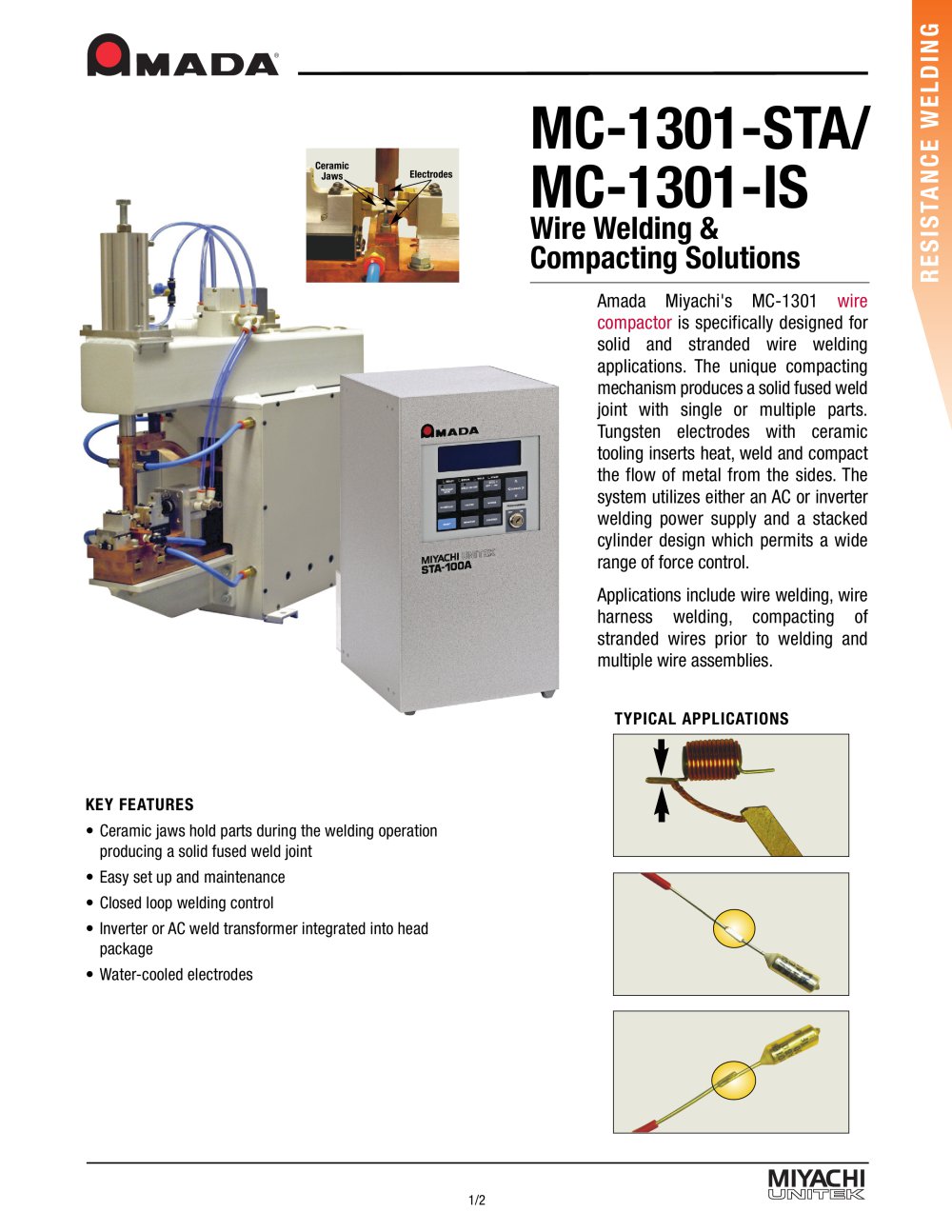

Wire Welding & Compacting Solutions Amada Miyachi's MC-1301 wire compactor is specifically designed for solid and stranded wire welding applications. The unique compacting mechanism produces a solid fused weld joint with single or multiple parts. Tungsten electrodes with ceramic tooling inserts heat, weld and compact the flow of metal from the sides. The system utilizes either an AC or inverter welding power supply and a stacked cylinder design which permits a wide range of force control. Applications include wire welding, wire harness welding, compacting of stranded wires prior to welding and multiple wire assemblies. TYPICAL APPLICATIONS KEY FEATURES • Ceramic jaws hold parts during the welding operation producing a solid fused weld joint • Easy set up and maintenance • Closed loop welding control • Inverter or AC weld transformer integrated into head package • Water-cooled electrodes RESISTANCE WELDING Ceramic Jaws

RESISTANCE WELDING TECHNICAL SPECIFICATIONS MC-1301-STA & MC-1301-IS Dual cylinder, stacked, low friction cup type, no lube 38 lb (17 kg) 156 lb (71 kg) 76 lb (34 kg) 312 lb (142 kg) 1.2 lb (40 kg) Electrode air cylinder type Force, cylinder 1, at 20 psi Force, cylinder 1, at 80 psi Force, both cylinders, at 20 psi Force, both cylinders, at 80 psi Electrode stroke Standard electrode sizes Welding System MC-1301-STA STA-100A AC weld control with air-cooled 300 amp SCR IT-1040-3 40k VA at 50% duty cycle Secondary RMS, primary RMS, voltage RMS, power RMS, primary limit, fixed pulse Current, optional...
