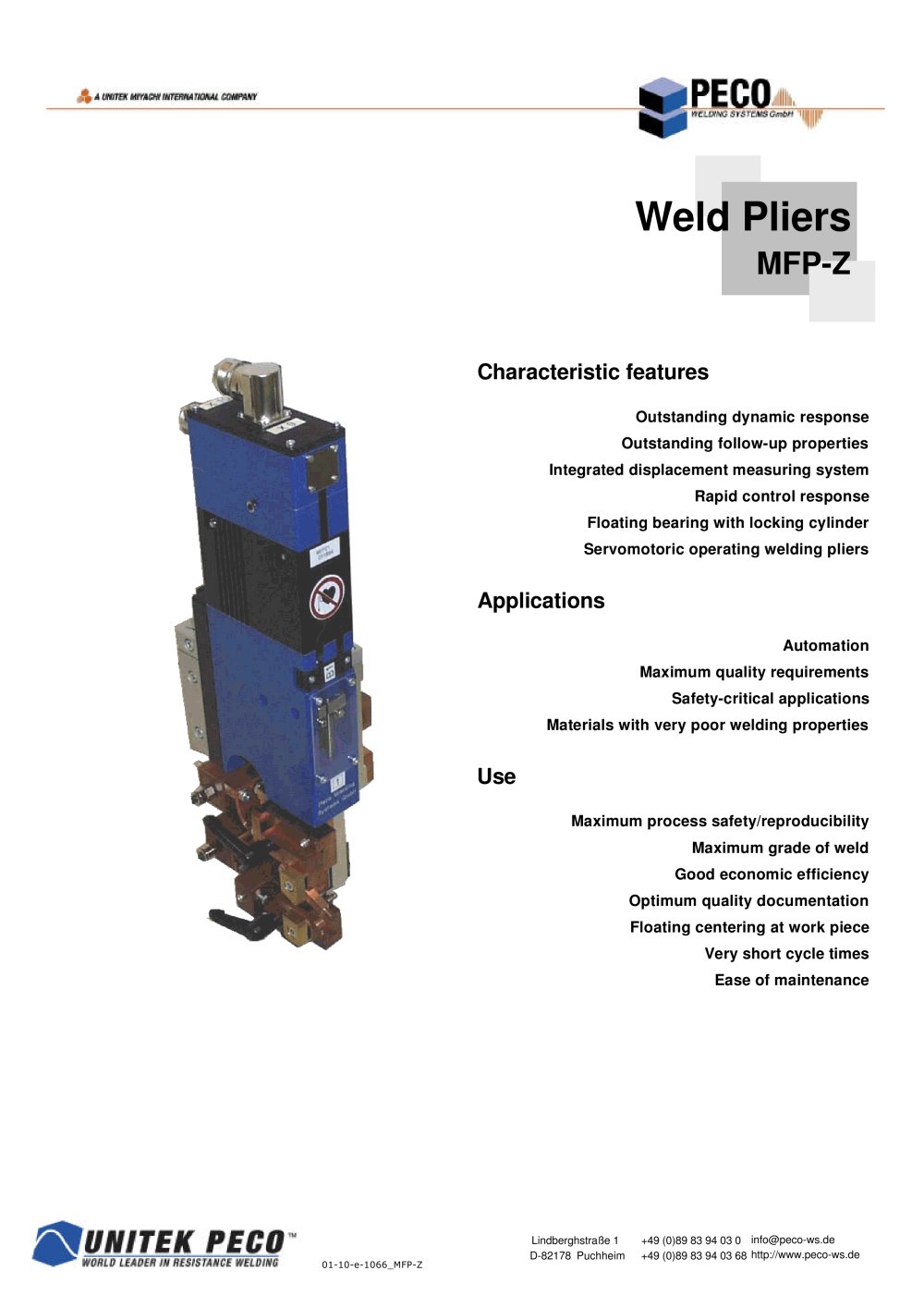

MFP-Z Weld Pliers Lindberghstraße 1 Puchheim +49 (0)89 83 94 03 0 +49 (0)89 83 94 03 68 [email protected] D-82178 http://www.peco-ws.de Characteristic features Outstanding dynamic response Outstanding follow-up properties Integrated displacement measuring system Rapid control response Floating bearing with locking cylinder Servomotoric operating welding pliers Applications Automation Maximum quality requirements Safety-critical applications Materials with very poor welding properties Use Maximum process safety/reproducibility Maximum grade of weld Good economic efficiency Optimum quality documentation Floating centering at work piece Very short cycle times Ease of maintenance 01-10-e-1066_MFP-Z

Technical Data MFP1-Z General Part Number 865.13 001 Execution Welding tongs with float mounting with quick-change system for electrodes For horizontal and vertical installation For horizontal and vertical installation Welding tongs with float mounting with quick-change system for electrodes Mechanical Data Weld Force Range Max. 200 N Control of Closing Stroke Servomotor-driven Control of Welding Stroke Servomotor-driven Weld Force Adjustment Via NC control Electrode Holder Quick-change holder Electrode Shape Square electrodes, 7.5 x 7.5 mm Weld Cable 4 x 95 mm2, length: 700 mm Weight Approx....

Technical Data MFP2-Z General Part Number 865.14 001 Execution For horizontal and vertical mounting Welding tongs with float mounting and quick-change system for electrodes Welding tongs with float mounting and quick-change system for electrodes For horizontal and vertical mounting Mechanical Data Weld Force Range Max. 600 N Control of Closing Stroke Servomotor-driven Control of Welding Stroke Servomotor-driven Weld Force Adjustment Via NC control Electrode Holder Quick-change holder Electrode Shape Square electrodes, square electrodes, 7.5 x 7.5 mm Weld Cable 4 x 95 mm2, length: 700 mm Operation...
