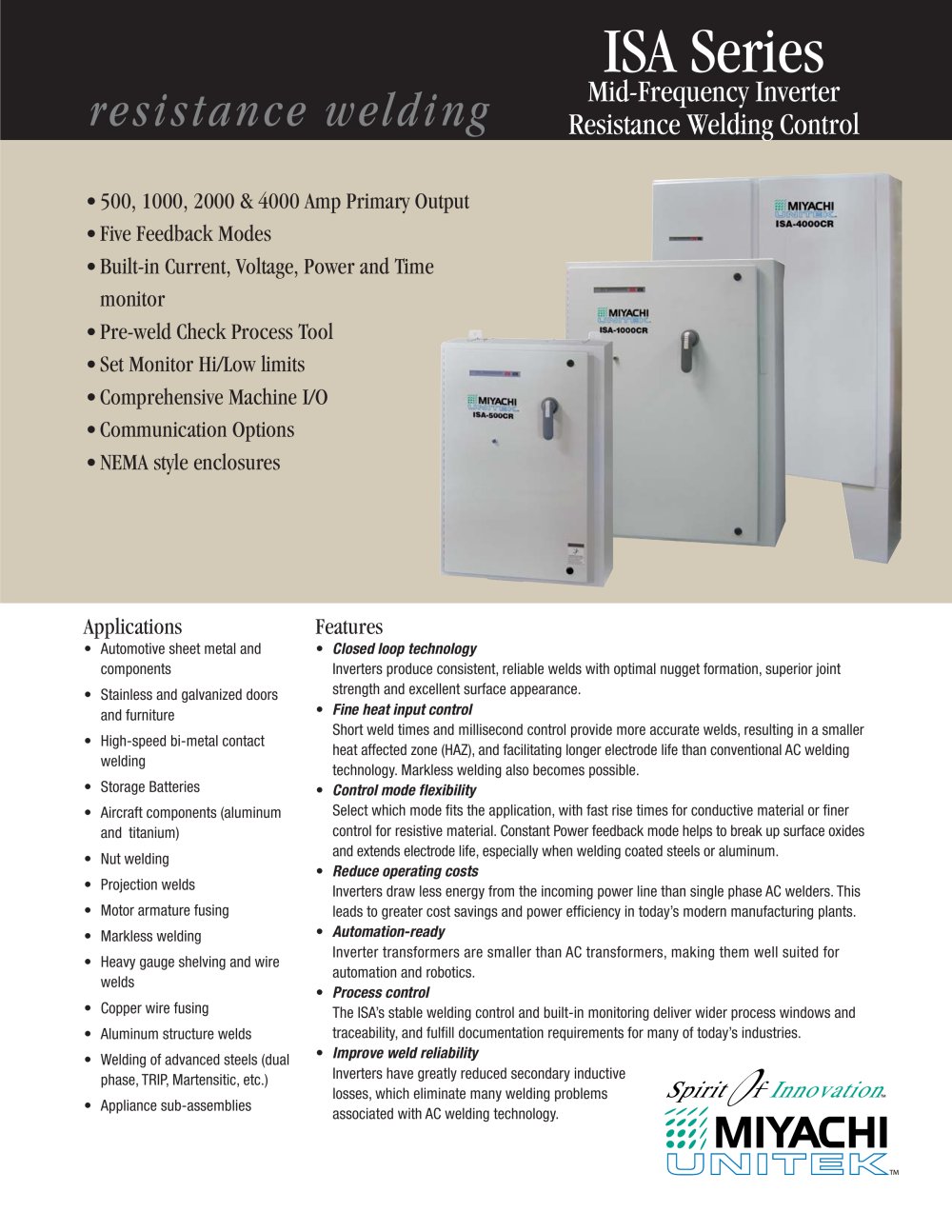

Mid-Frequency Inverter Resistance Welding Power Supplies - Miyachi - #1

Text version of the page

Applications • Automotive sheet metal and components • Stainless and galvanized doors and furniture • High-speed bi-metal contact welding • Storage Batteries • Aircraft components (aluminum and titanium) • Nut welding • Projection welds • Motor armature fusing • Markless welding • Heavy gauge shelving and wire welds • Copper wire fusing • Aluminum structure welds • Welding of advanced steels (dual phase, TRIP, Martensitic, etc.) • Appliance sub-assemblies Features • Closed loop technology Inverters produce consistent, reliable welds with optimal nugget formation, superior joint strength and excellent surface appearance. • Fine heat input control Short weld times and millisecond control provide more accurate welds, resulting in a smaller heat affected zone (HAZ), and facilitating longer electrode life than conventional AC welding technology. Markless welding also becomes possible. • Control mode flexibility Select which mode fits the application, with fast rise times for conductive material or finer control for resistive material. Constant Power feedback mode helps to break up surface oxides and extends electrode life, especially when welding coated steels or aluminum. • Reduce operating costs Inverters draw less energy from the incoming power line than single phase AC welders. This leads to greater cost savings and power efficiency in today’s modern manufacturing plants. • Automation-ready Inverter transformers are smaller than AC transformers, making them well suited for automation and robotics. • Process control The ISA’s stable welding control and built-in monitoring deliver wider process windows and traceability, and fulfill documentation requirements for many of today’s industries. • Improve weld reliability Inverters have greatly reduced secondary inductive losses, which eliminate many welding problems associated with AC welding technology. resistance welding ISA Series Mid-Frequency Inverter Resistance Welding Control • 500, 1000, 2000 & 4000 Amp Primary Output • Five Feedback Modes • Built-in Current, Voltage, Power and Time monitor • Pre-weld Check Process Tool • Set Monitor Hi/Low limits • Comprehensive Machine I/O • Communication Options • NEMA style enclosures
