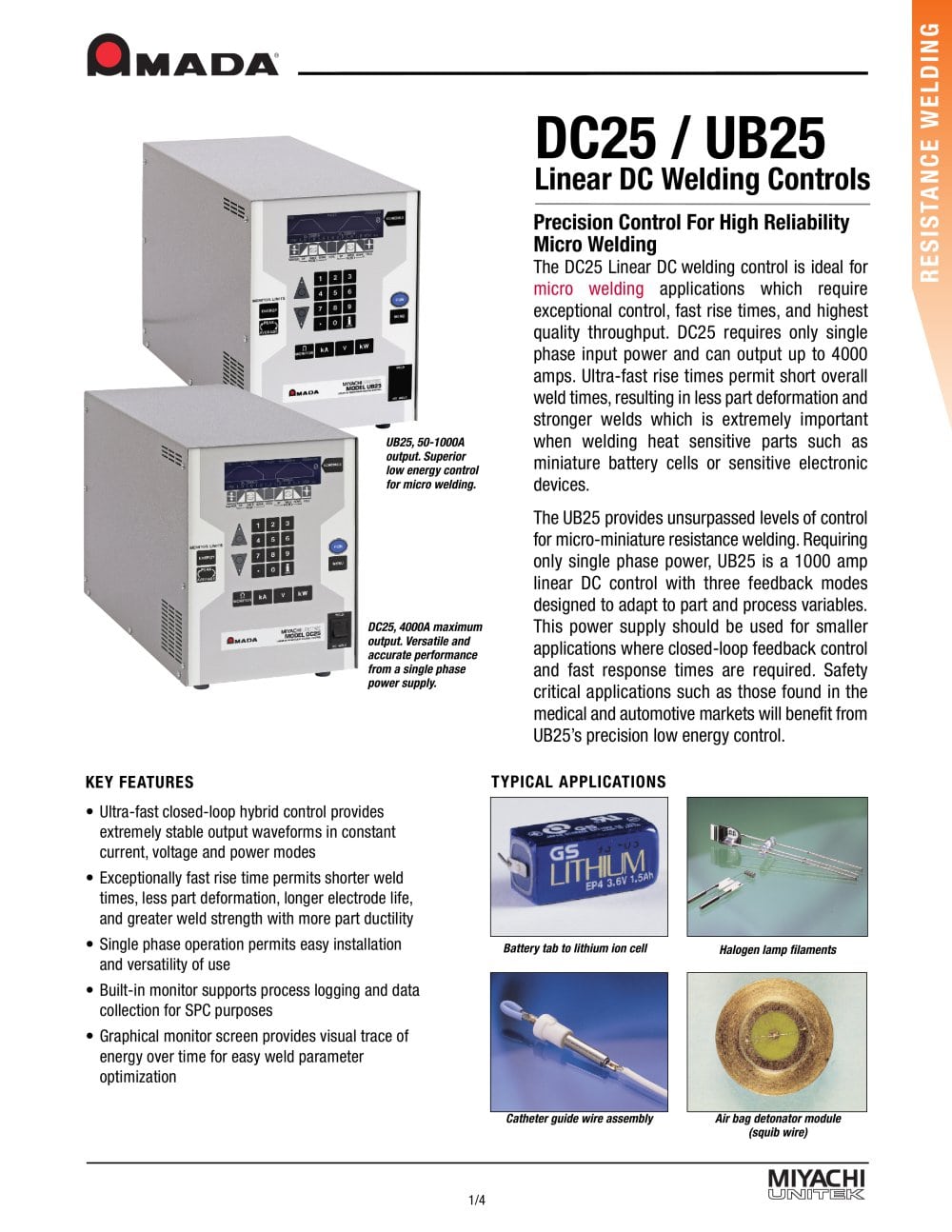

Linear DC Welding Controls Precision Control For High Reliability Micro Welding UB25, 50-1000A output. Superior low energy control for micro welding. DC25, 4000A maximum output. Versatile and accurate performance from a single phase power supply. The DC25 Linear DC welding control is ideal for micro welding applications which require exceptional control, fast rise times, and highest quality throughput. DC25 requires only single phase input power and can output up to 4000 amps. Ultra-fast rise times permit short overall weld times, resulting in less part deformation and stronger welds which is extremely important when welding heat sensitive parts such as miniature battery cells or sensitive electronic devices. The UB25 provides unsurpassed levels of control for micro-miniature resistance welding. Requiring only single phase power, UB25 is a 1000 amp linear DC control with three feedback modes designed to adapt to part and process variables. This power supply should be used for smaller applications where closed-loop feedback control and fast response times are required. Safety critical applications such as those found in the medical and automotive markets will benefit from UB25’s precision low energy control. TYPICAL APPLICATIONS KEY FEATURES • Ultra-fast closed-loop hybrid control provides extremely stable output waveforms in constant current, voltage and power modes • Exceptionally fast rise time permits shorter weld times, less part deformation, longer electrode life, and greater weld strength with more part ductility • Single phase operation permits easy installation and versatility of use Battery tab to lithium ion cell Halogen lamp filaments • Built-in monitor supports process logging and data collection for SPC purposes • Graphical monitor screen provides visual trace of energy over time for easy weld parameter optimization Catheter guide wire assembly Air bag detonator module (squib wire) RESISTANCE WELDING

INTUITIVE, EASY-TO-USE • Intuitive graphical user interface. • Dual pulse waveforms programmed in current, voltage, or power control modes • Programming times to 100 usee increments provides ultimate control • Accurate, built-in monitor displays the graphical "trace" of weld current, voltage, power and resistance, along with numerical peak and average values • Easy-to-set limits establish process window for acceptable quality • User programmable relays can be used in conjunction with visual and audible signals for operators and automation interface POWER FEEDBACK MODES: • Compensates for parts...

86A/EZ PRECISION PARALLEL GAP WELD HEAD MODEL 50 LIGHT FORCE WELD HEAD The 50 Series weld heads with either foot or air actuation provide accurate levels of precision required for welding fine ribbons and wires to substrates. The force range of the 50F is 40-1000 gram-force (0.39 - 9.8 Newtons), continuously adjustable with no overforce. Holder options for either Unitip or Unibond electrodes are available. Model 50 is normally matched with the UB25 power supply. The Model 86 weld head with either foot or patented EZ-Air® actuation provides precision control for parallel gap welding applications...

RESISTANCE WELDING TECHNICAL SPECIFICATIONS MODEL NUMBER Repetition rate Setting ranges Current Voltage Power Peak Current Voltage Power Output regulation versus line voltage variance Output regulation versus load resistance variance Output repeatability current, voltage, power ± of setting Weld period ranges First / second pulse (msec.) – ranges scale Upslope / downslope periods (msec.) – ranges scale Output accuracy FEATURES WELD HEAT PROFILE CONTROL Weld pulse control Programmable weld pulse segments Weld schedule memory Weld schedule chaining Dual pulse with independent control of current,...
